Plant, Anhydrous Caustic Pilot, 54#/HR #S583495

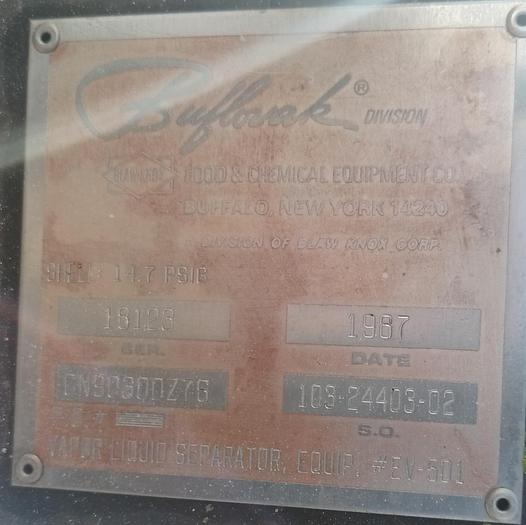

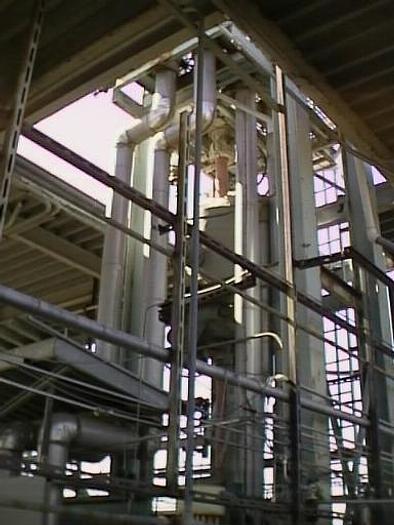

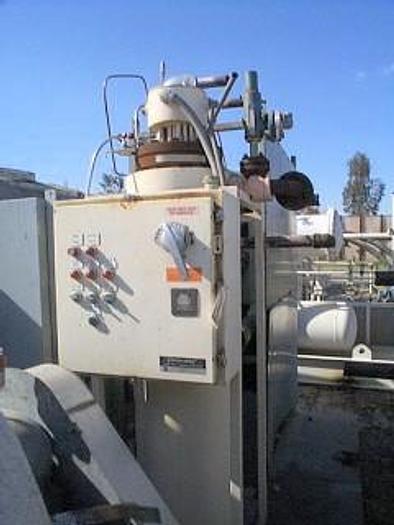

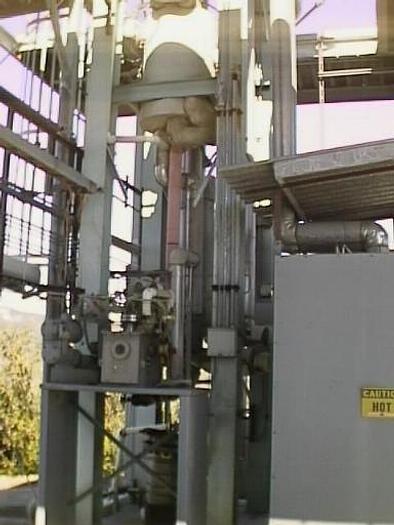

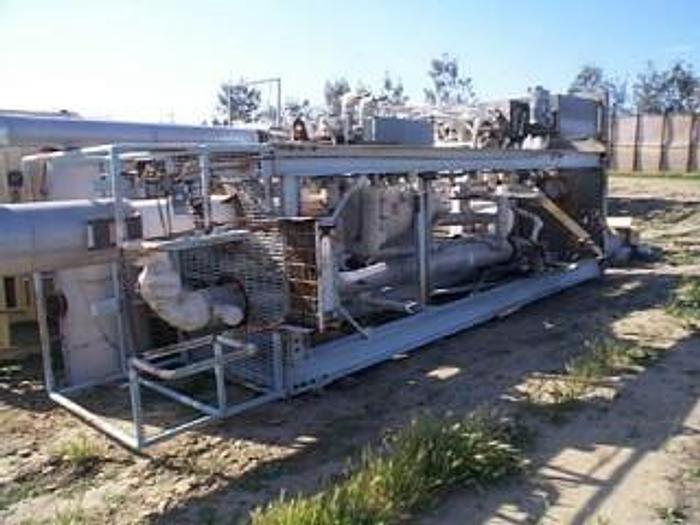

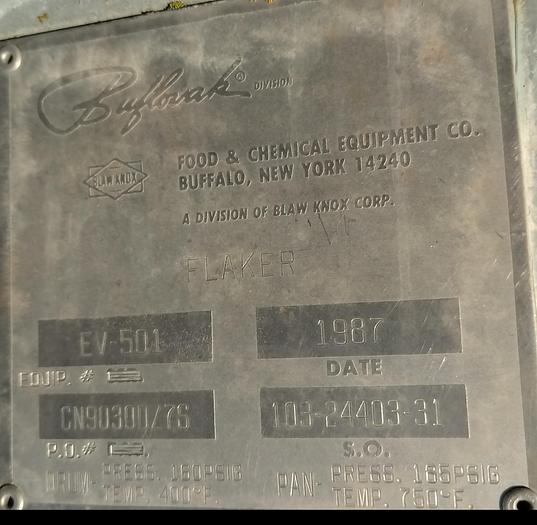

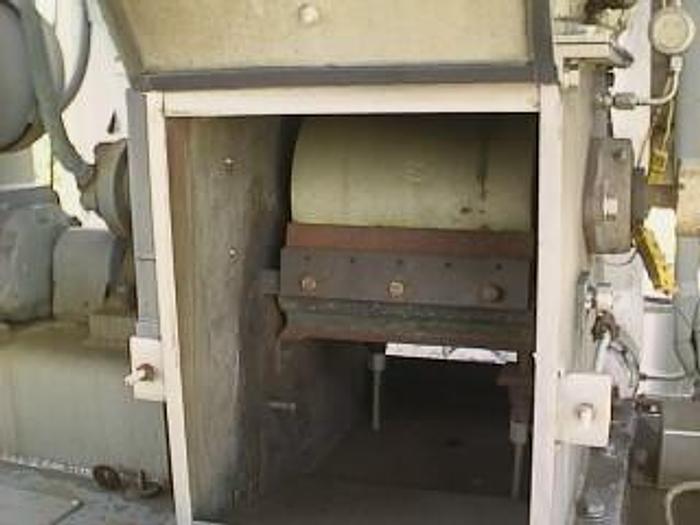

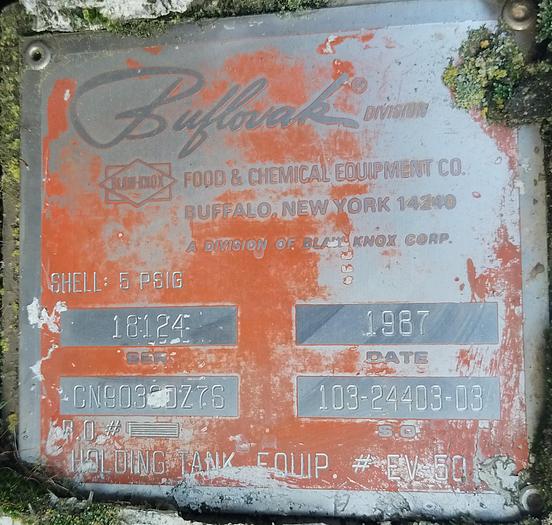

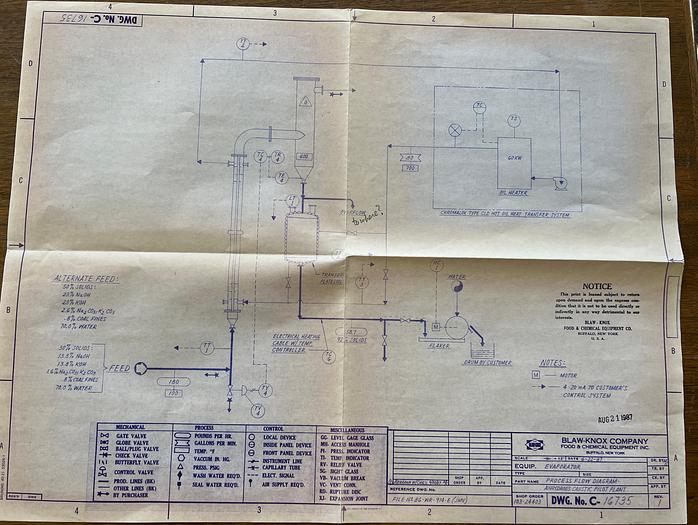

Buflovak anhydrous caustic plant evaporator / drum flaker. Complete system rated at 126 pounds per hour water evaporation, 54 pounds per hour finished caustic flakes. System includes 11.65 sq. ft. Buflovak evaporator / vapor liquid separator, type 316 stainless steel, Equipment number EV-501, serial number 18123. Shell & tube heat exchanger, shell rated for 185 PSI @ 750 degrees F., Tubes rated for 14.7 PSI, serial number 18122. System includes 60 kW Chromalox type CLO hot oil system rated to 600 degrees F, Blaw Knox single drum flaker, 6-1/2" diameter x 8" long, and holding tank, serial number 18124. System is unitized in tower assembly.
