Reactor, 1,000 Gallon, Glass Lined, 100 PSI, Jacketed, Pfaudler (2) #S731119
Reactor, 1,000 Gallon, Glass Lined, 100 PSI, Jacketed, Pfaudler (2) #S731119
Location:Chowchilla, CA
Available quantity:2
Description

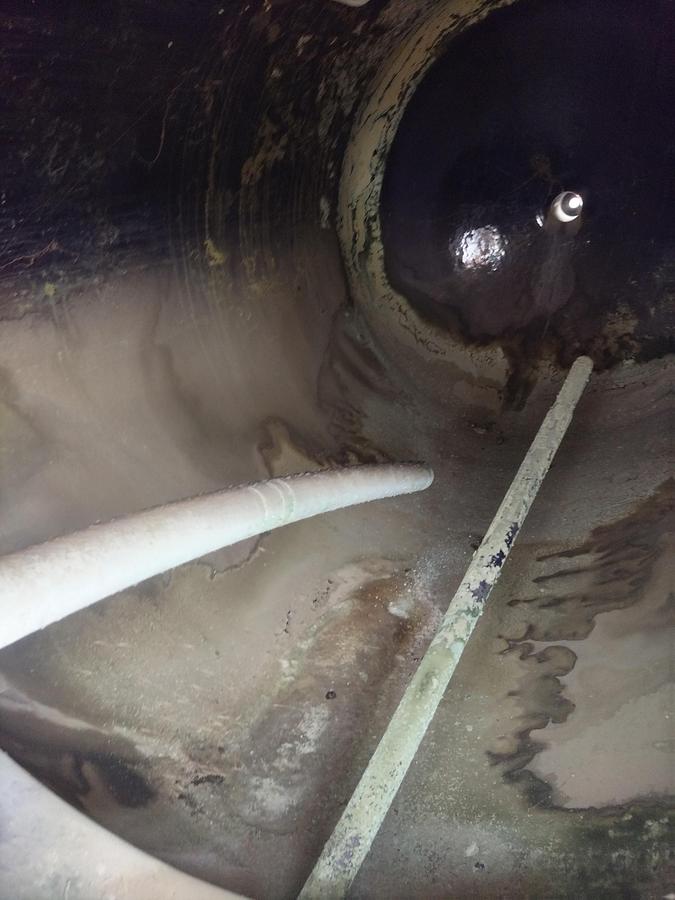

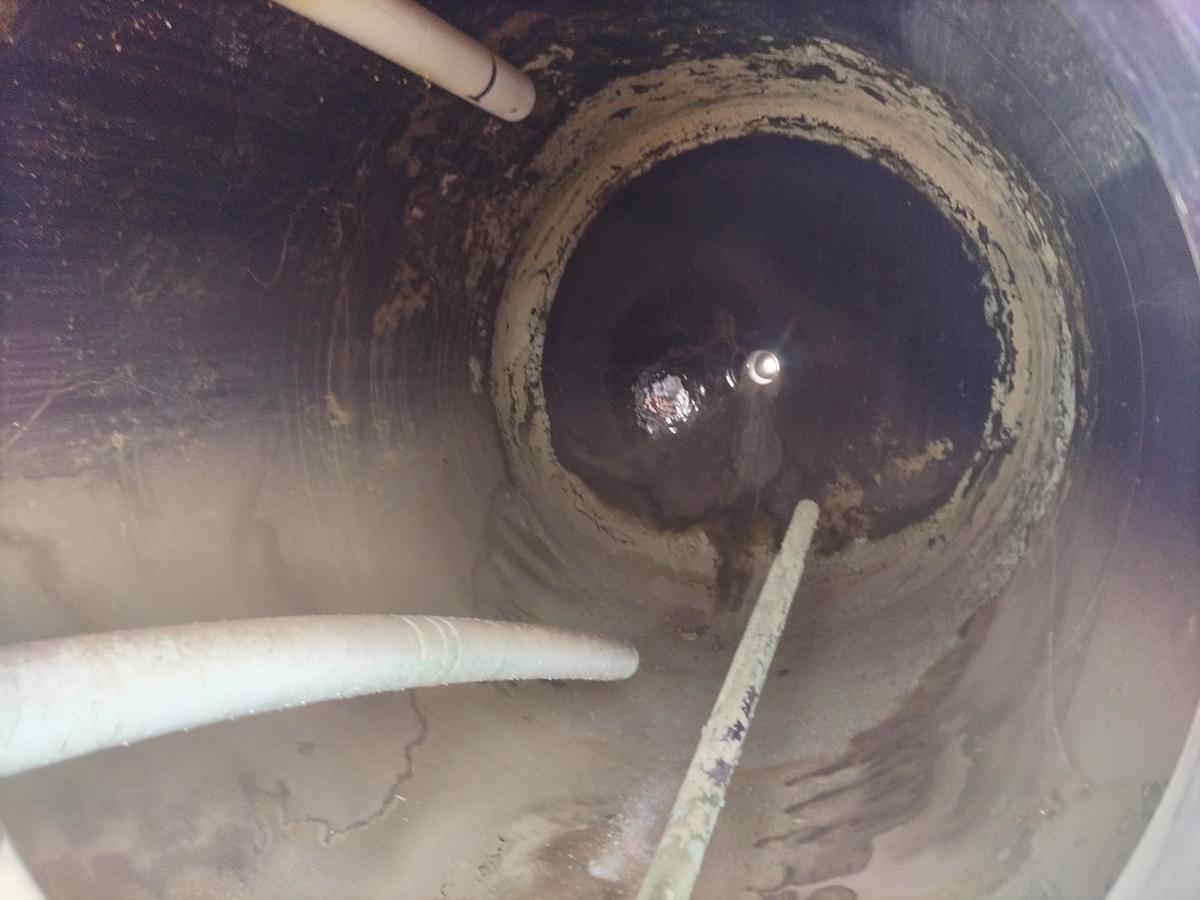

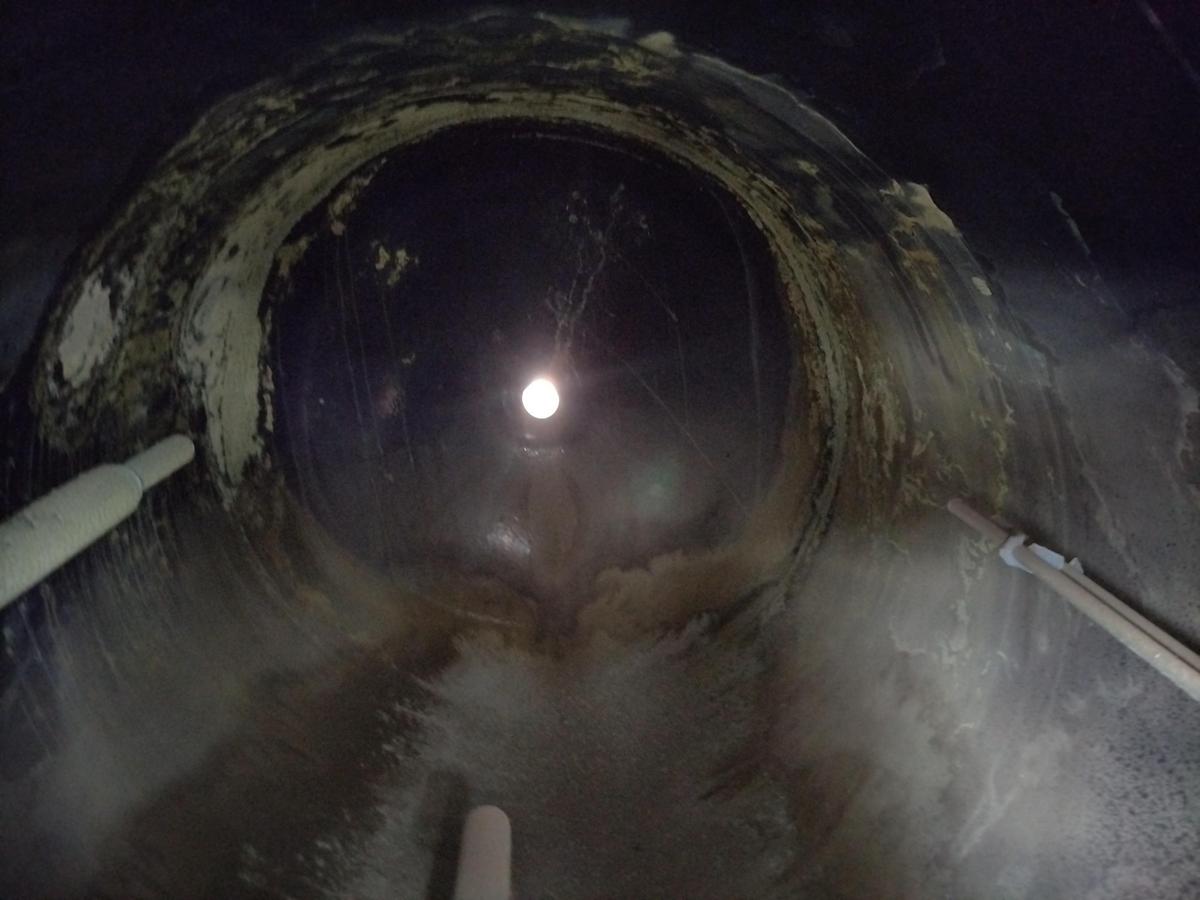

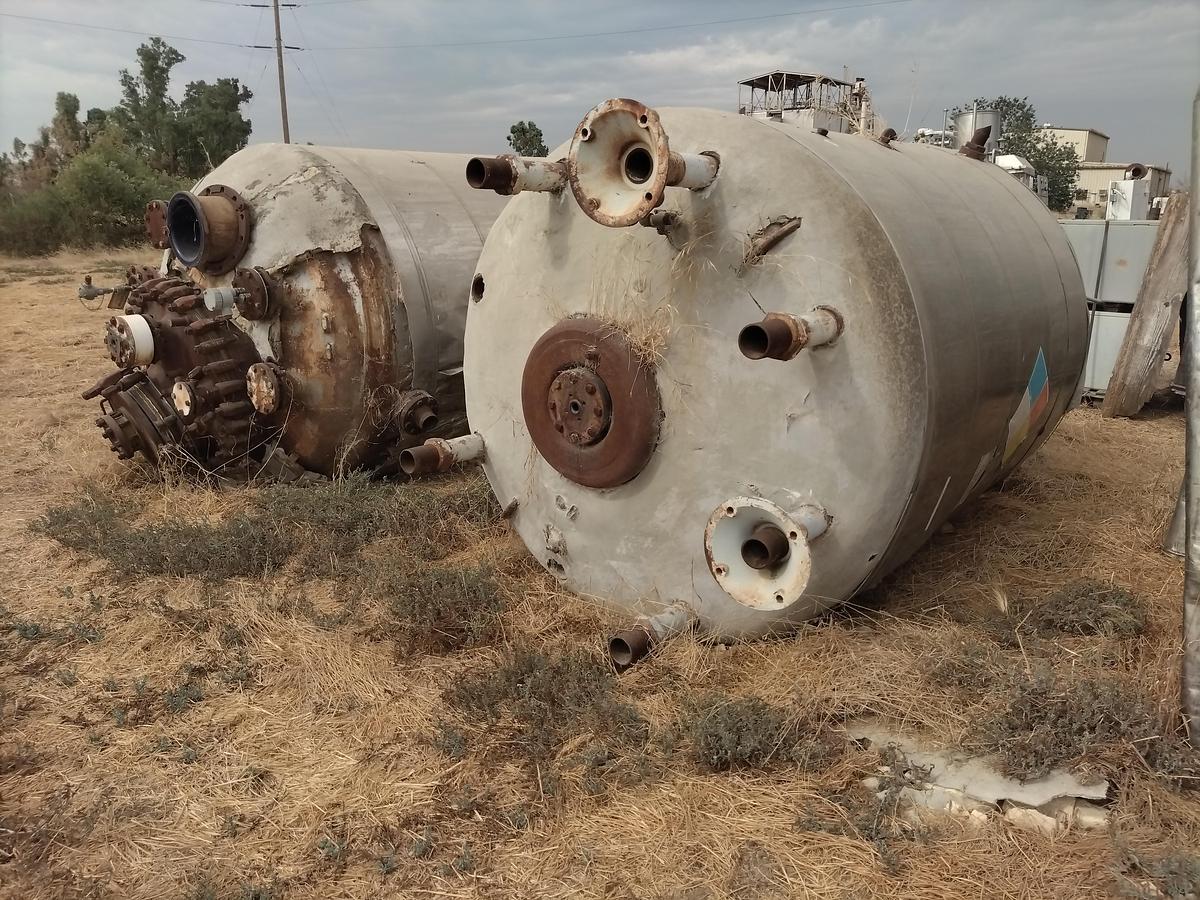

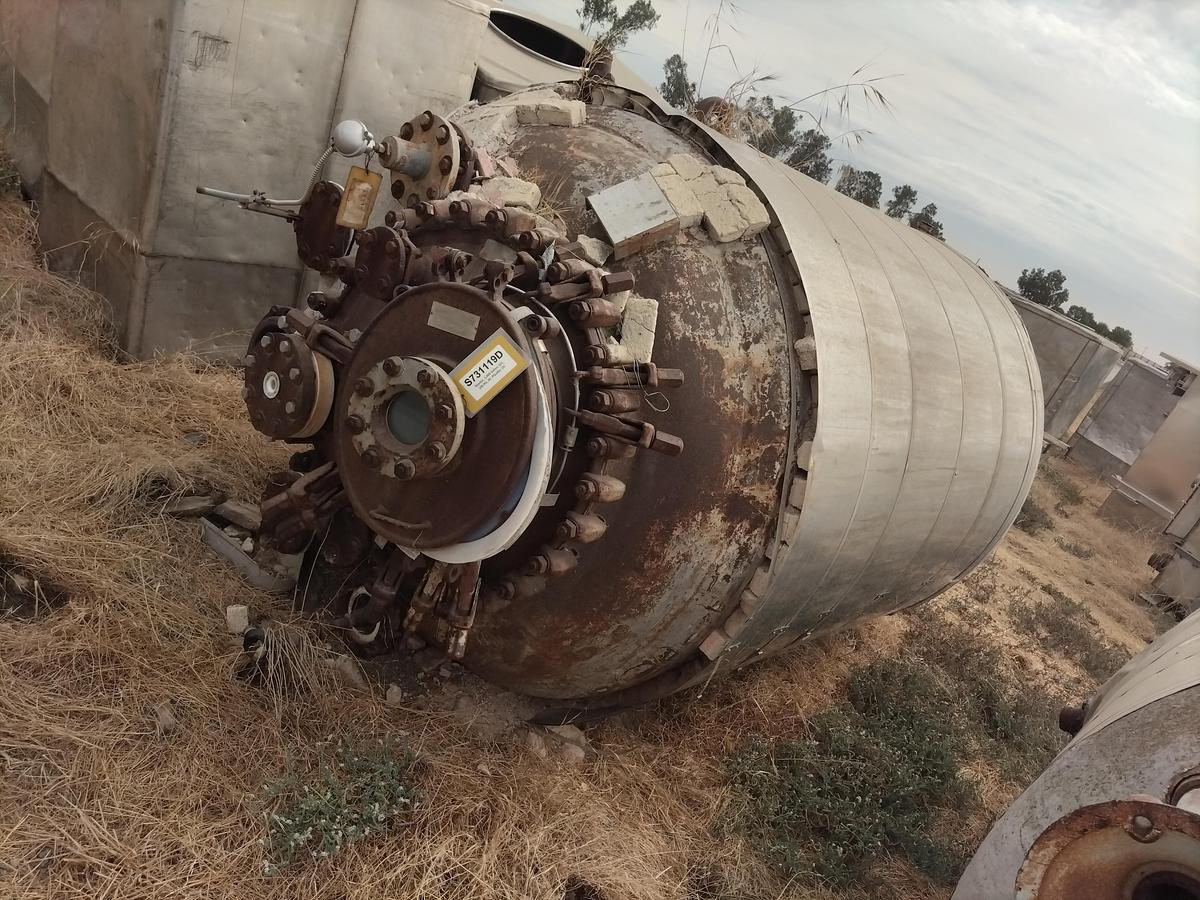

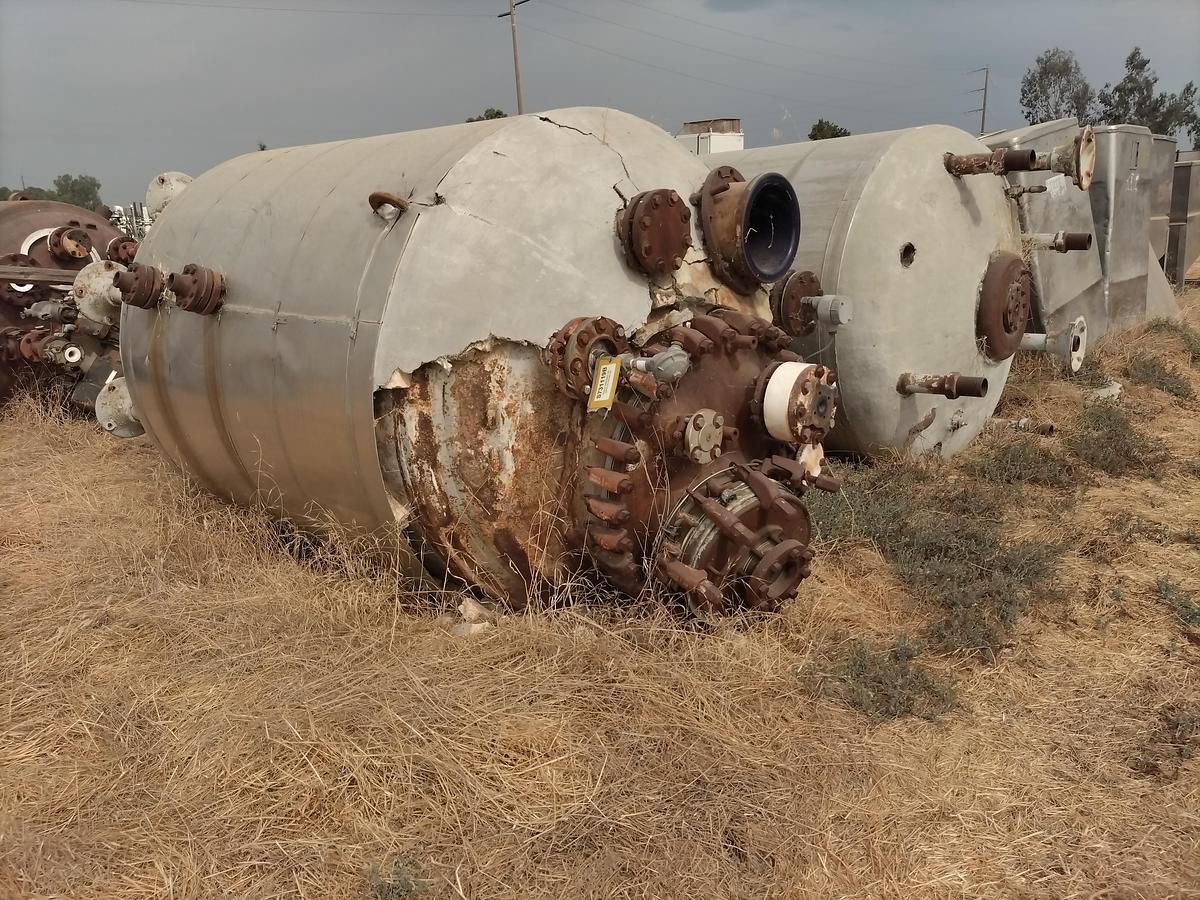

(2) Reactor, 1,000 gallon, glass-lined, manufactured by Pfaudler, 60" diameter x 5'8" straight side, welded dished top and bottom, rated for 100 PSI/FV at 525 degrees Fahrenheit, jacketed for 90 PSI at 600 degrees Fahrenheit, glass type 3615. Has 36" off-center J-clamped cover with 16" x 20" oval manway, (4) 4" top inlets which were used for probes, level sensors, etc. Unit stands on (8) 17-1/2" legs with 12" diameter foot pads. Units are all plug free. New between 1993 - 1996.
Specifications
| Stock Number | S731119 |
| Manufacturer | Pfaudler |
| Gallons | 1000 |
| Materials of Construction | Glass-Lined |
| Internal Pressure | 100 PSI / Full Vacuum @ 525º F. |
| Jacket Pressure | 90 PSI @ 600º F. |
| Basis | Each, FOB |
Additional Information
Drawings available upon request.
