Tank, 1,550 Gallon, Stainless Steel, Jacket, 50 BBL Brite Tank, #S744692
Sold
Tank, 1,550 Gallon, Stainless Steel, Jacket, 50 BBL Brite Tank, #S744692
Location:Brisbane, CA
Available quantity:1
Description

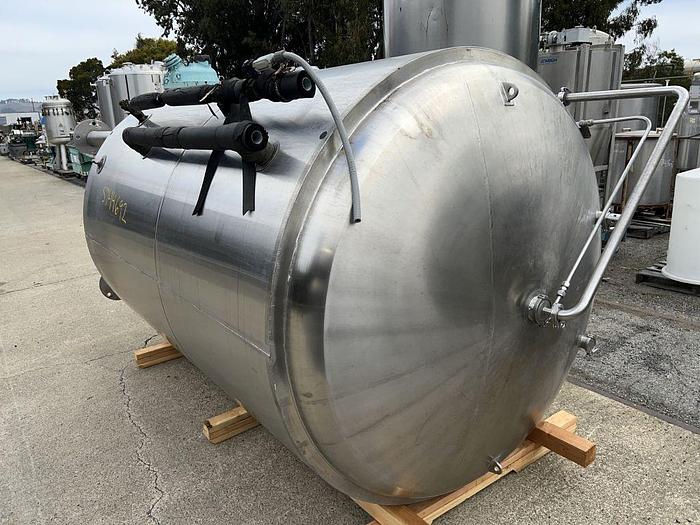

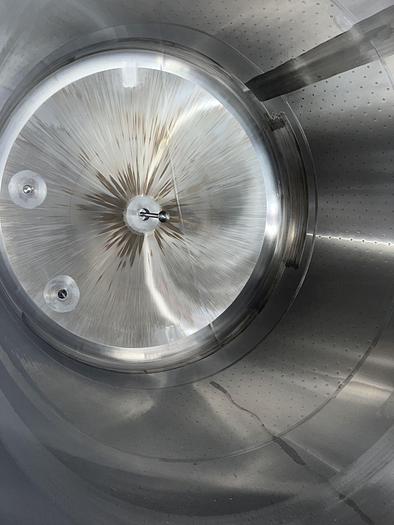

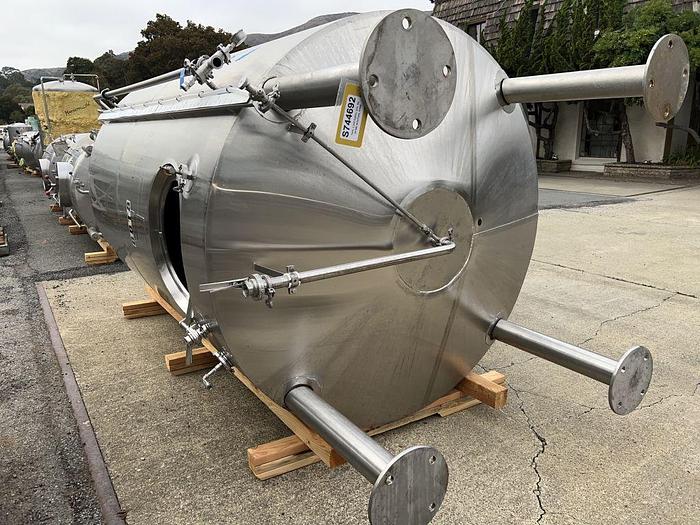

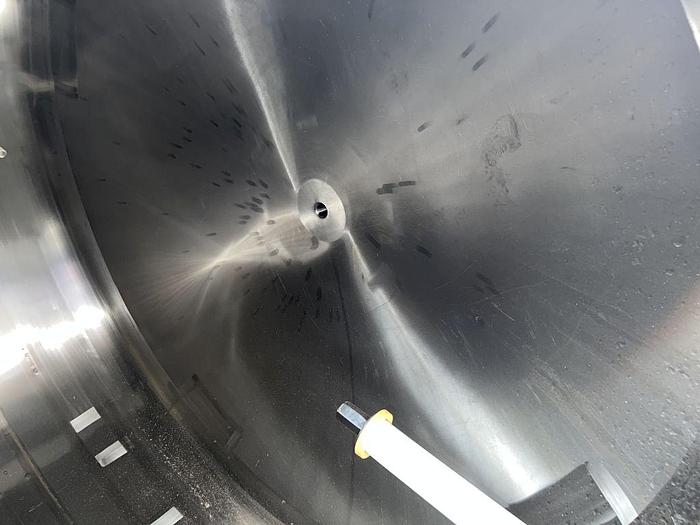

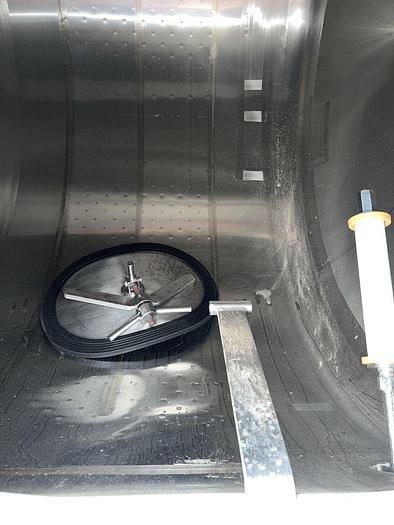

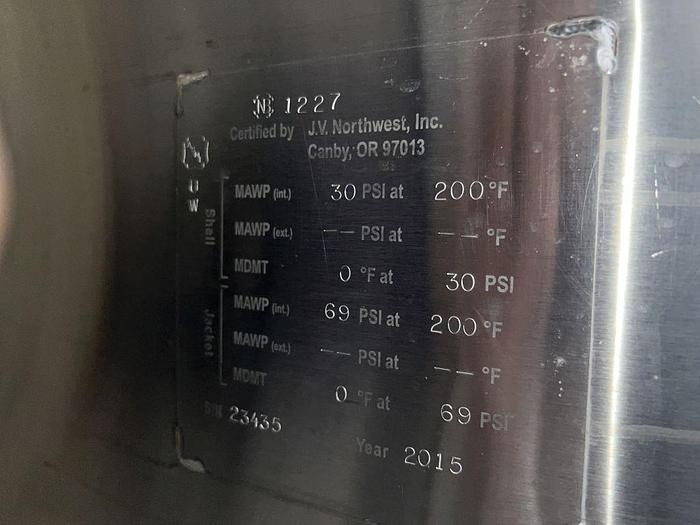

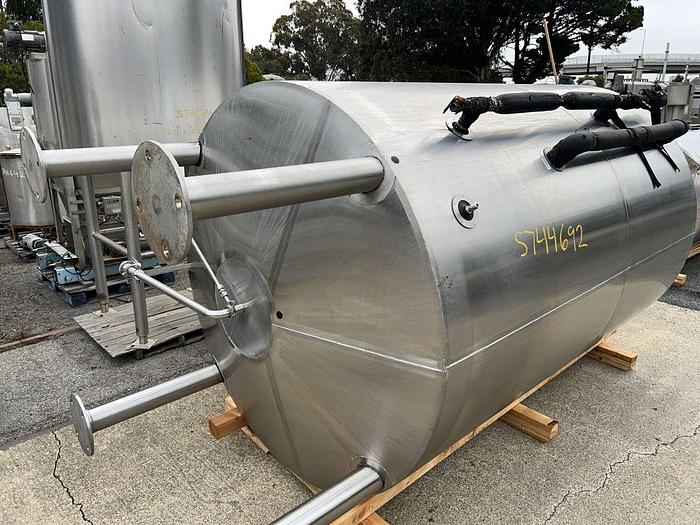

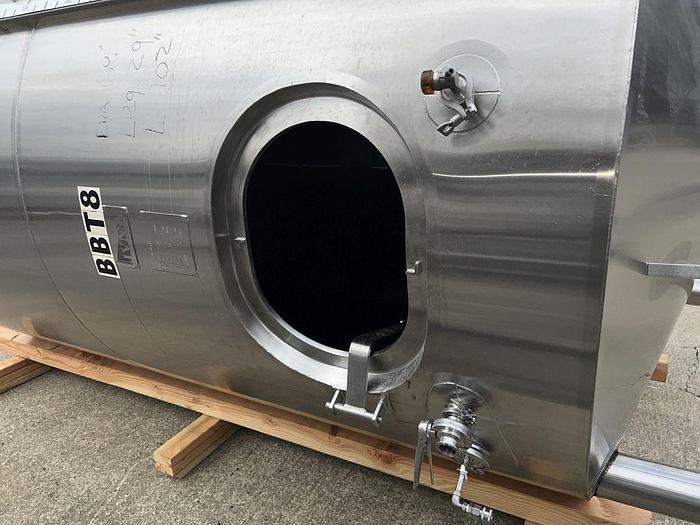

JVNW 50 BBL stainless steel brite tank, dimple plate jacketed vessel, 5' diameter x 8.5 straight side, mounted on 20" high legs, dome top, cone bottom. Includes approximately 18" x 14" side front manway, center bottom discharge, sample port, level gauge, CIP port, thermocouple, pressure relief valve, 30 psi @ 200 deg F MAWP-shell, 69 PSI @ 200 deg F MAWP - jacket, (2015) Serial number 23435 (NOTE: level gauge shows 52BBL).
Specifications
| Stock Number | S744692 |
| Manufacturer | JV Northwest |
| Year | 2015 |
| Serial Number | 23435 |
| Gallons | 1550 |
| Previous Use | Brewery |
| Type | Brite Tank |
| Internal Pressure | 30 PSI |
| Jacket Pressure | 69 PSI |
| Basis | FOB |
