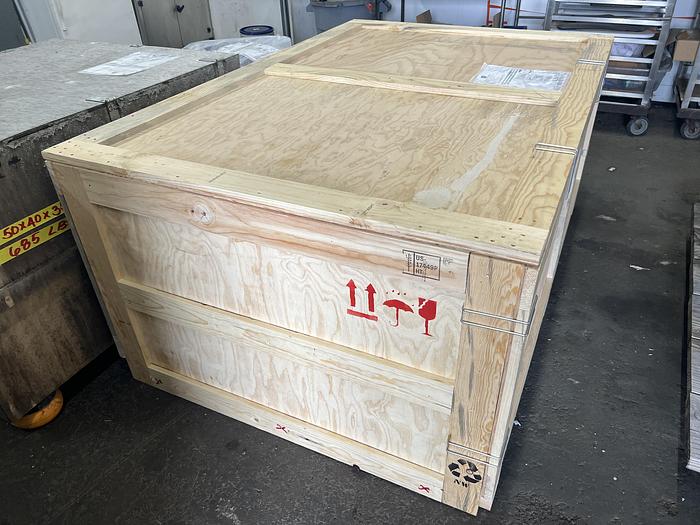

Reactor, 100 Gallon, Glass Lined, De Dietrich, 150 PSI, Jacketed, Agitated #S744731

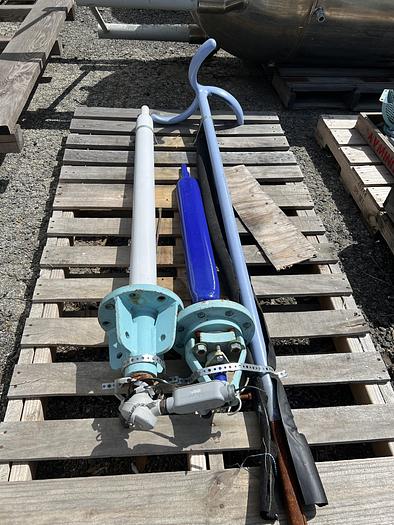

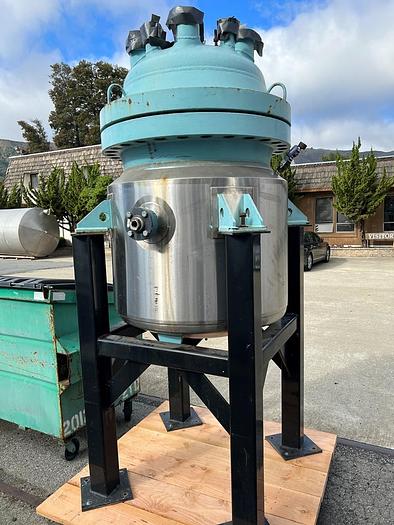

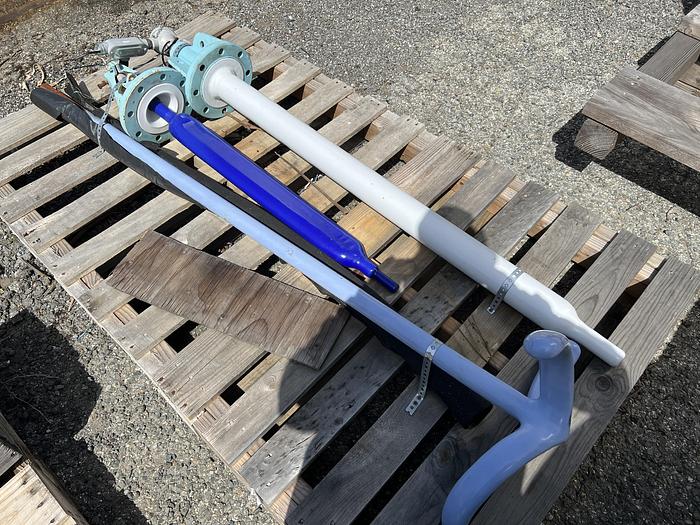

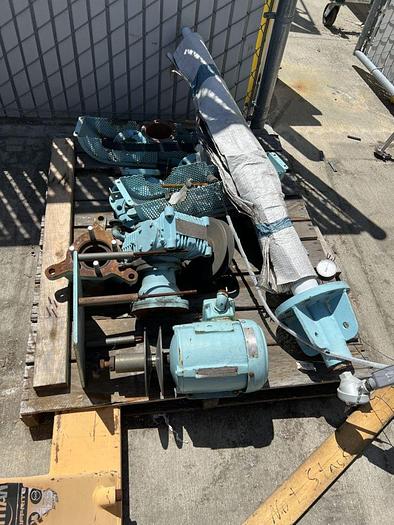

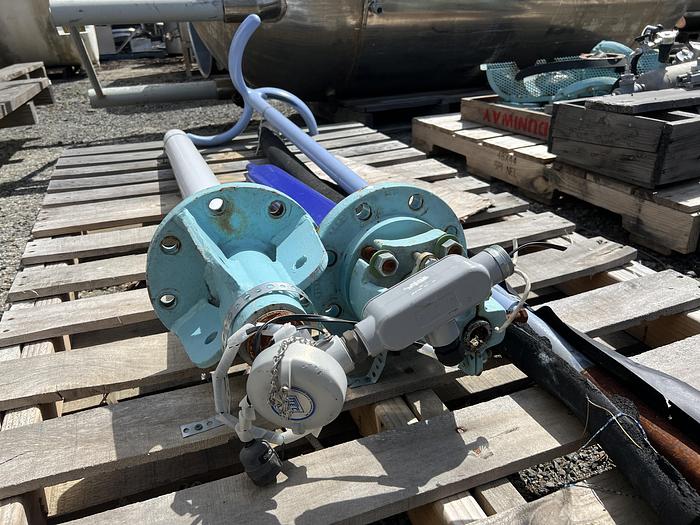

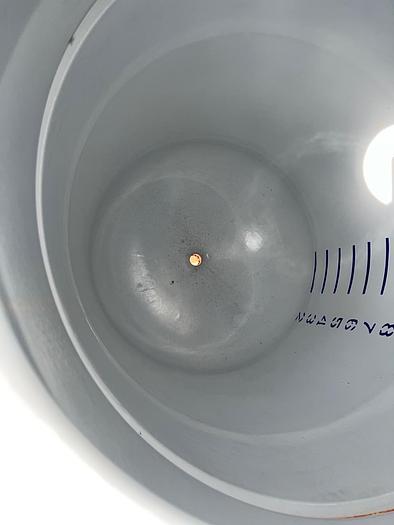

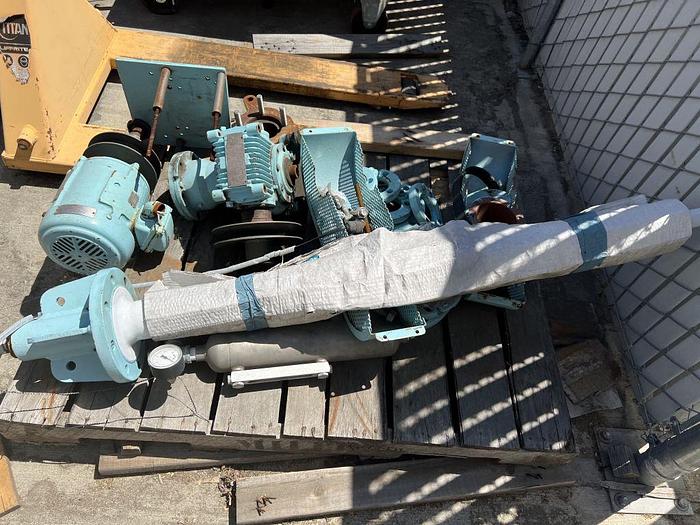

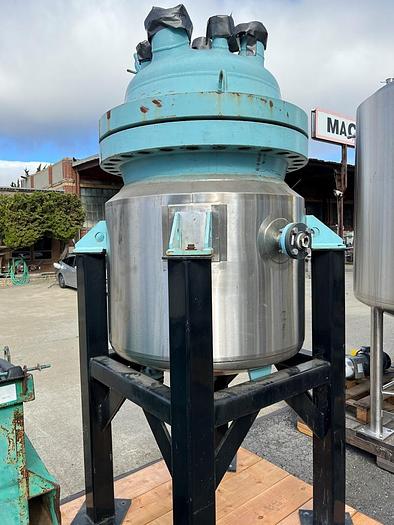

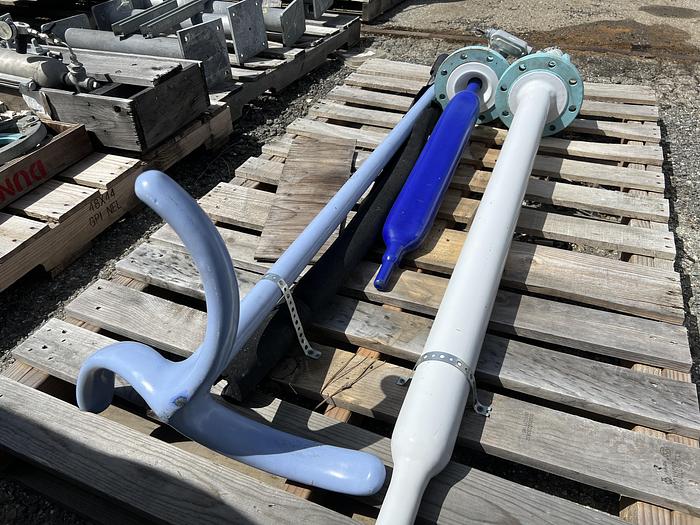

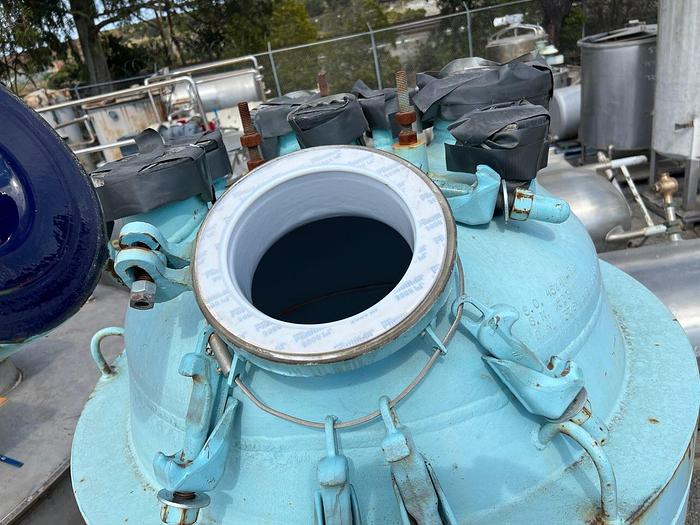

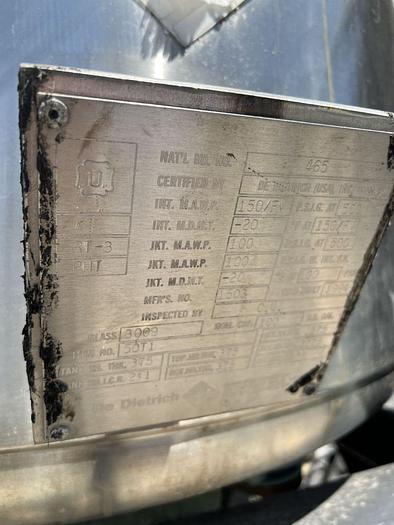

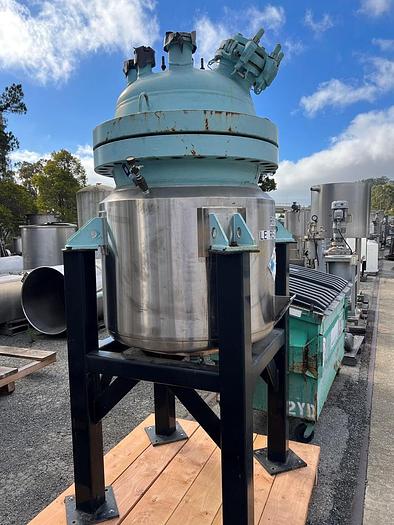

De Dietrich 100-Gallon Glass-Lined Reactor. Internally rated for 150 PSI / Full Vacuum @ 500 degrees F. / -20 degrees F. Jacketed for 100 PSI @ 500 degrees F / -20 degrees F. Includes glass type 3009. Vessel measures 28" inside diameter (36" outside diameter) X 48" straight side, dish bottom with 2" diameter center bottom outlet and 12" high bolted dish top. Top head has (8) openings ranging from 2" diameter to 8", including sight glass and agitator opening; Side includes 1" jacket connections. Offered with top mounted drive to retreating impeller type agitator and stationary baffle. Tank shell thickness – 0.375"; Bottom head thickness – 0.375"; Top head thickness – 0.375"; Jacket Shell thickness – 0.375"; Jacket head thickness – 0.3125". Mounted on (4) angle iron legs. Clearance from discharge to ground is 36" (without valve installed). Manufacturer’s number 1503. ASME code constructed. National Board number 465.
