Pump, Centrifugal, 30 HP, Nikuni, Mdl KTM65S2, Bubble Generator #S745079
Pump, Centrifugal, 30 HP, Nikuni, Mdl KTM65S2, Bubble Generator #S745079
Location:San Dimas, CA
Available quantity:1
Description

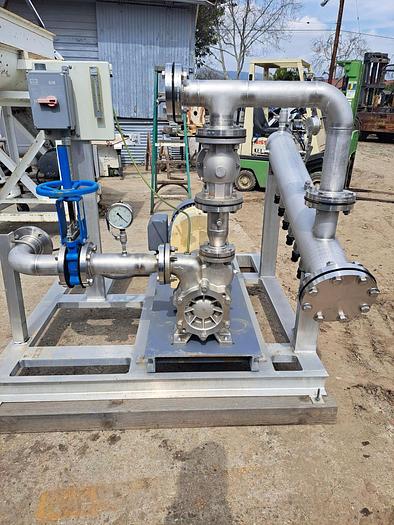

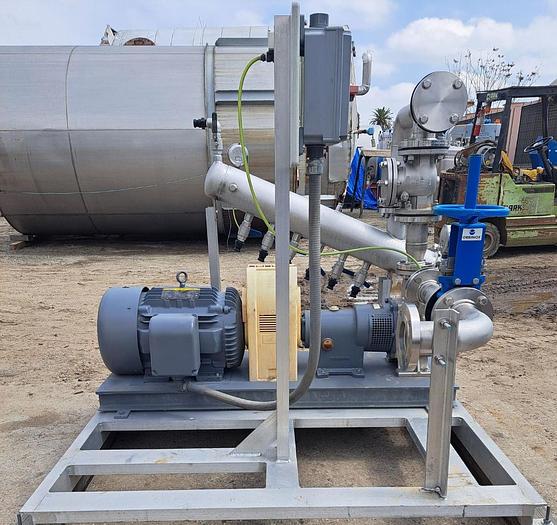

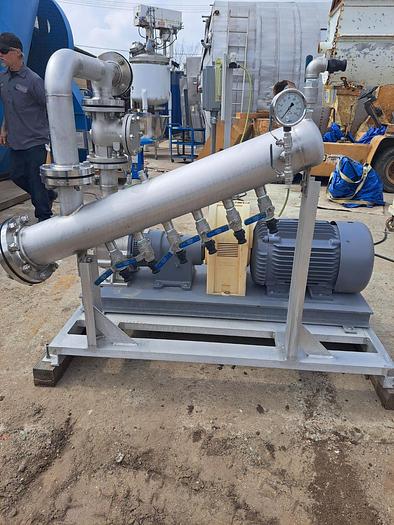

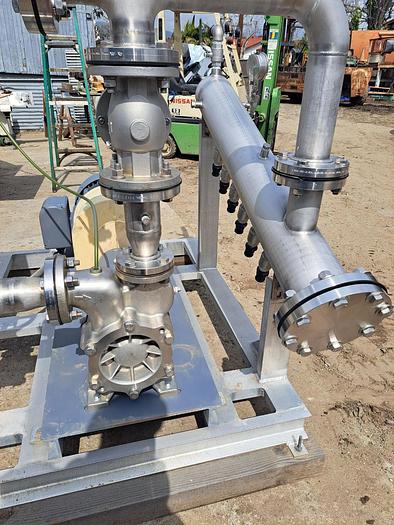

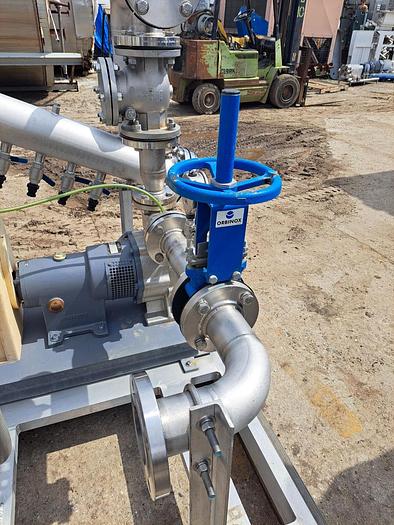

NIkuni Micro-Bubble Generator Model KTM65S2, 304 stainless steel. Water flow rate: 88 GPM (20 m3/h) Air flow rate: 7.0 N-GPM (0 to 10 Range). Driven by 30 HP, 230/460V,1770 RPM, 3-phase, 60 Hz. Includes 3" flange-type inlet, (6) 1" outlets. Serial number 3244014589, unitized on aluminum stand.
Nikuni has developed a unique and compact Micro-Bubble Generator - the KTM - that creates pressurized air-enriched whitewater with highly reliable performance, ensuring excellent stability in processes and systems such as DAF units in water treatment plants. This bubble generator uses the properties of the vortex pump turbine and effectively solves gas with a liquid or two liquids, and adding it under pressure into a process.
Specifications
| Stock Number | S745079 |
| Manufacturer | Nikuni |
| Model | KTM65S2 |

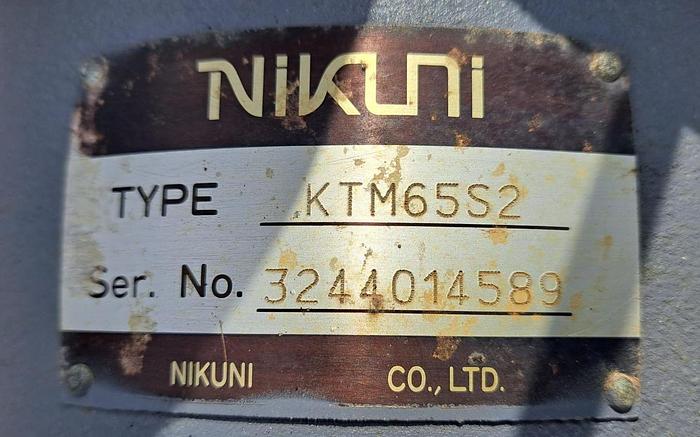

| Serial Number | 3244014589 |
| HP | 30 |

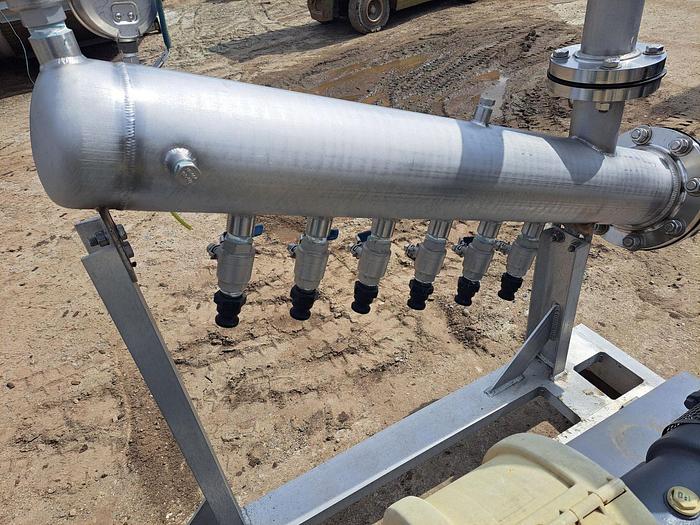

| Inlet and Outlet | 3" Inlet to (6) 1" Outlets |
| Contact Parts | 304 Stainless Steel |
| Type | Bubble Generator |
| Basis | FOB |
Additional Information
For removing impurities from wellwater in preparation for various industries
• For pretreatment of kitchen waste water
• For excrement (of livestock) treatment after rough seperation by vibratory screen
• For recycling of high-grade paper fiber
• For food, crystal and chemical removal
• For removing sediments, sludge and algae for pond/lake purification
• For a micro bubbled bath
• For using the watersurface as an image for events
• For decorating a pool’s watersurface
