Feeder, Screw, 2" x 36", Acrison, Model 105Z, Stainless #C745087
Feeder, Screw, 2" x 36", Acrison, Model 105Z, Stainless #C745087
Location:Brisbane, CA
Available quantity:1
Description

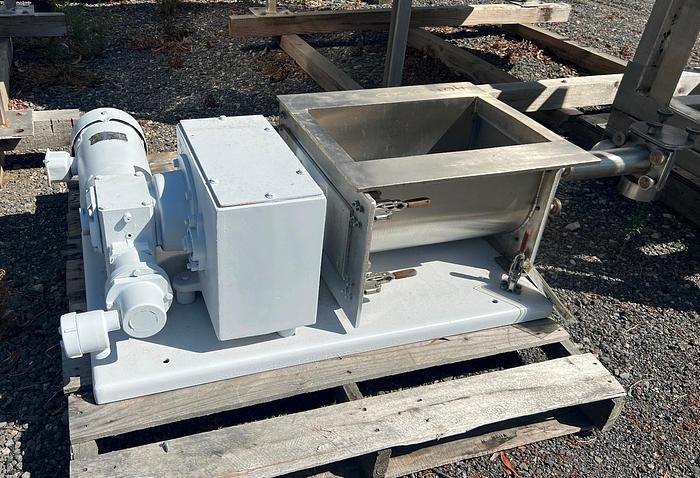

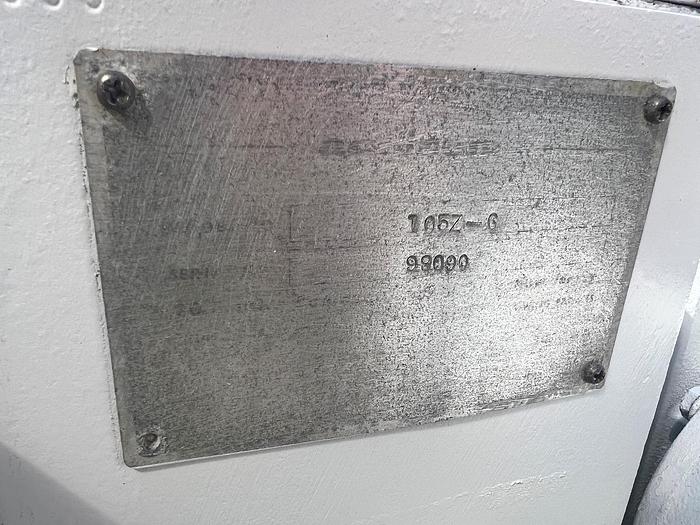

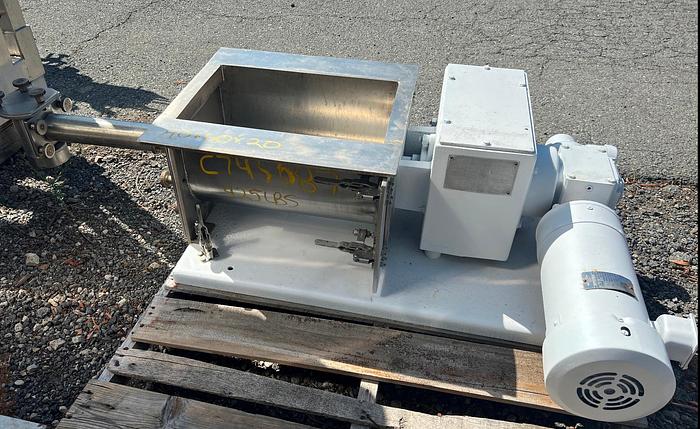

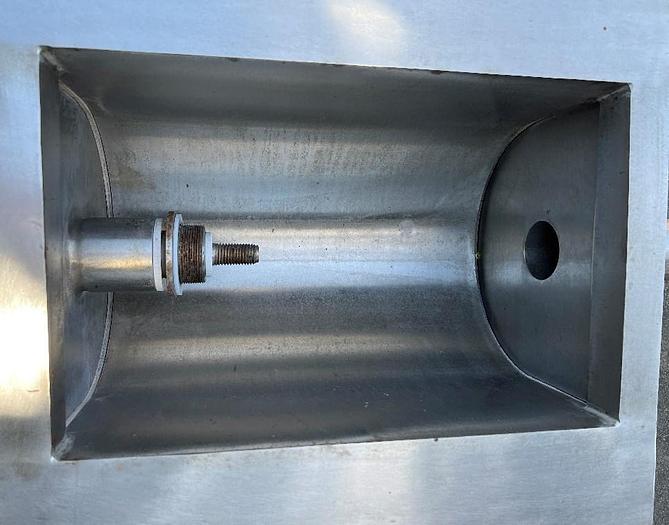

Acrison Model 105Z Dry Solids Volumetric Screw Feeder. Set up for conditioning/double concentric auger section with 2" diameter X 36" long auger (Offered less auger). Conditioning section measures 17-1/4" x 11" x 11" deep with U-shaped trough. Manufactured by Acrison, Model number 1057-G, serial number 98090.
Previously fed Acrison 301 Continuous Blender - Item# C745086
Specifications
| Stock Number | C745087 |
| Manufacturer | Acrison |
| Model | 203B-105Z |
| Serial Number | 98090 |
| Screw Dimensions | 2" Diameter X 36" Long |
| Materials of Construction | Stainless Steel |
| Previous Use | Food Processing |
| Basis | FOB |
Additional Information
Acrison’s heavy duty Model 105 and 140 Series of Volumetric Feeders for dry solids feature a unique, dissimilar speed, double concentric auger metering mechanism designed to accurately and reliably meter a very wide variety of dry solid materials. The metering mechanism consists of a large 'conditioning auger' or Intromitter, concentrically mounted around a smaller, slower rotating 'metering auger', operating at dissimilar speeds in a fixed proportion to each other by a single variable speed gearmotor.
