JV Northwest 10,000 Gallon Stainless Steel Storage Tanks - #4487742
Sold
JV Northwest 10,000 Gallon Stainless Steel Storage Tanks - #4487742
Location:Medford, OR
Available quantity:1
Description

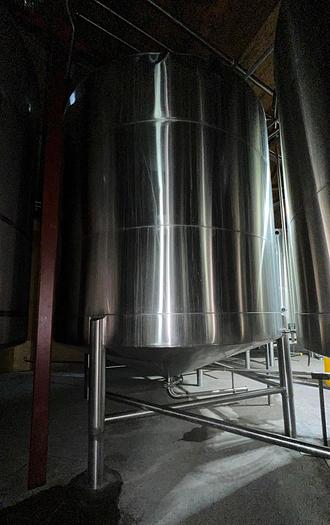

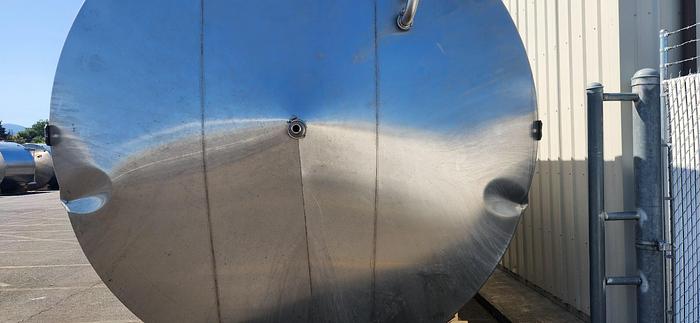

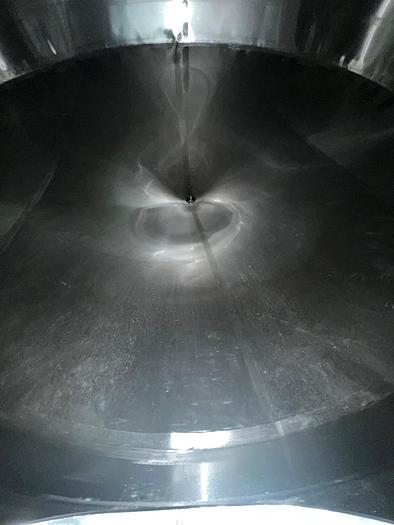

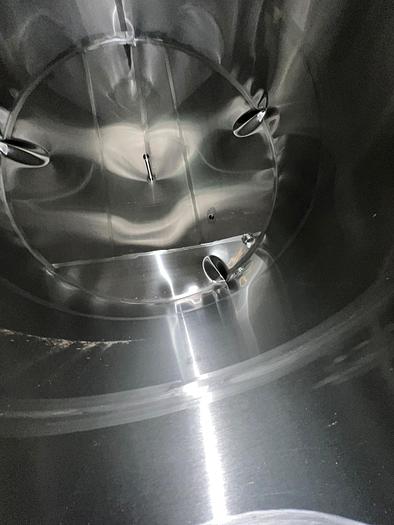

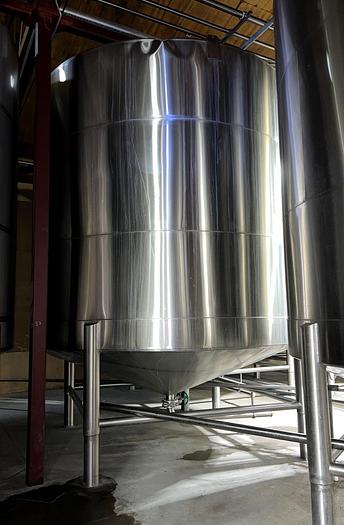

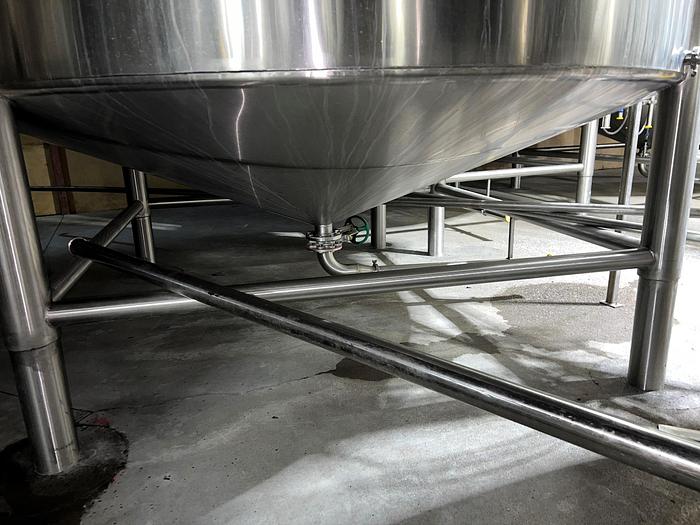

JV Northwest 10,000 Gallon stainless steel tanks with cone bottom. Vessel measures 12' diameter x 11-1/2 straight side with cone bottom leading to 4" diameter center bottom outlet with manual valve and pipe tapered to 3" diameter. Mounted on 7" diameter X 66" high legs. Discharge clearance is approximately 22" from vessel outlet and 10" from elbow discharge. Shipping dims - approximately 12-1/2' diameter x 16' long.
Specifications
| Stock Number | 4487742 |
| Manufacturer | JV Northwest |
| Gallons | 10,000 |
| Materials of Construction | Stainless Steel |
| Previous Use | Juice Processing |
| Tank Dimensions | 12' Diameter X 11-1/2' Straight side |
| Type | Storage Tank |
| Basis | As-Is, Where-Is |
