Evaporator, 2-Effect, Stainless Steel, Rossi & Catelli T30 D.E. Venus #4487802
Evaporator, 2-Effect, Stainless Steel, Rossi & Catelli T30 D.E. Venus #4487802
Location:Medford, OR
Available quantity:1
Description

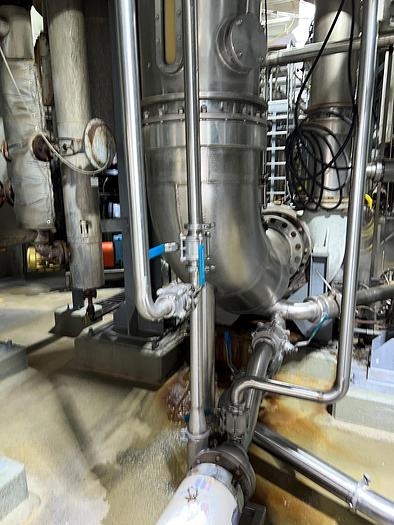

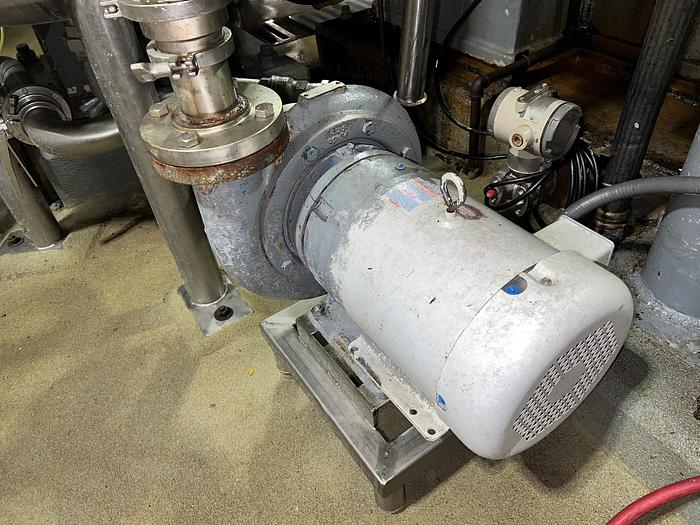

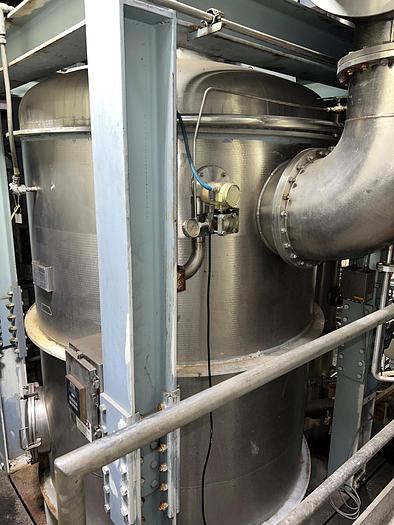

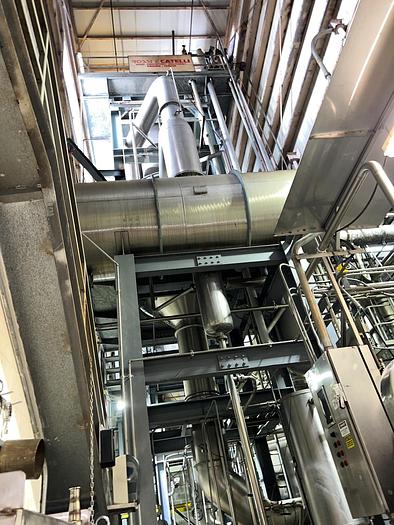

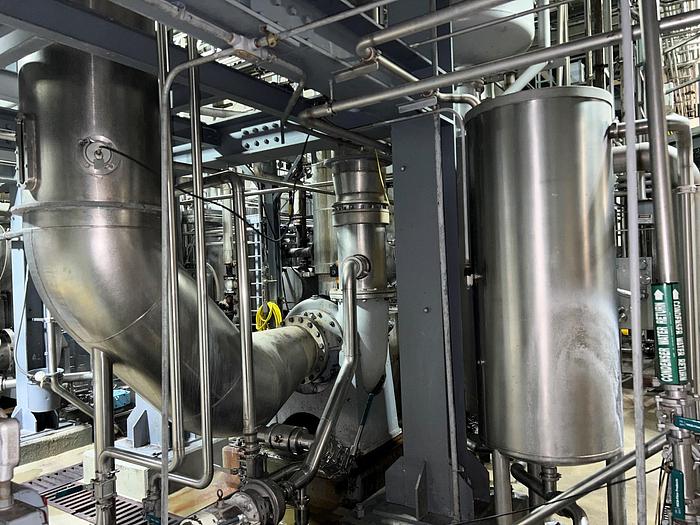

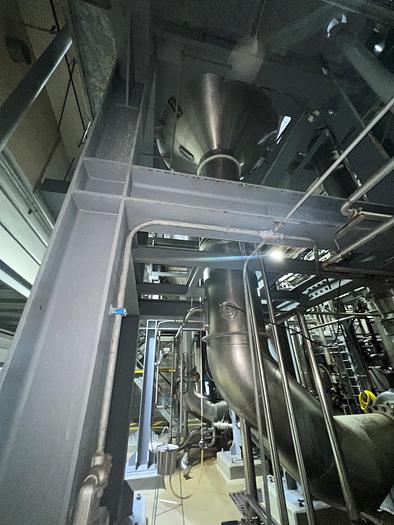

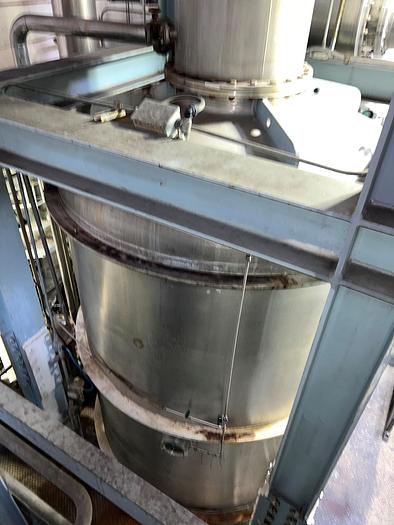

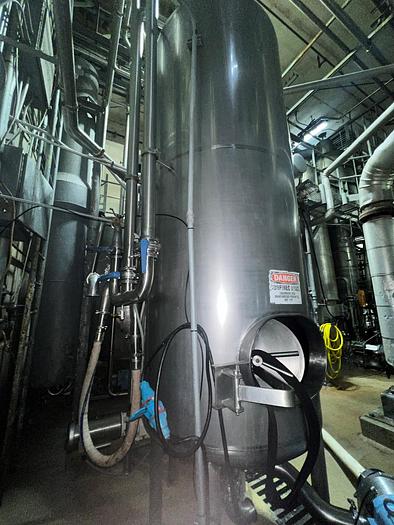

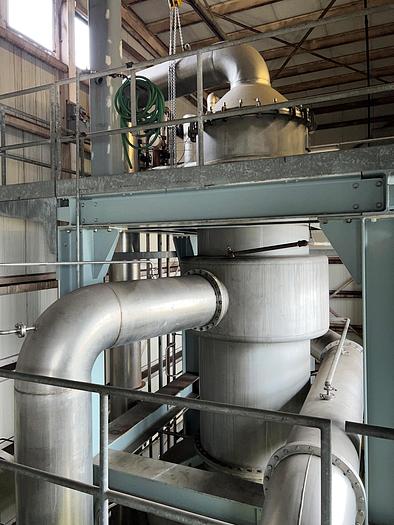

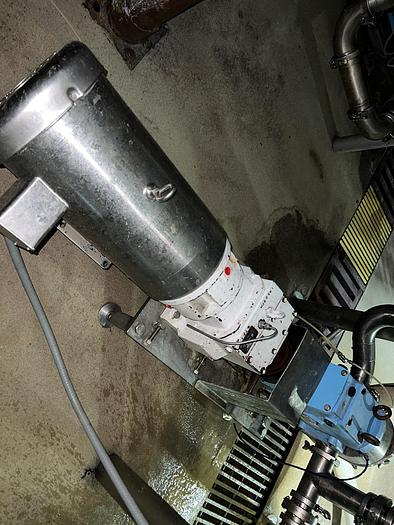

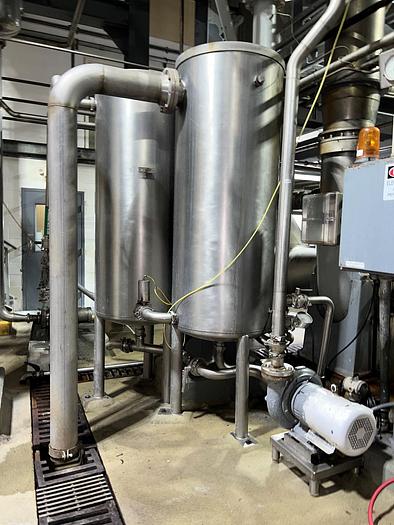

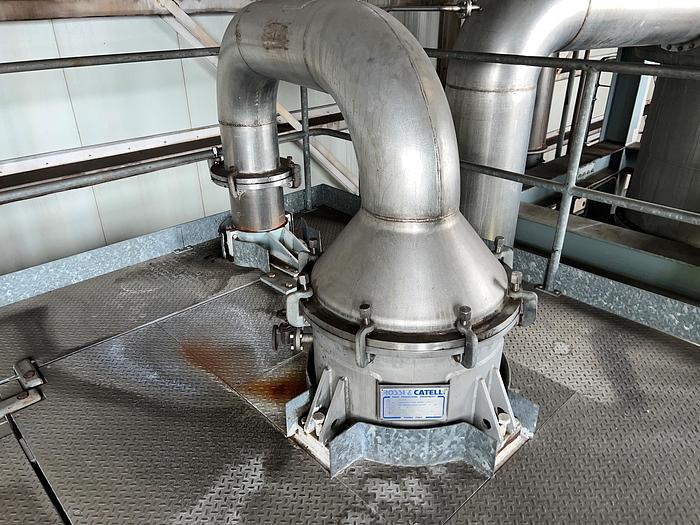

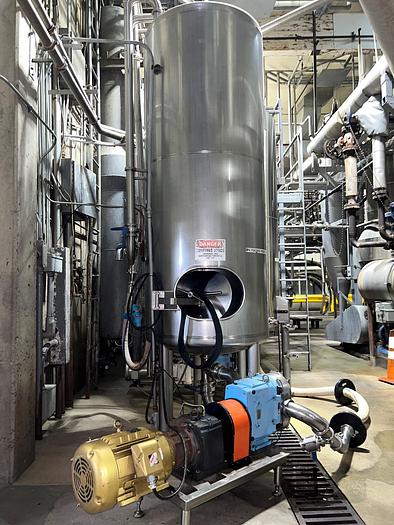

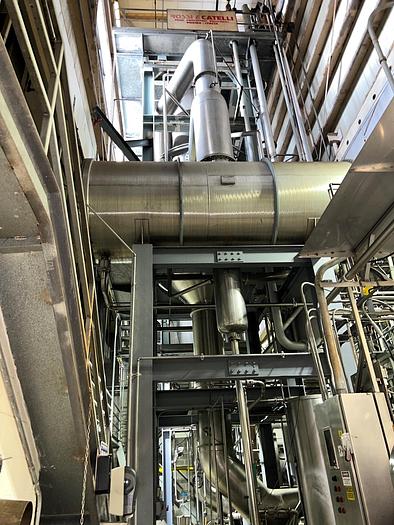

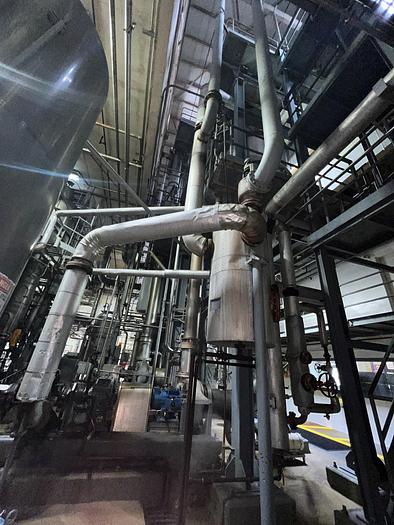

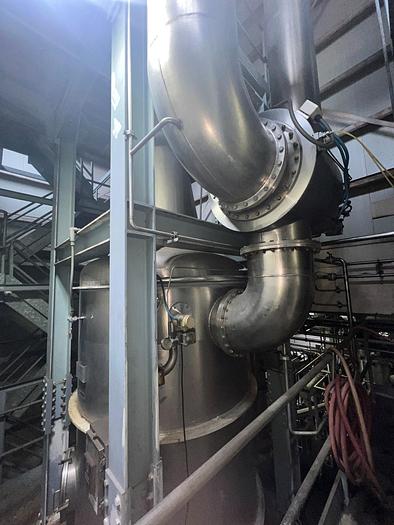

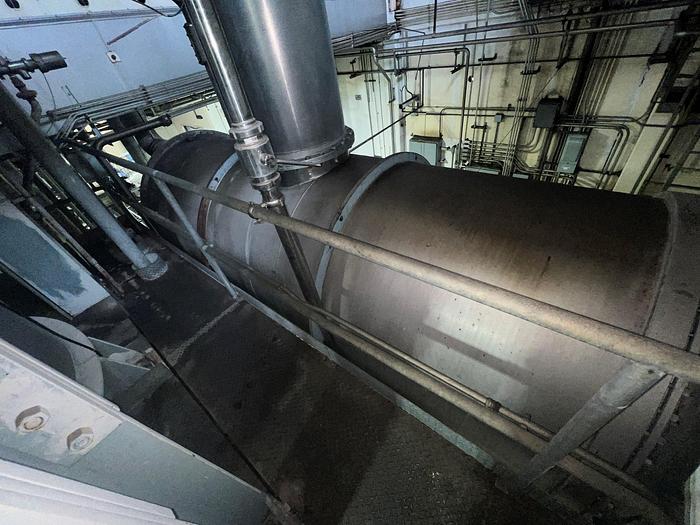

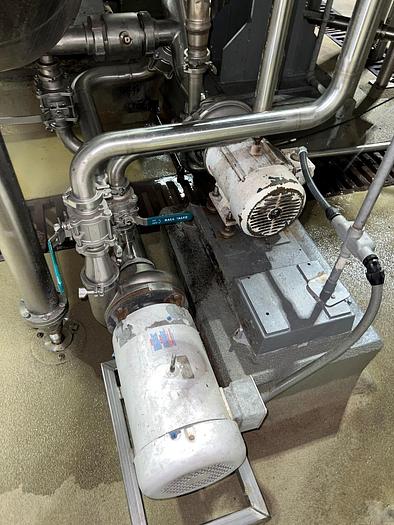

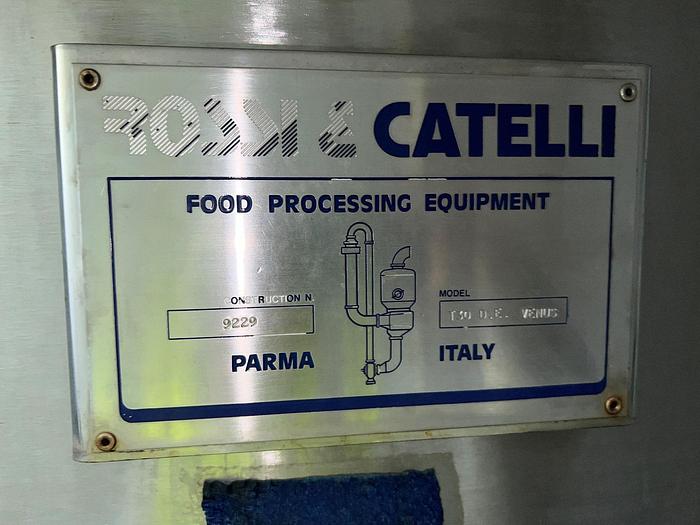

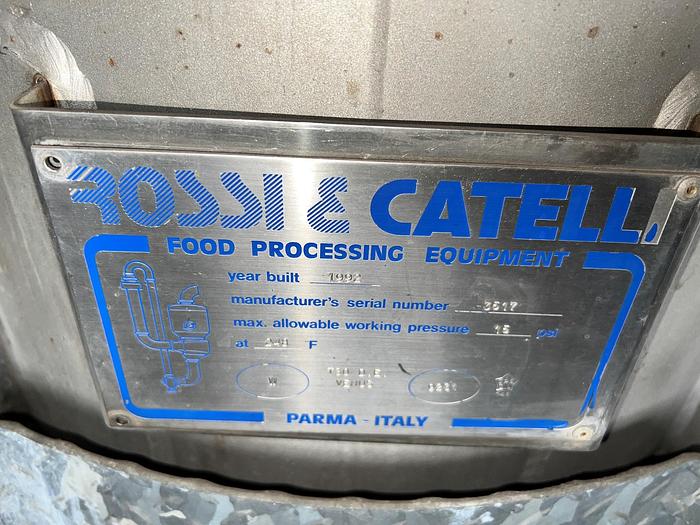

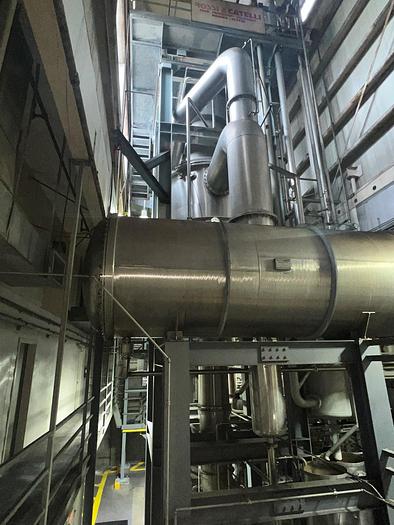

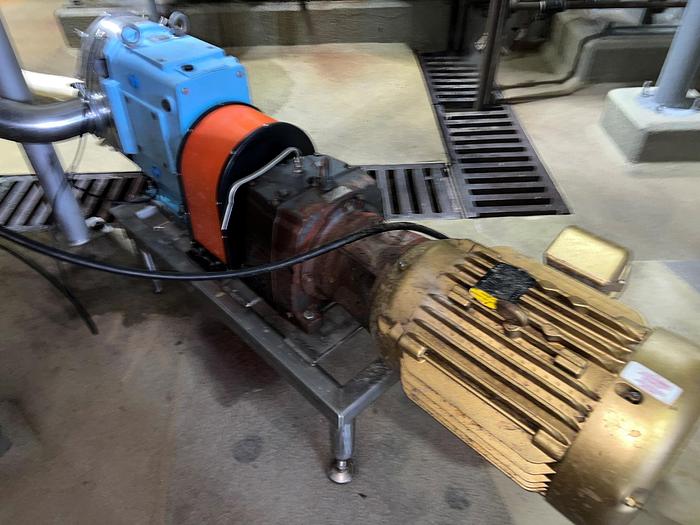

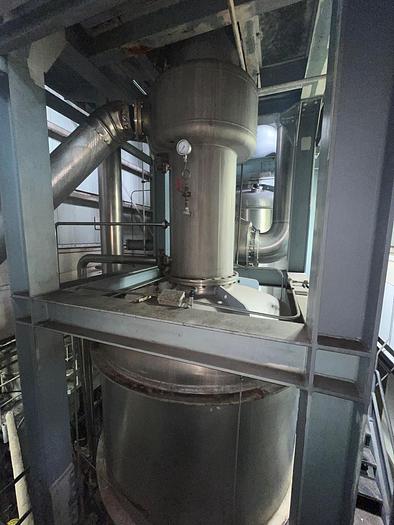

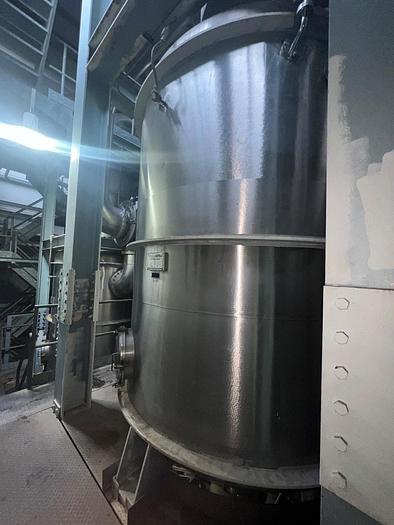

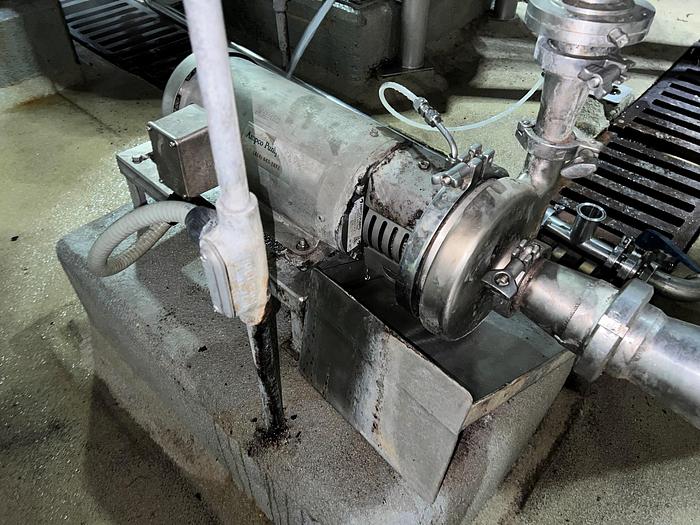

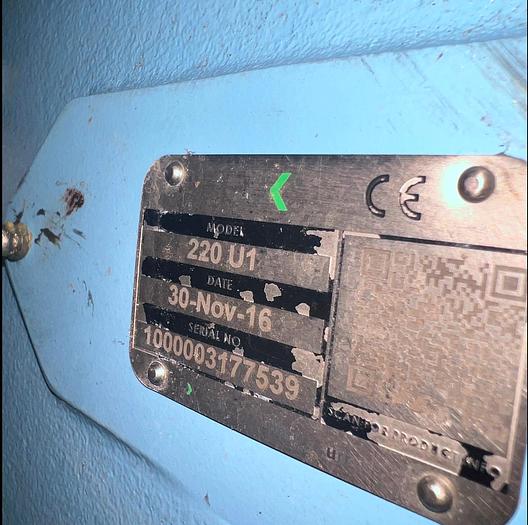

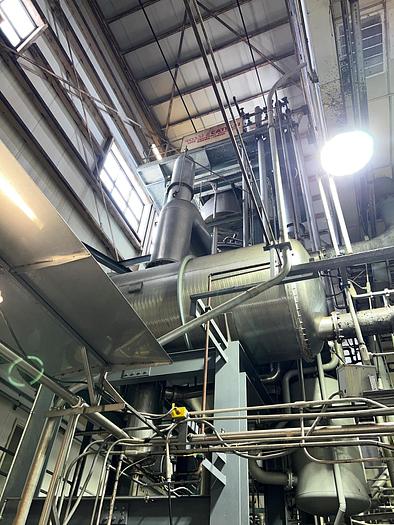

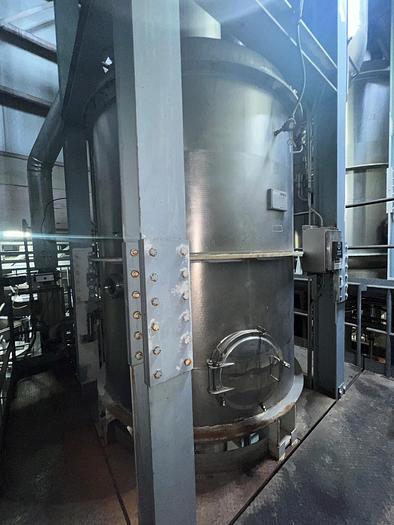

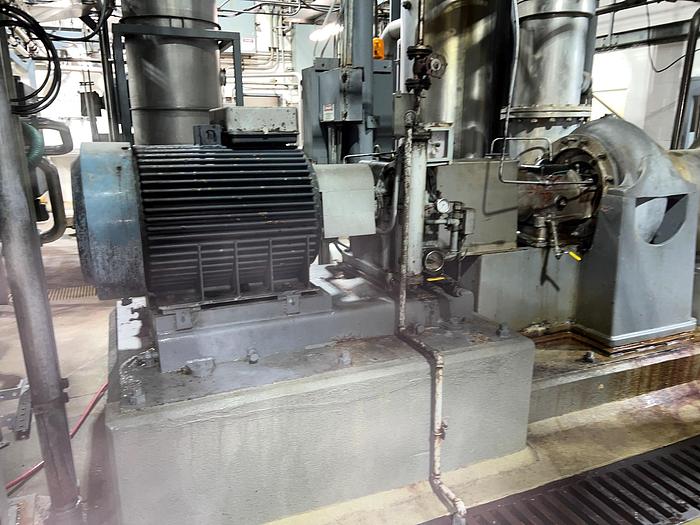

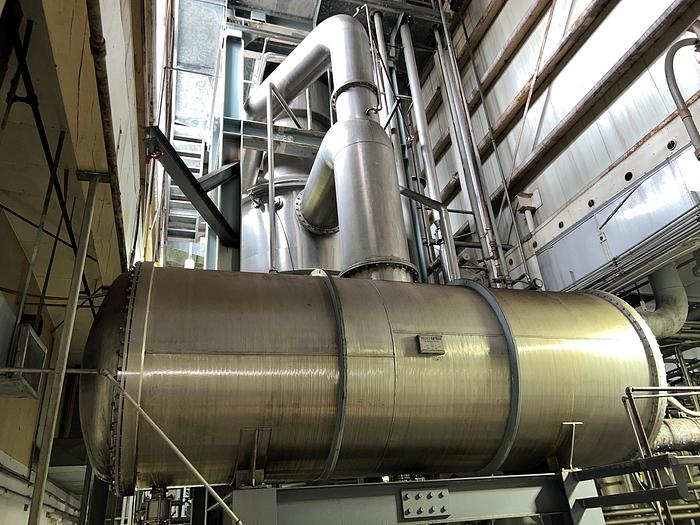

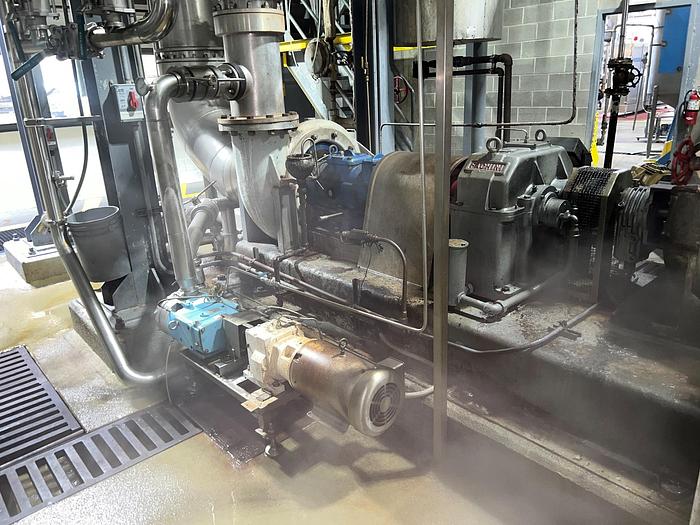

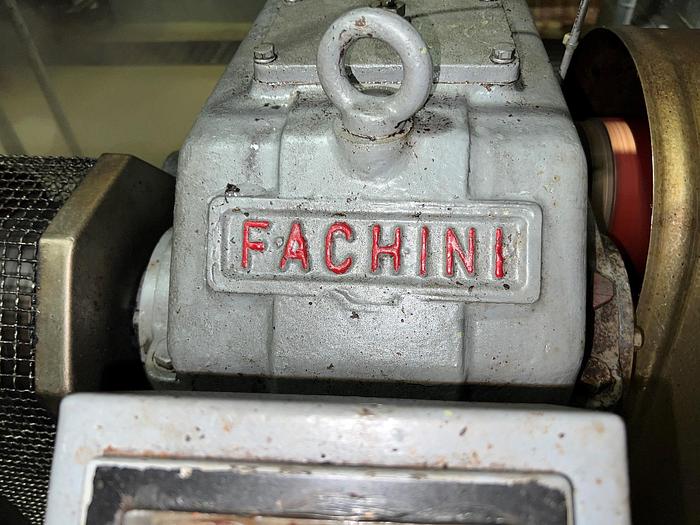

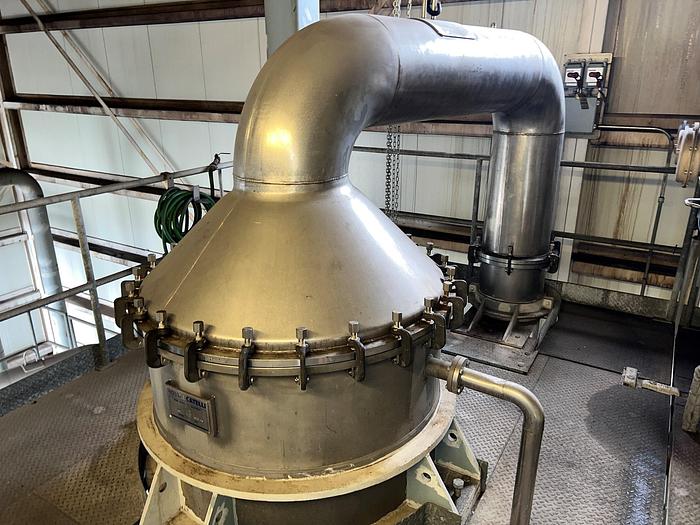

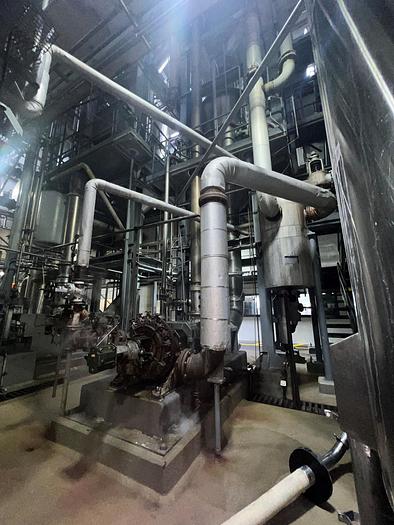

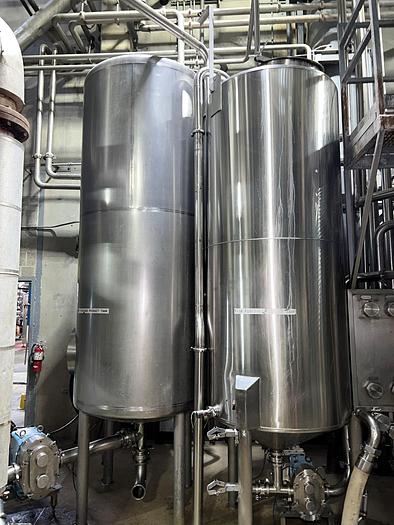

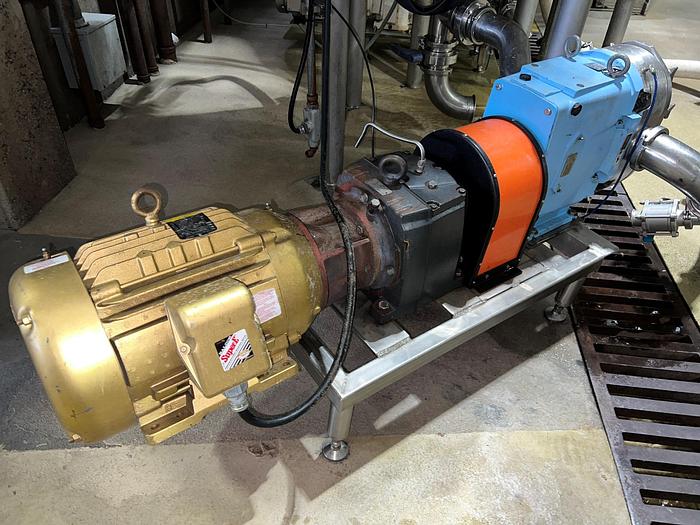

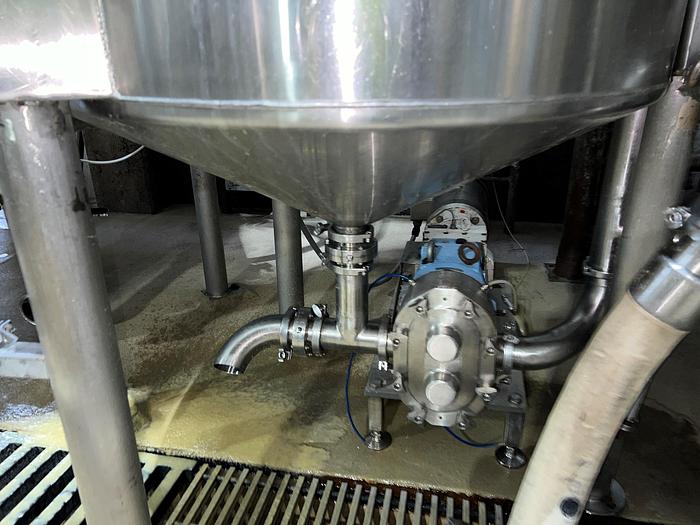

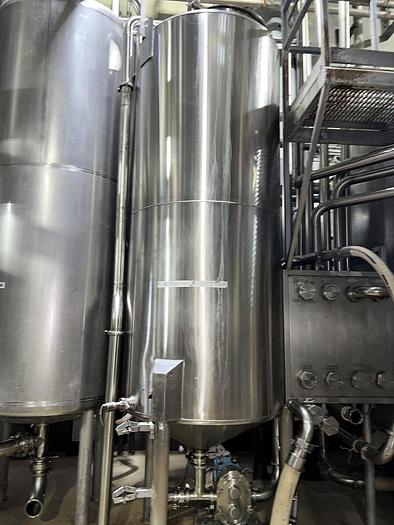

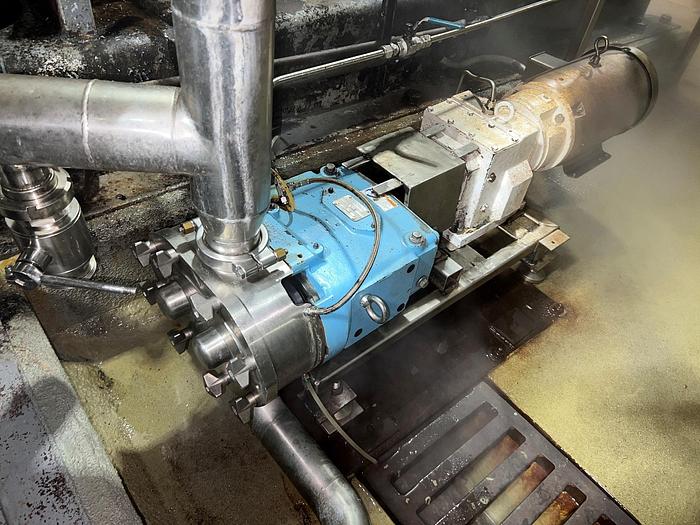

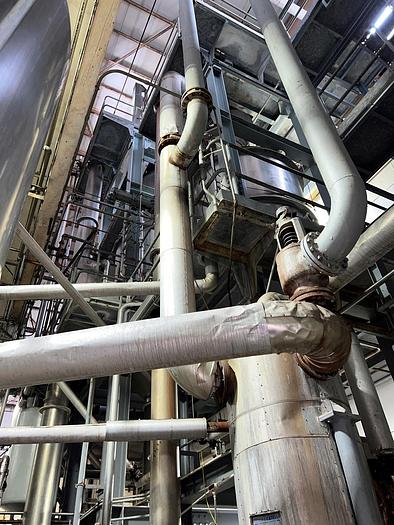

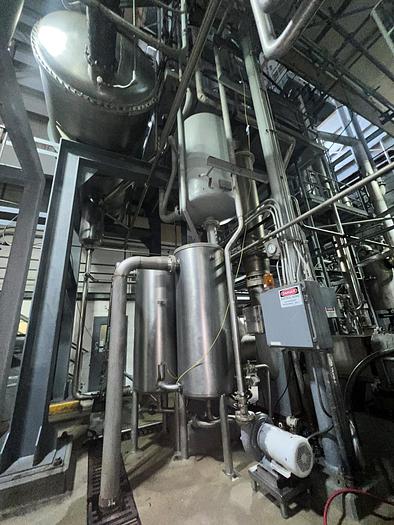

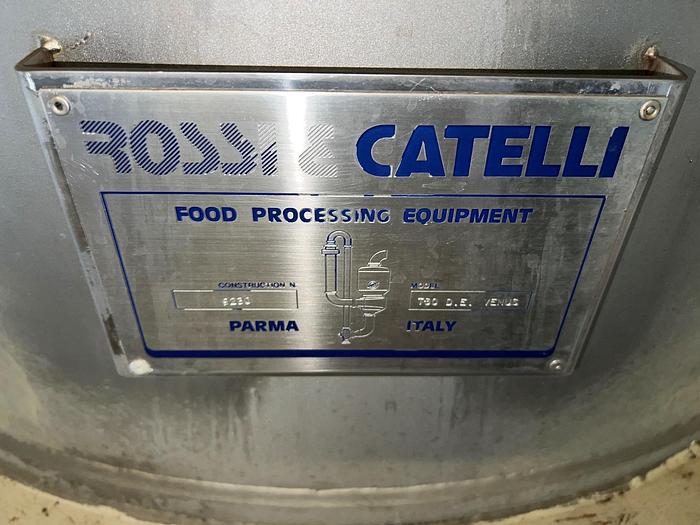

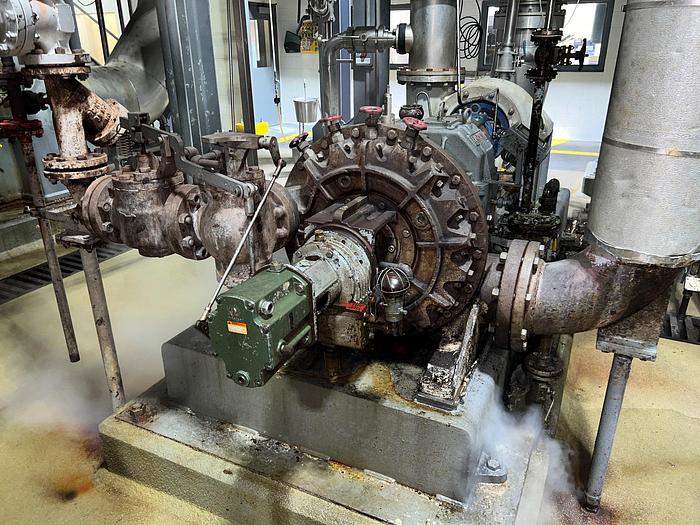

Rossi & Catelli Model T30 D.E Venus Multiple Effect Evaporator, serial number 9228, includes 6' diameter x 9' straight side tank with dish top, connected to approx. 30" diameter vertical condenser; Fachini Turbine pump with Waukesha 130 pump, serial number 92388, to 6' diameter vapor body vessel; 7' diameter x 10' straight side tank with dish top, connected to approx. 30" diameter vertical condenser; Approximately 100 HP turbine pump connected to 7' diameter vapor body vessel; Horizontal pressure vessel, 5' diameter x 12' long with dished ends; APV Finished Product tank with Waukesha 220 Pump, serial number 1000003177539; T30 Finished Product Tank, stainless steel, connected to Waukesha 130 PD pump, serial number not legible. Previously used in fruit puree processing.
Specifications
| Stock Number | 4487802 |
| Manufacturer | Rossi & Catelli |
| Model | T30 D.E. Venus |
| Capacity | 30 GPM |
| Number of Effects | 2-Effect |
| Previous Use | Fruit Puree |
| Infeed Product | 20,884 lbs/hr (9 Brix) or 30,022 lbs/hr (16 Brix) |
| Paste Output | 5,872 lbs/hr or 15,011 lbs/hr |
| Paste Solids | 32 Brix |
| Water Evaporation | 1,796 gal/hr |
| Basis | As-Is, Where-Is |
Additional Information
Capacity - Using apple as a test fruit at 11 brix raw and 32 BX: Finished T30 as a stand alone would be at approximately 26-33 bins or 13 to 16 tons per hours.
