Location:Texas
Available quantity:1
Description

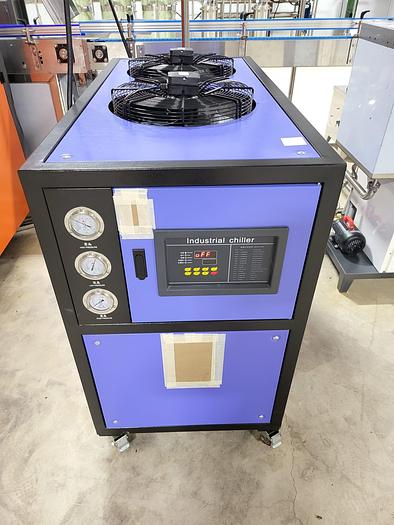

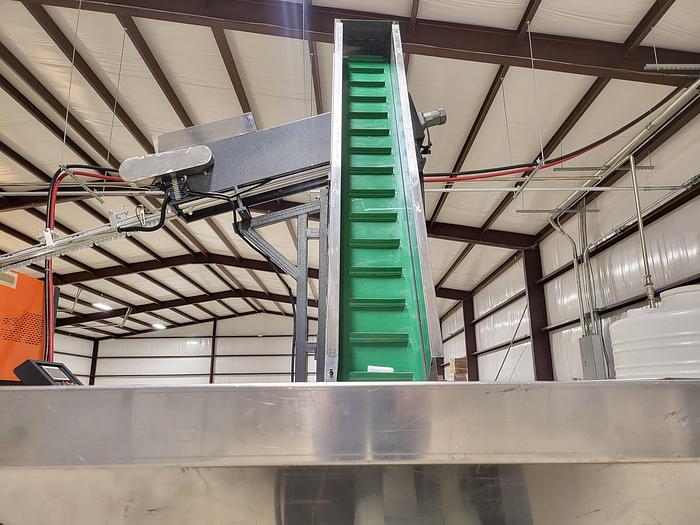

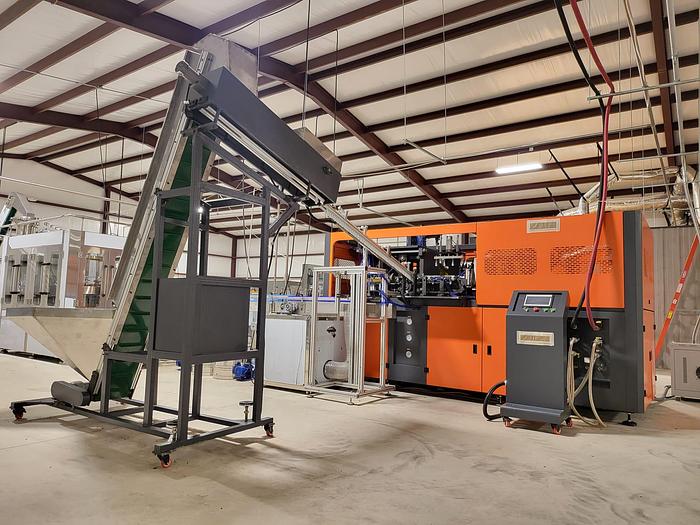

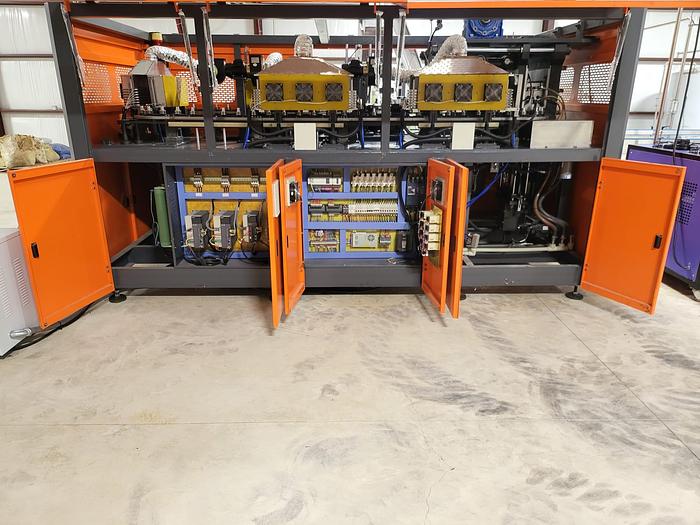

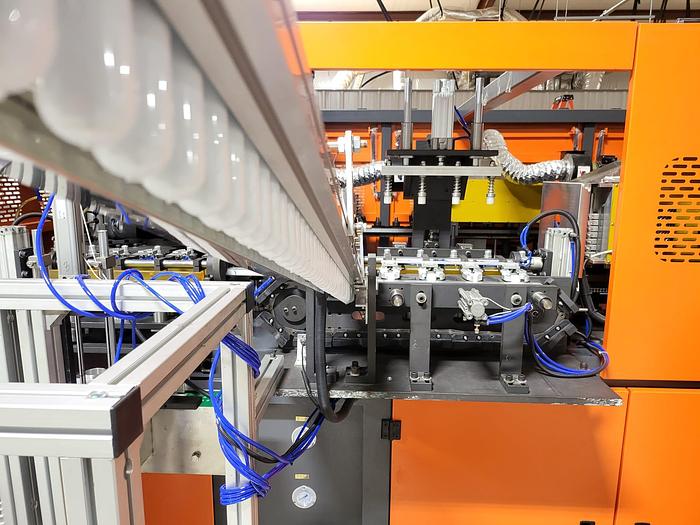

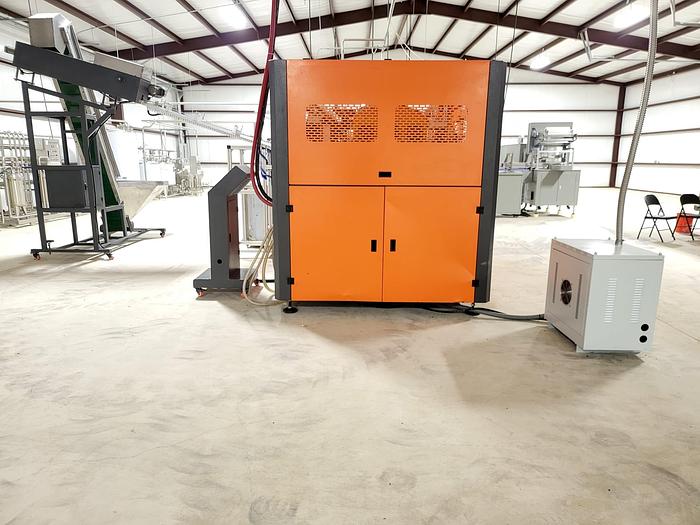

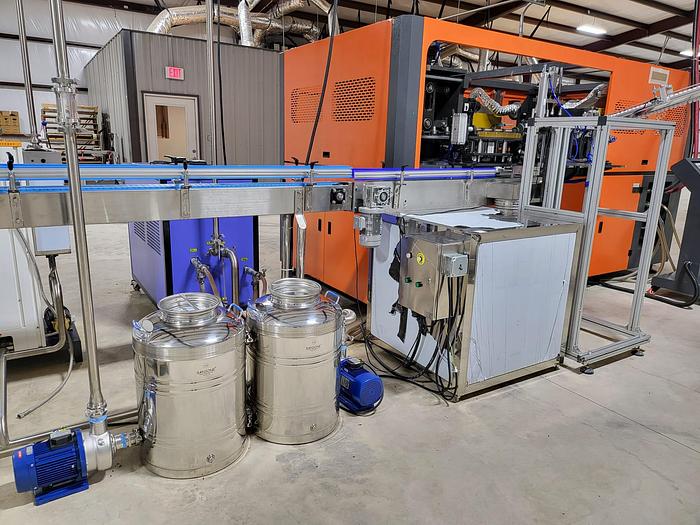

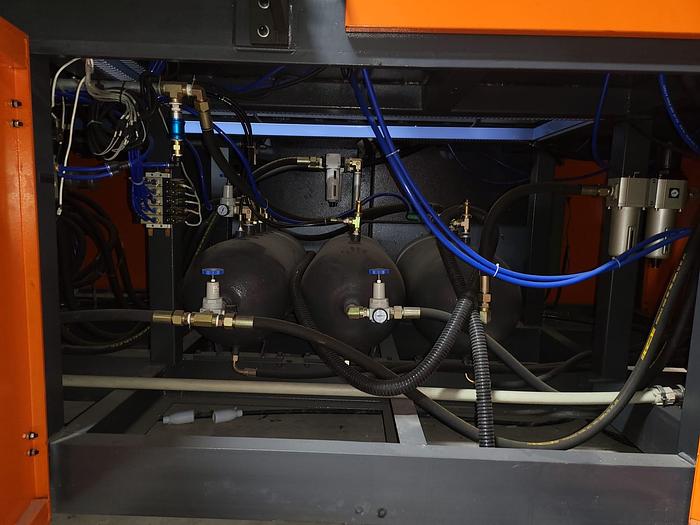

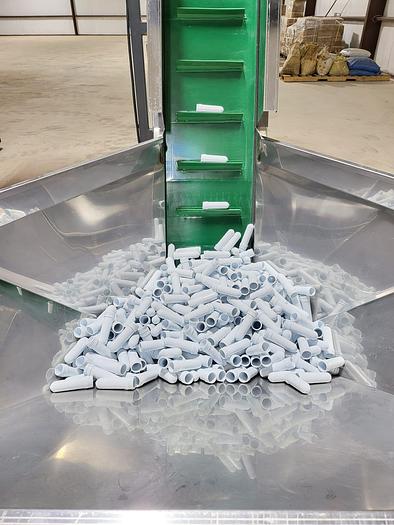

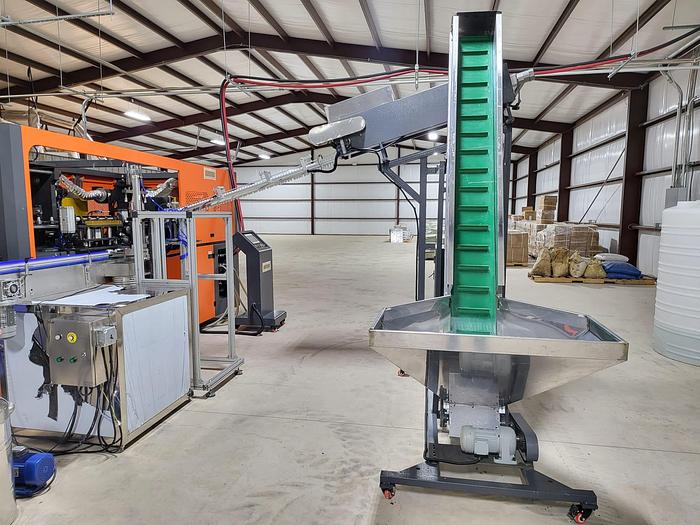

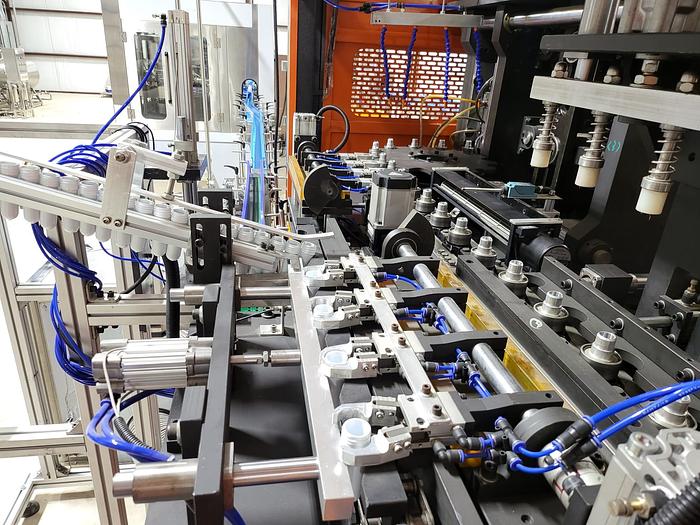

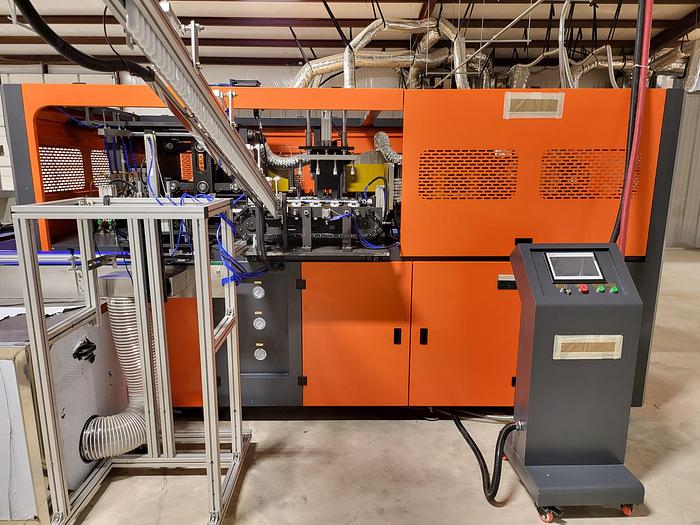

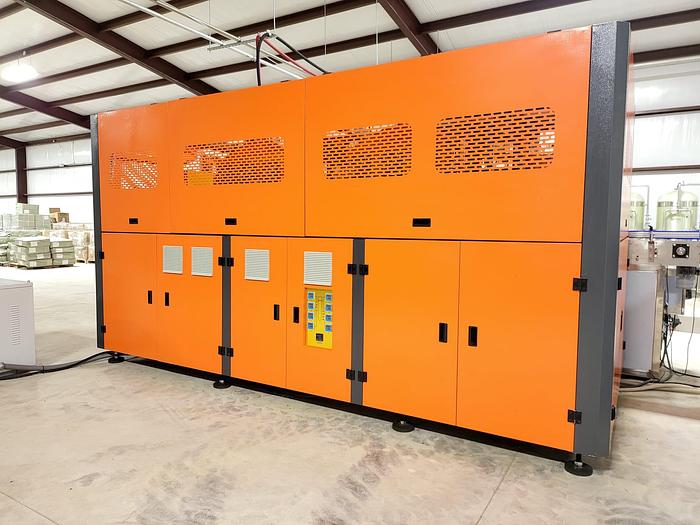

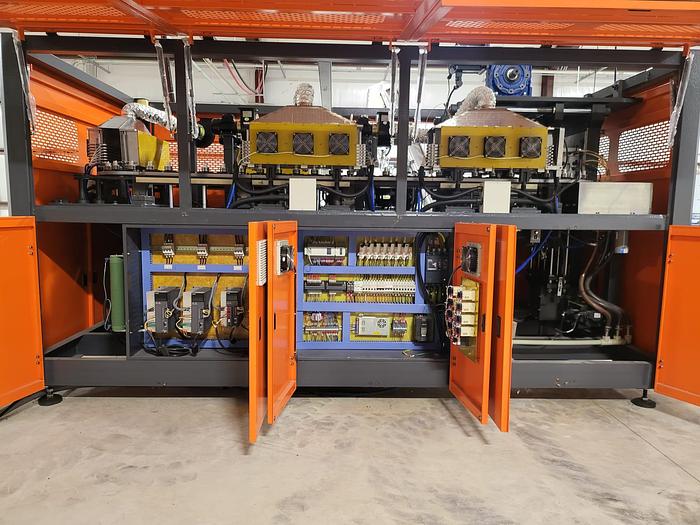

Automatic 4-Cavity Blow Molding Machine, Model KM4A-2L, rated for 5500 bottles per hour output, powered by PLC and HMI system. Includes Parker high-pressure blowing valve, SMC Pneumatic cylinder, Omron sensors, and Schneider low-voltage electric components. Offered with Preform Unscrambler and 120 ML Blowing Mold, rated for up to 5500 BPH. Machine is capable of filling 500ML or more provided having proper mold for round and square bottles. Currently, unit has the mold for a 100 ml (3.3oz) round shot bottle and a 354 ml (12oz) round bottle. Also includes Air Compressor with Air Dryer System, rated for 3.6 m3/min at 30 Bar (127 CFM @ 435 PSI), Air Filter, Air Tank, and 3HP Water Chiller.
Specifications
| Stock Number | 4650904 |
| Model | KM4A-2L |
| Number of Cavities | 4 |
| Capacity | 5,500 BPH |
| Bottle Sizes | 100 ml & 12 oz |
| Previous Use | Bottled Water |
| Basis | FOB |
Additional Information
Theory output of 4000 BPH. Accommodates bottles of up to 2L, maximum bottle mouth overall diameter of 28-38mm, and a maximum bottle diameter of 105mm, maximum bottle height 330mm, it showcases exceptional design. The machine's light tube configuration consists of 32 units, with a total power of 48 KW, working pressure of 7-9kg/cm2 and low-pressure gas consumption of 1000L/min. High-pressure operations, at 25-35kg/cm2, 3000Ltr/min consumption. Operating within 5-6 kg/cm2 and a temperature range of 10℃, its consumption stands at 8000kcal/hr. with a frozen water flow of 138L/min.
