Air Classifier, STM Micron, Model SDF-200, Stainless Steel, 300 – 1200 kg/hr #4763720
Air Classifier, STM Micron, Model SDF-200, Stainless Steel, 300 – 1200 kg/hr #4763720
Location:Arizona
Available quantity:1
Description

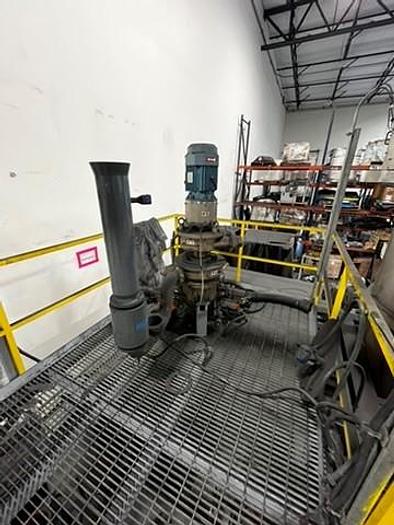

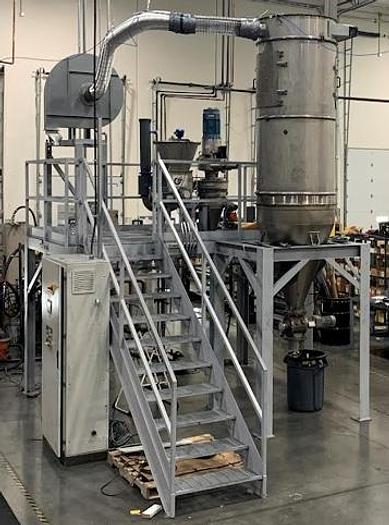

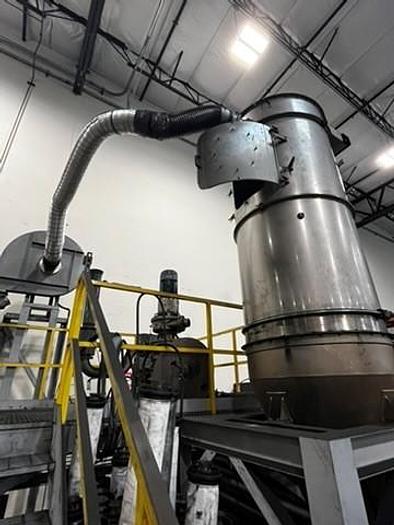

STM Micron Model SDF-200 Air Classifier, stainless steel construction. Rated for a capacity of 300 to 1,200 kg/hr, Raw Material is 5mm, Fineness rated for d.97 : 2 ÷ 100µm Air Capacity rating is 800 m3/h, Noise: 70 dB. New in 2016. Installed Power: 7.5 kW. Includes 18" (450 mm) inside diameter Static body of disintegration chamber, 200 mm diameter, 6,000 RPM, Dynamic basket with (60) slanted fixed blades with antiwear material
Specifications
| Stock Number | 4763720 |

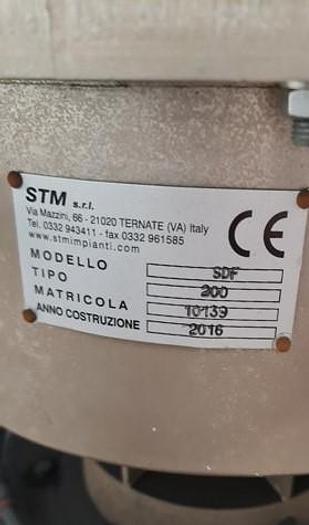

| Manufacturer | STM Micron |
| Model | SDF-200 |
| Year | 2016 |
| HP | 10 |
| Power | 7.5 kW |
| Materials of Construction | Stainless Steel |
| Basis | FOB |
Additional Information

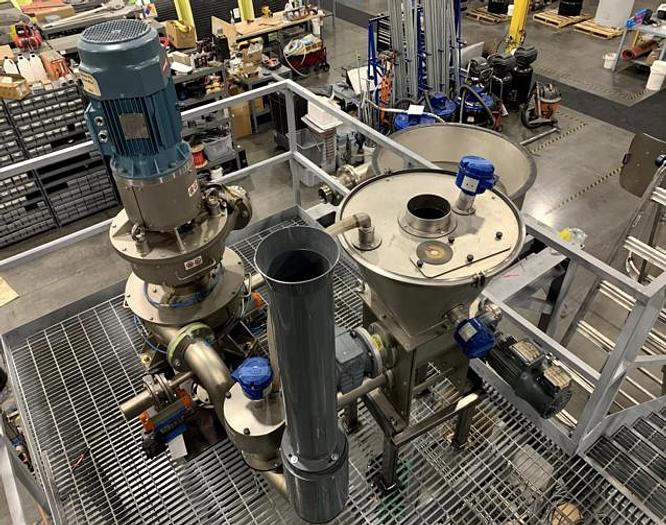

Operating Principle: Material is fed through a star valve into the separator's upper section. Inside, a horizontal selection drum thoroughly classifies the product. Coarse particles hit the walls and descend, while a dual air jet from the ventilator returns the mix to the rotor for further sorting. Coarse particles are released through a star valve at the separator's base, and fine particles are extracted through an outlet tube. Tail gas is released into the atmosphere using the ventilator.
