Pump, Positive, Waukesha, Model 224, 10 HP, Rectangular Flange, Feed Hopper #S745409
Pump, Positive, Waukesha, Model 224, 10 HP, Rectangular Flange, Feed Hopper #S745409
Location:Brisbane, CA
Available quantity:1
Description

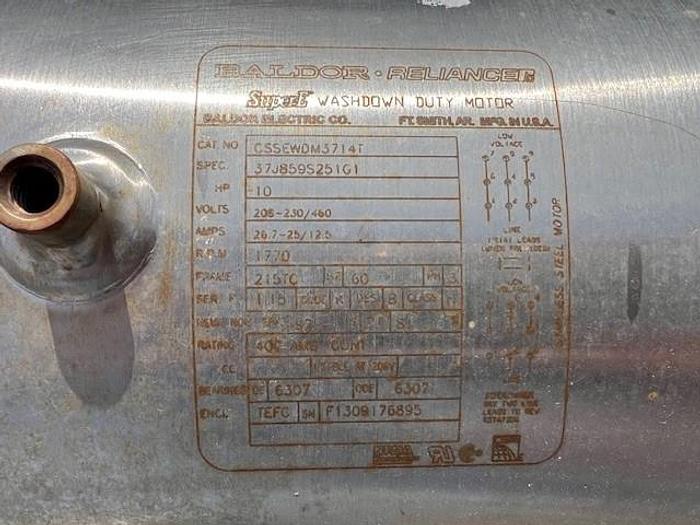

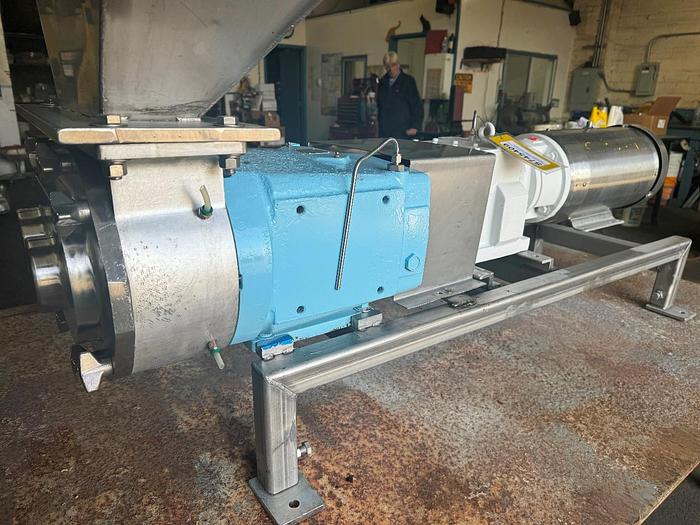

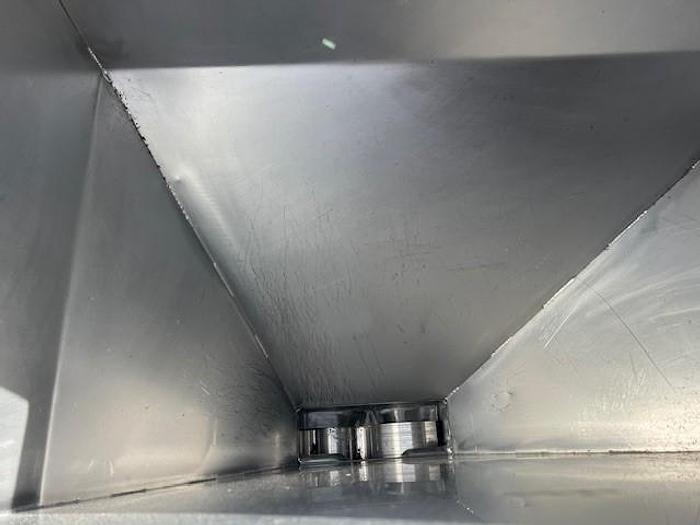

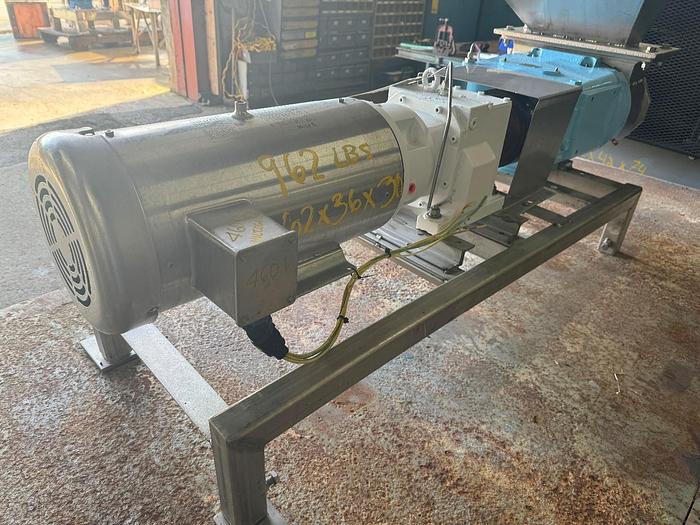

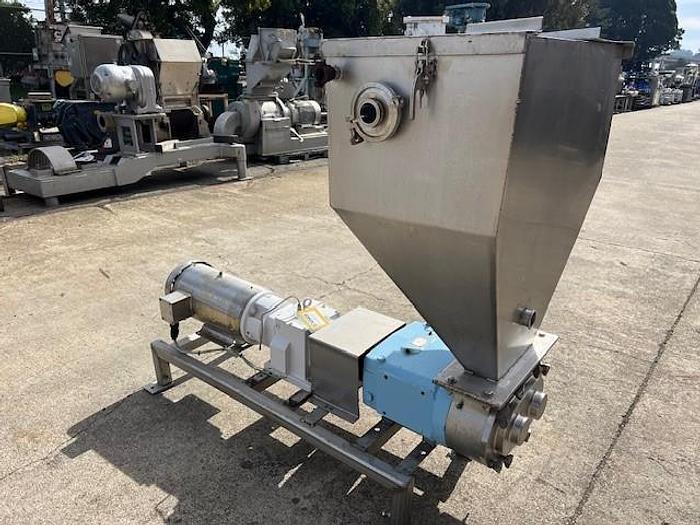

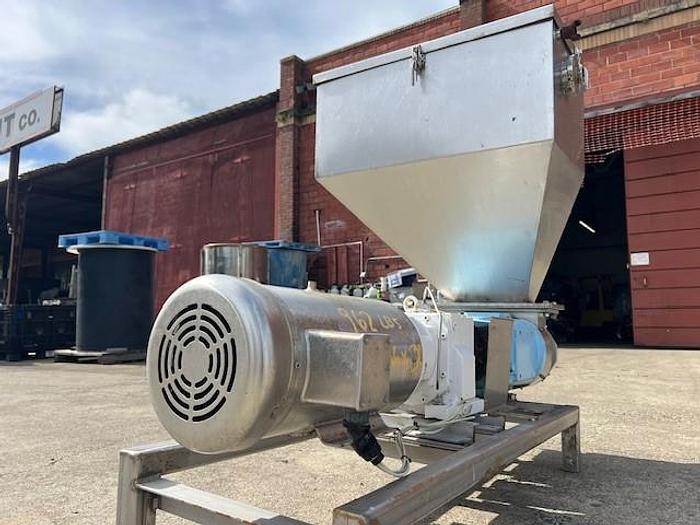

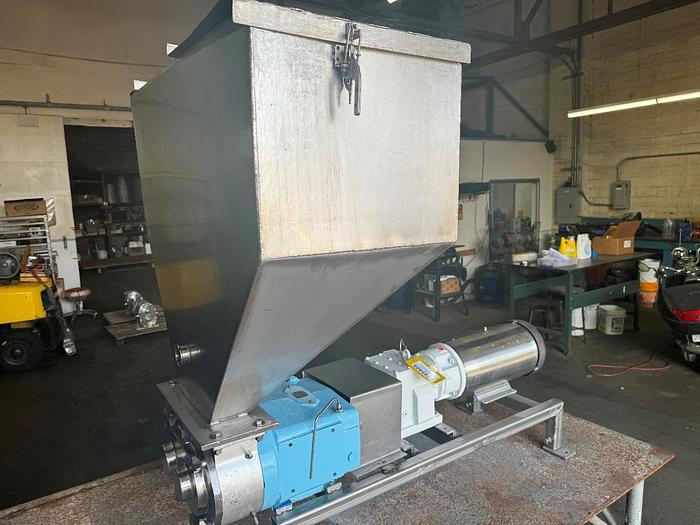

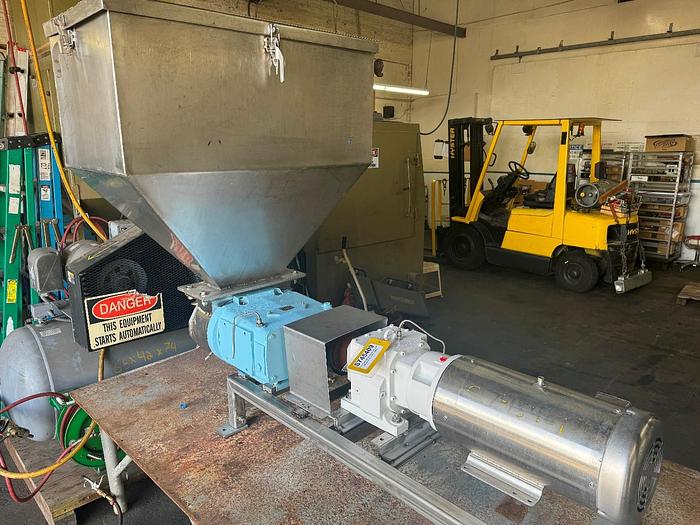

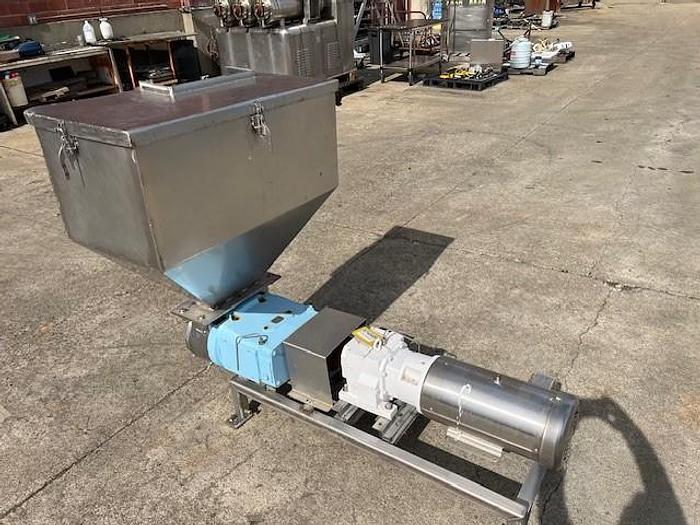

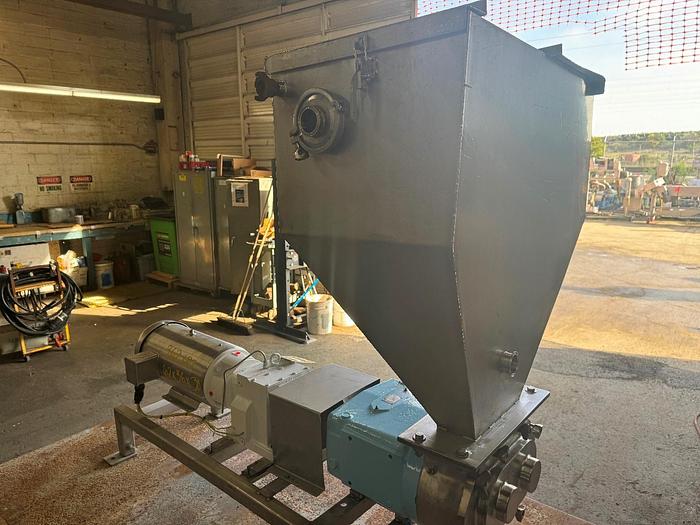

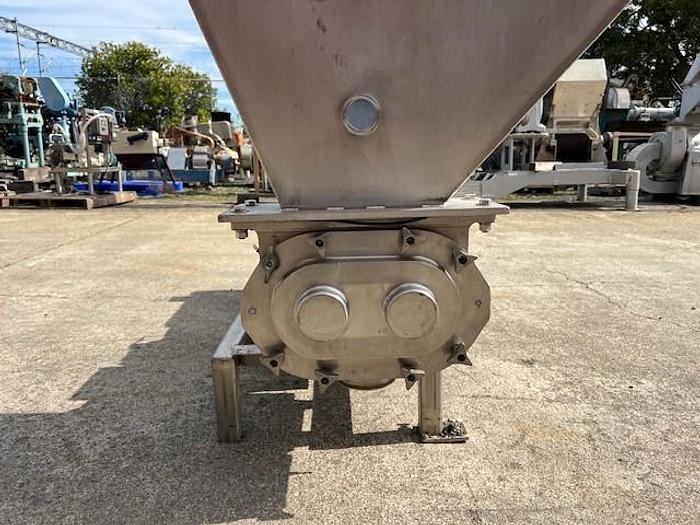

Waukesha Model 224 lobe-type positive displacement pump, driven by 10 HP, 208-230/460 V, 3-phase, 60 Hz, 1770 RPM motor. Pump is set up with vertical feed including stainless steel feed hopper with 4" x 11-1/4" feed opening to pump head, and 4" diameter discharge. Serial number 440172-07. Nominal capacity rated for 208 gallon per minute, 0.521 gallon displacement per resolution, 300 PSI, 400 maximum RPM. Last used at fruit processing facility.
Specifications
| Stock Number | S745409 |
| Manufacturer | Waukesha |
| Model | 224 |

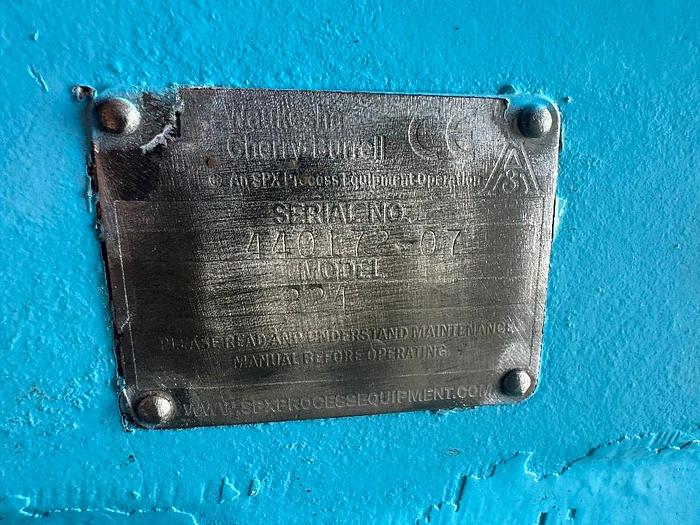

| Serial Number | 440172-07 |
| Inlet and Outlet | 4" x 11.25" Inlet X 4" Outlet |
| HP | 10 HP |
| Contact Parts | Stainless Steel |
| GPM | 208 GPM |
| Basis | FOB |
Additional Information
Manufacturer details - This pump is specifically designed to pump "unpumpable" products such as dough, meat emulsion, puddings and cheese, that cause bridging and cavitation in conventional pumps. The large easy entry anti-cavitation ports allow efficient pumping of high viscosity fluids, slurries or even liquids with large chunks or particles.
