Labeler, Wraparound, Inline Packaging Systems, Model 700VS #C745459
Labeler, Wraparound, Inline Packaging Systems, Model 700VS #C745459
Location:San Dimas, CA
Available quantity:1
Description
Inline Packaging Systems Paradigm 700VS Wraparound Labeler features adjustable label heights from 1" to 4.5", and lengths from 1" to 14". It operates at variable speeds up to 1,000 IPM, achieving a maximum rate of 100 labels per minute. The label gap ranges from a standard 1/8" to 1/4" on some configurations. With a core diameter of 3", it supports rolls up to 12" in diameter. Product and label detection are facilitated by photoelectric eye systems. It operates on 120 VAC at 60 Hz with a 10-amp electrical requirement and optionally uses compressed air at 3-4 CFM at 60 PSI. Standard conveyor dimensions include a length of 72", height of 36", and width of 4 1/2", driven by a 1/10 HP AC geared motor. Serial number: P-1221.
Constructed of stainless steel and equipped with threaded leveler legs. Includes touchscreen controller. With electrical specifications of 120 Volts and 60 Hz. Last used in food application.
Specifications
| Stock Number | C745459 |
| Manufacturer | Inline Packaging Systems |
| Model | 700VS |
| Serial Number | P-1221 |
| Capacity | 100 Labels/Minute |
| Label Height | 1" to 4.5" |
| Label Width (Length) | 1" to 14" Long |
| Type | Wraparound Labeler |
| Previous Use | Food Packaging |
| Basis | FOB |
Additional Information

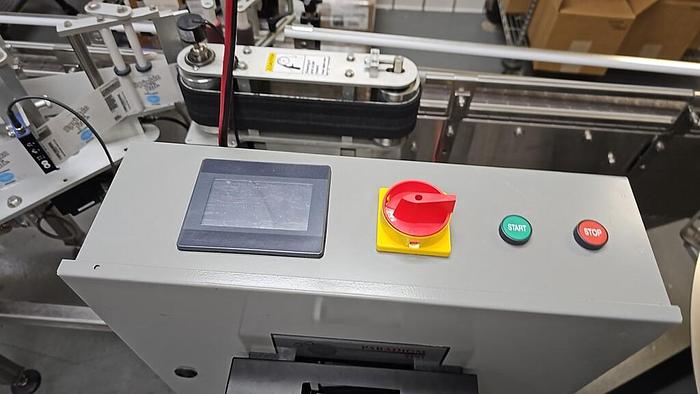

Manufacturer Details: The Paradigm Label Applicator is a fully automatic applicator capable of applying labels to a variety of products. Products to be labeled are sensed as they pass a photo-eye. The photo-eye initiates a signal that is transmitted to the PLC. After a fully adjustable delay, the label is dispensed onto the passing product. For flat panels a wipe brush completes label application by wiping down the label onto the product. For round products, the bottle spins between a powered belt and back compression pad, “wrapping” the label onto the round container. Controls consist of a main power switch, and a Touchscreen operator interface which provides information and access to the label delay, label gap delay, batch count, speeds and more. Manufactures phone number: (843) 569-2530.
