Mixer, Ribbon, 35 Cubic Feet, Stainless Steel, 15 HP, Double #5554503
![Used Mixer, Ribbon, 35 Cubic Feet, Stainless Steel, 15 HP, Double #5554503](https://i.machineryhost.com/ccd45007df44dd0f12098f486e7e8a0f/ba77cbd93e508757b1072402cd046e1c/large-used-mixer-ribbon-35-cubic-feet-stainless-steel-15-hp-double-5554503.jpg)
Mixer, Ribbon, 35 Cubic Feet, Stainless Steel, 15 HP, Double #5554503
Location:San Dimas, CA
Available quantity:1
Description

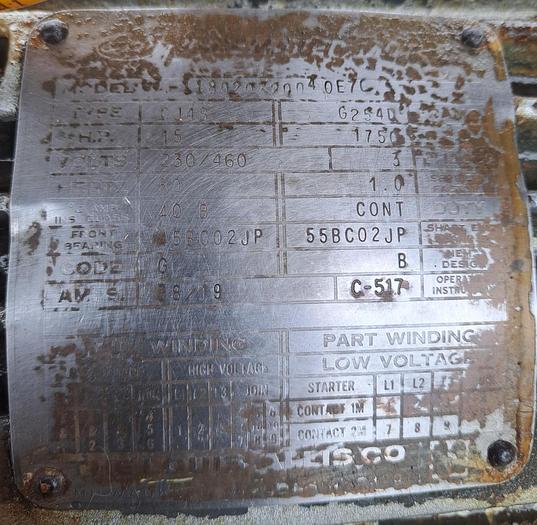

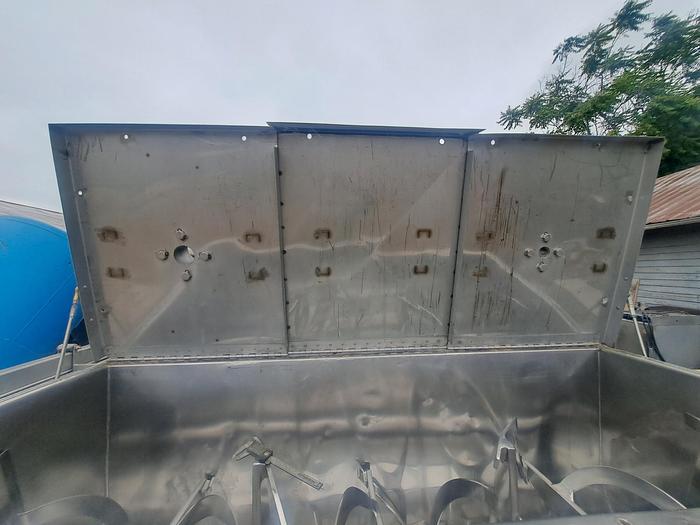

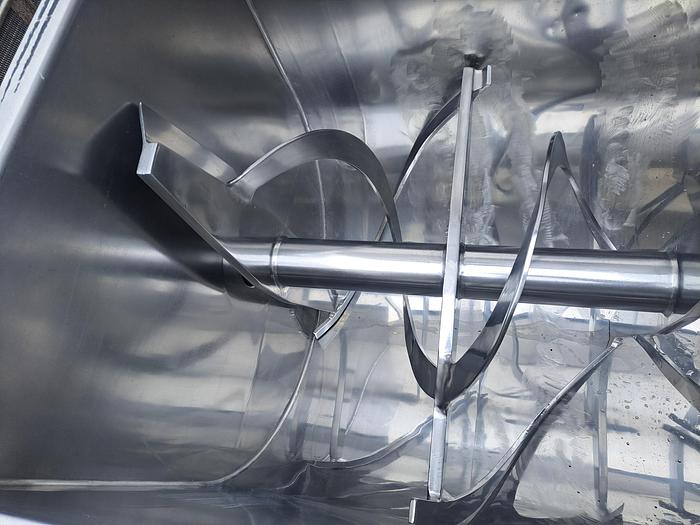

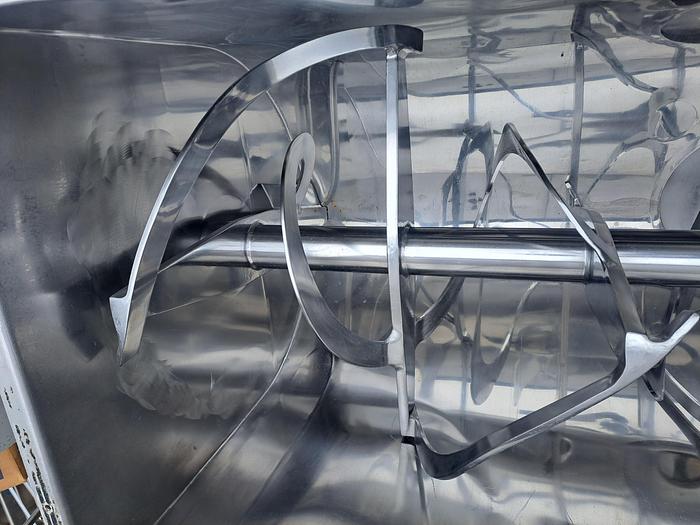

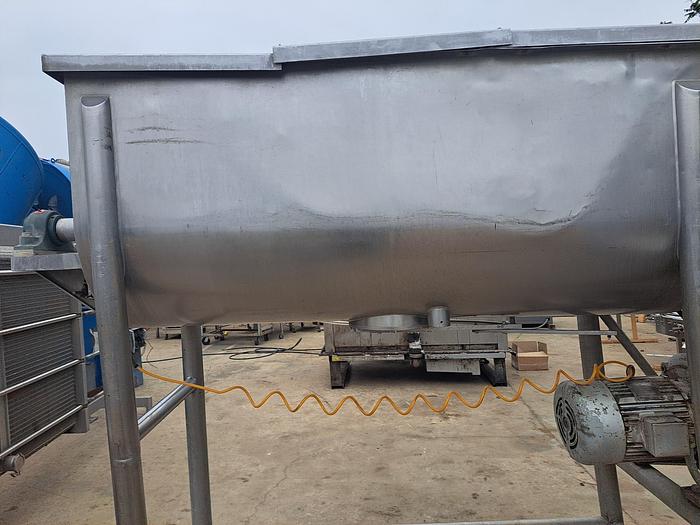

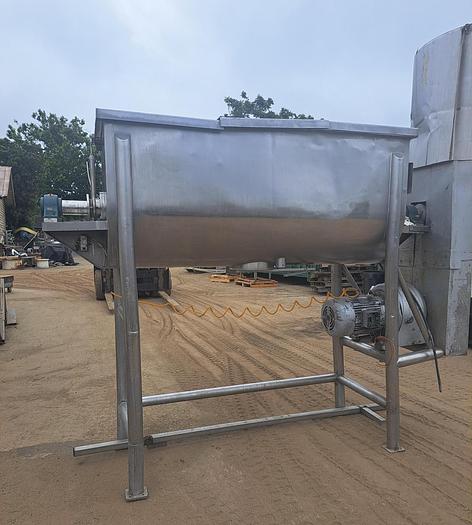

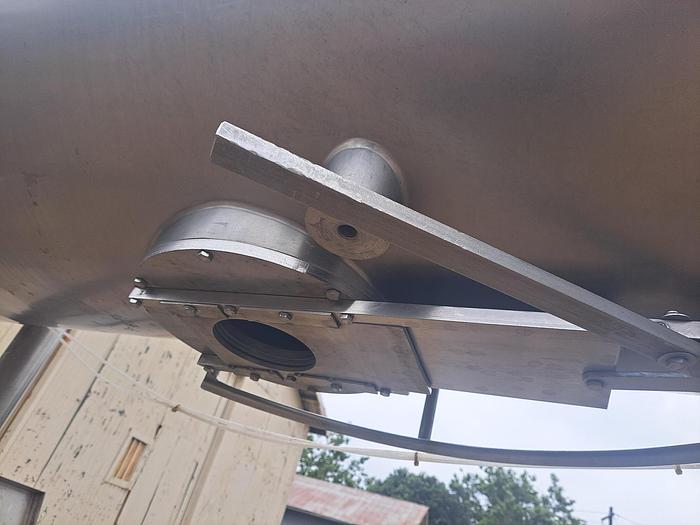

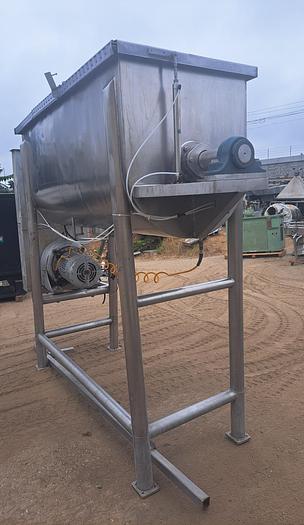

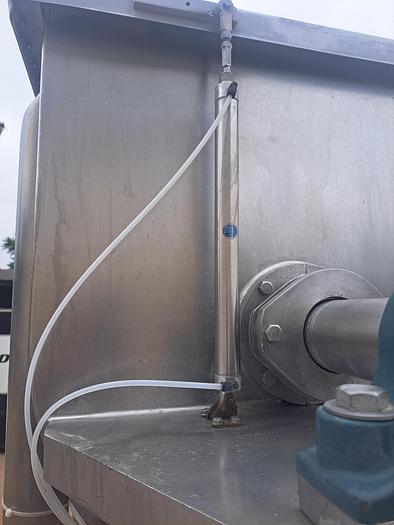

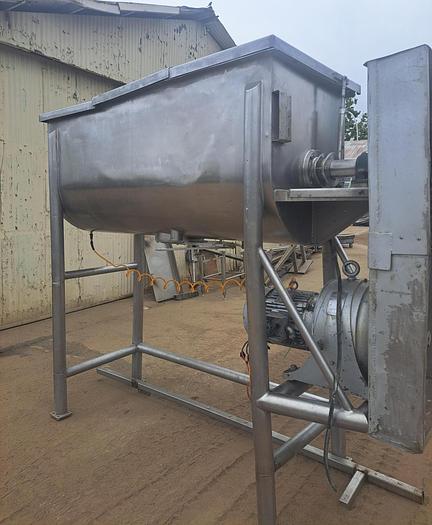

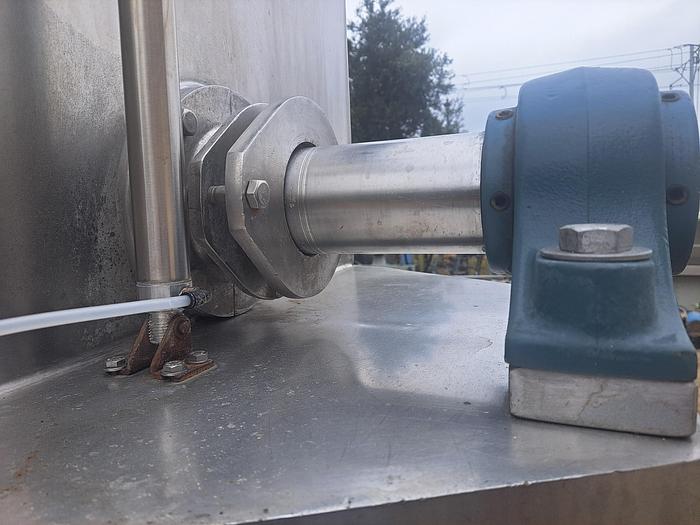

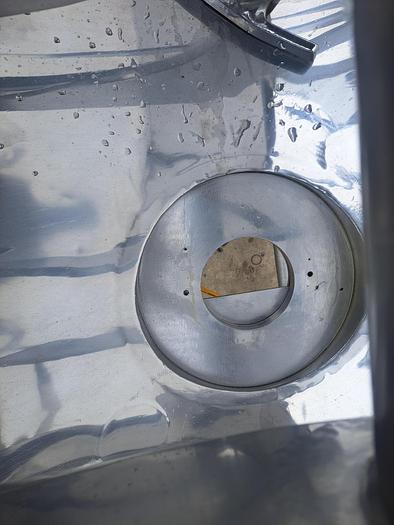

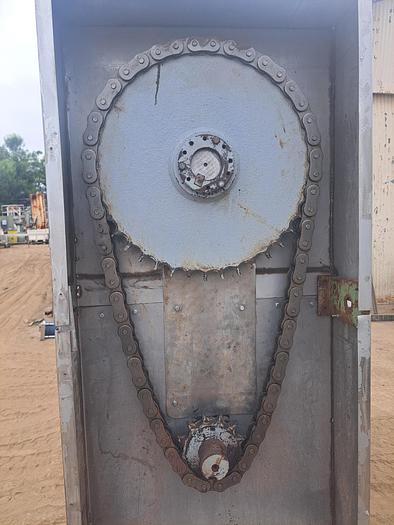

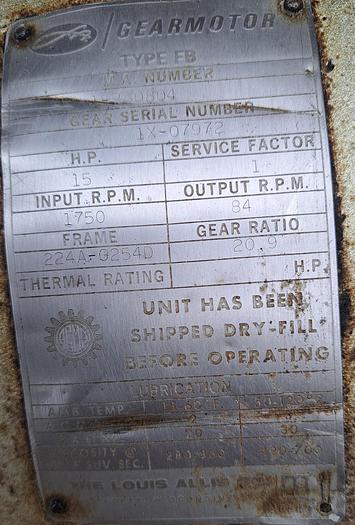

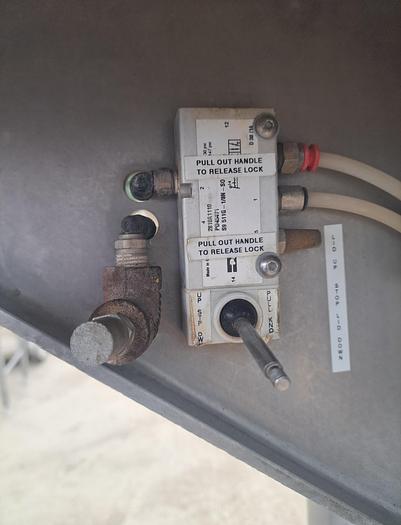

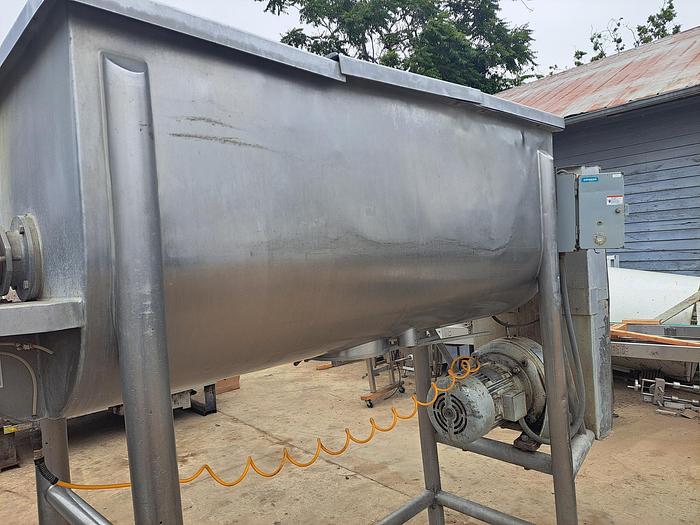

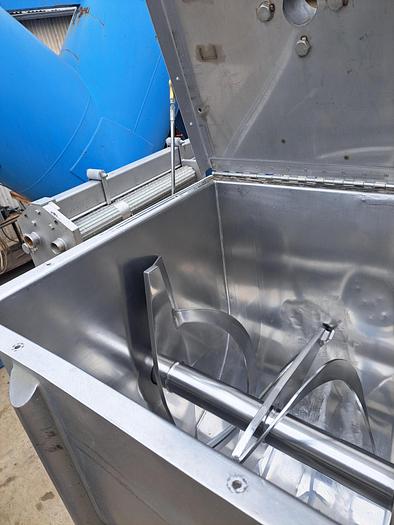

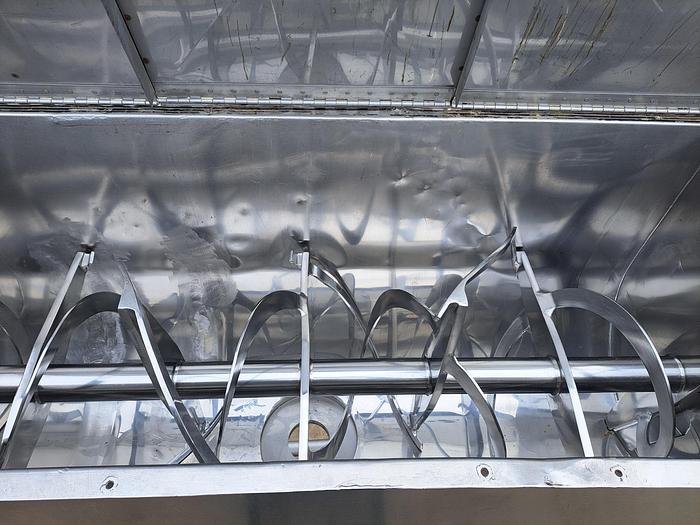

Stainless Steel double ribbon mixer, approximately 35 Cubic Feet Double Ribbon Blender, Model 35 Cu/Ft, 304 stainless construction. Trough measures 30" wide x 78" long x approximately 32" deep, 5" manual diameter center bottom outlet. Ribbon assembly includes 3-1/2" diameter center shaft, 2" wide x 1/4" thick inner ribbon, 1-1/2" wide x 3/8" thick outer ribbon, welded to 1" diameter posts. Includes outboard roller bearings, packing glands and air actuated top hinged cover. Driven by 15 HP 230/460 V, 1750 RPM, 3/60 Hz motor with gear reducer ratio: 20.9 to 1, 84 output RPM to chain & sprocket assembly. Top includes 3-piece cover, along with (2) top inlets in the two outside lids. Mixer is unitized on stainless steel frame with casters. Previously mixing 600 kg, (1,322 pounds) of powdered supplements.
Specifications
Stock Number | 5554503 |
Cubic Feet | 35 |
HP | 15 |
Type | Double Ribbon Mixer |
Previous Use | Blending of Supplements |
Basis | FOB |
