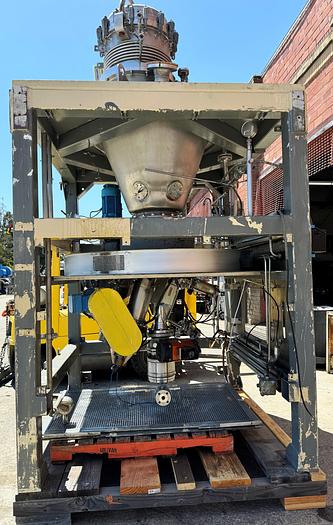

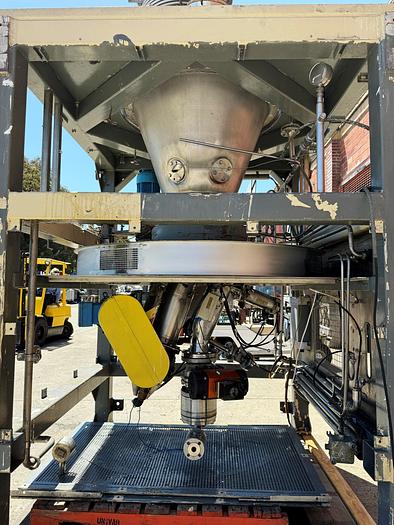

Dryer, Conical, 13.5 CF, Stainless Steel, Krauss Maffei, Titus-Mixer-Dryer #5562509

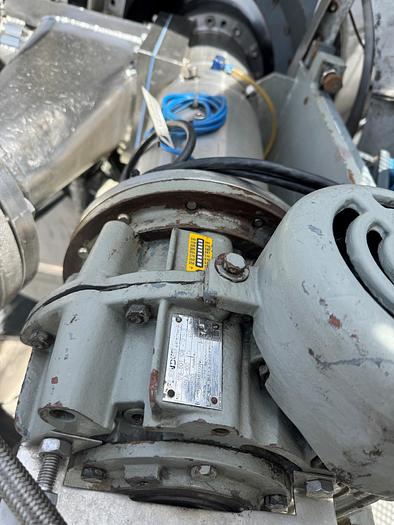

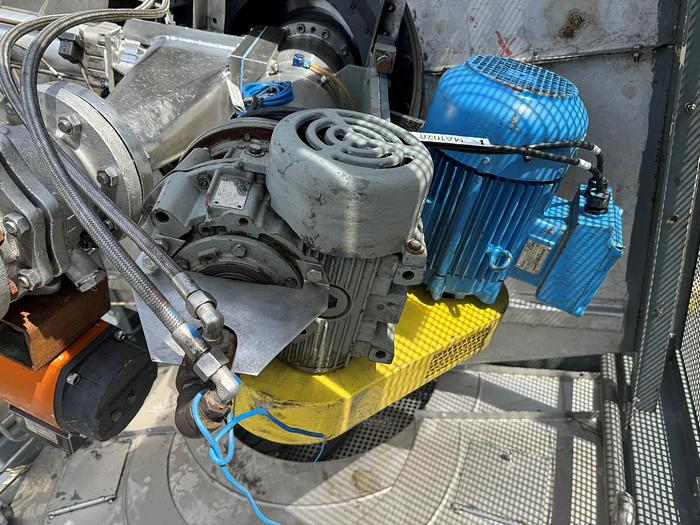

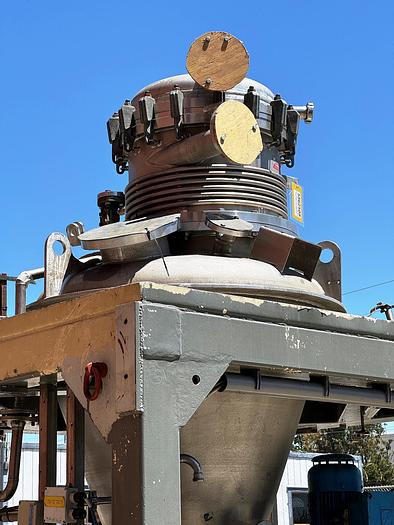

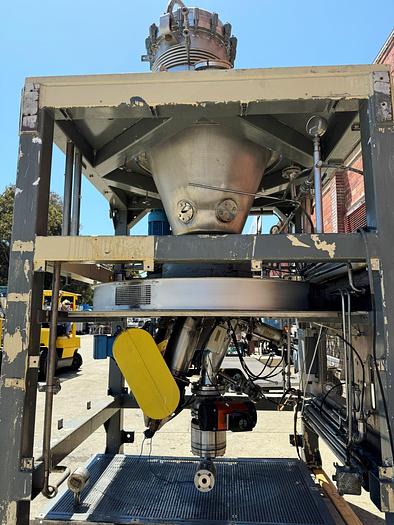

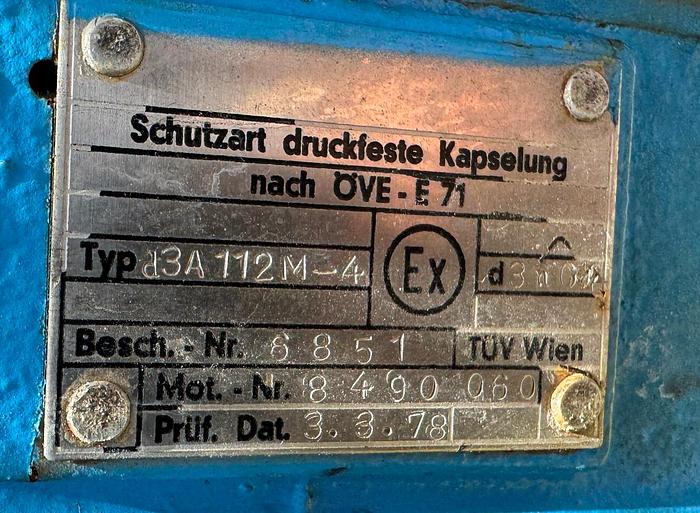

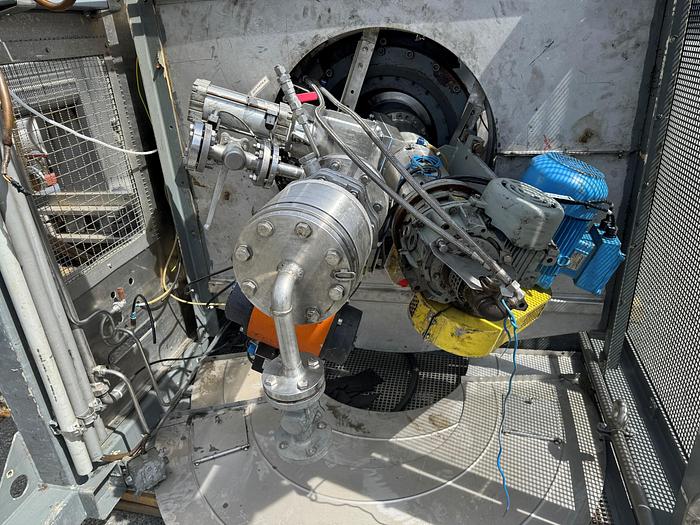

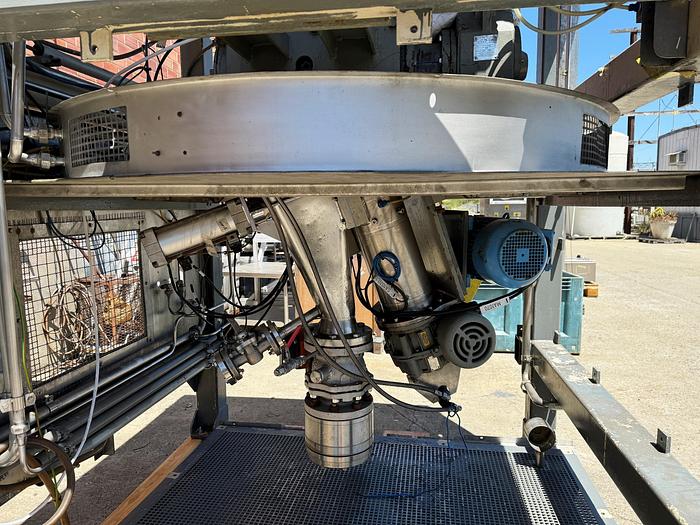

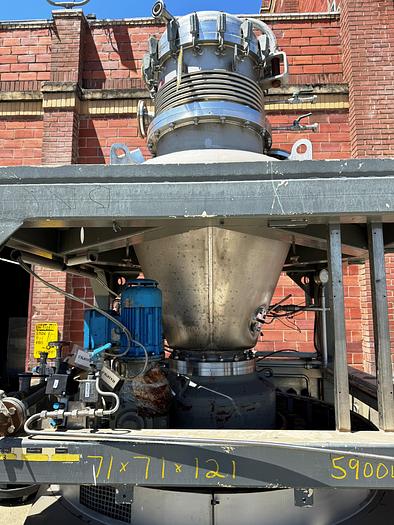

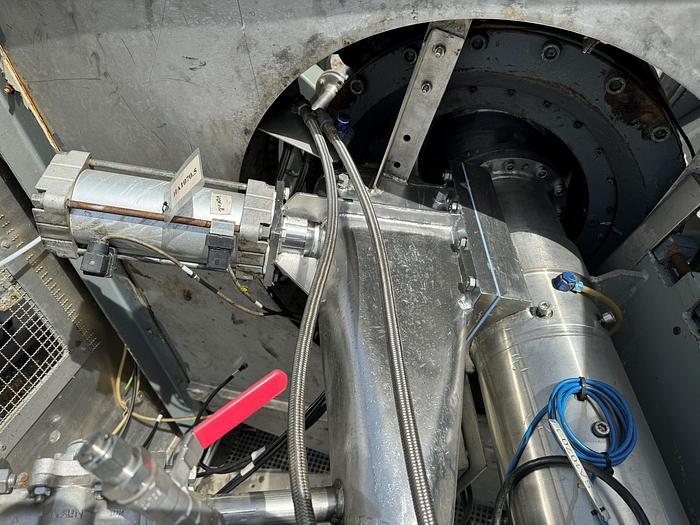

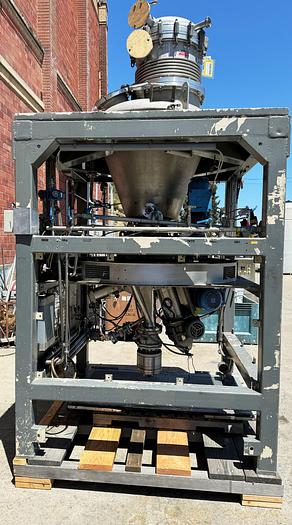

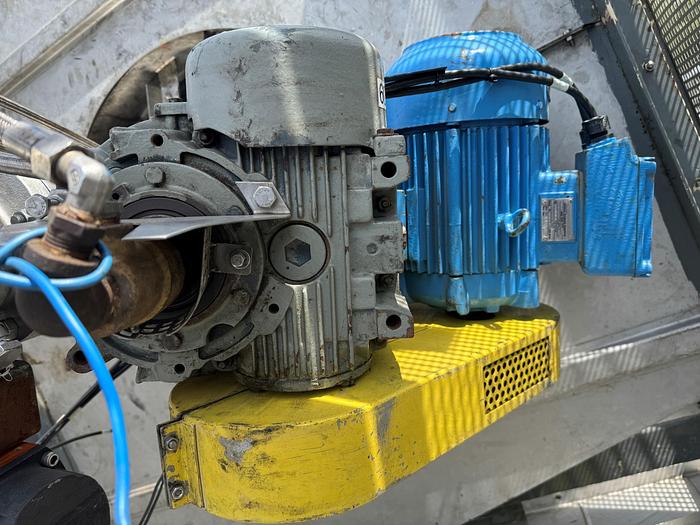

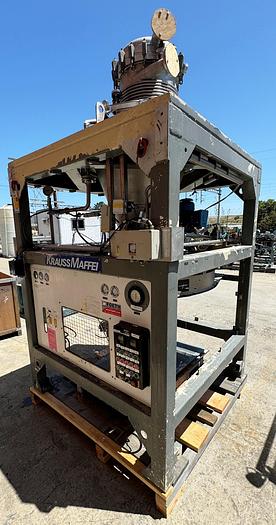

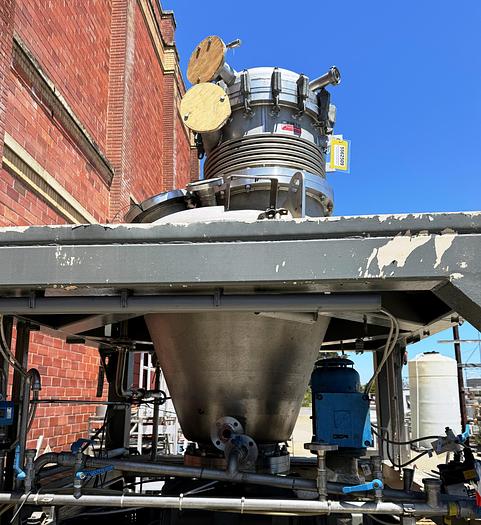

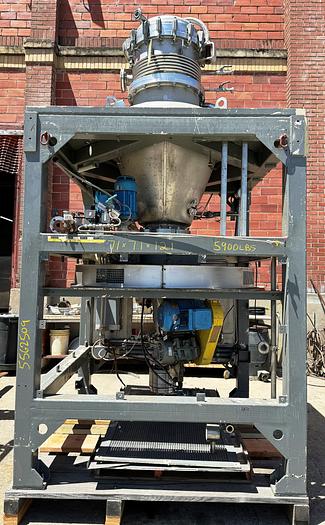

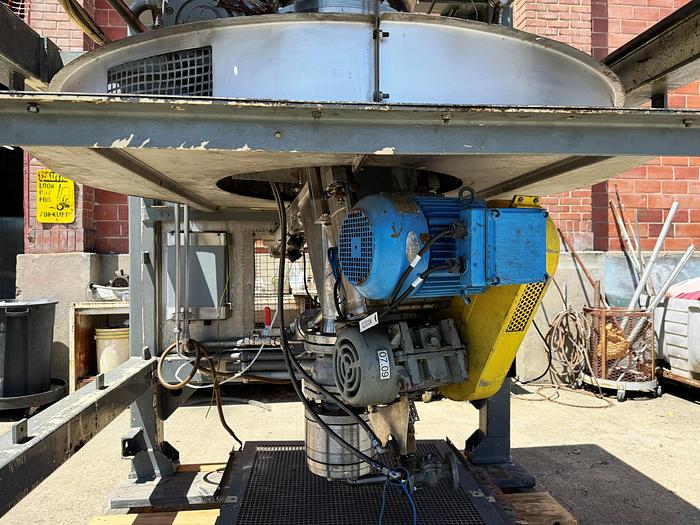

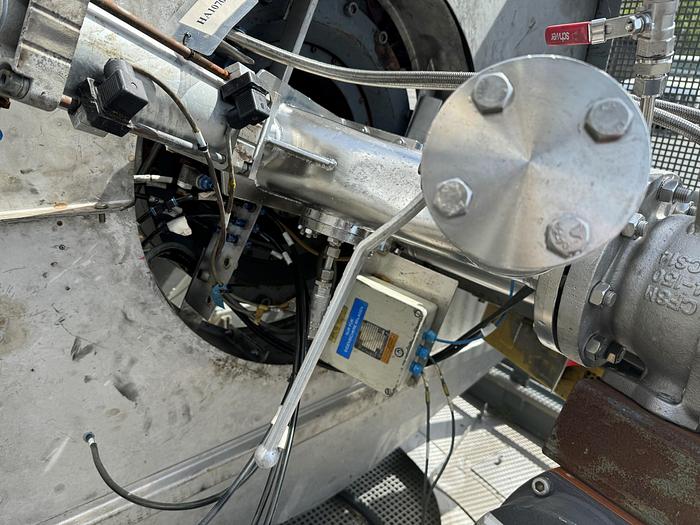

Krauss Maffei Conical Dryer, Model TMD 0.25/160 "Titus-Mixer-Dryer," constructed from stainless steel 1.4571 (316Ti). This unit features a working pressure of 3 Bar (43.5 PSI) (vacuum possible), jacket working pressure of 6 Bar (87 PSI), and a capacity of 380 Liters (useful capacity 250 Liters). The cone measures 1016mm (40") in diameter and 1066mm (42") in height, with a dished top and a jacketed mixing screw (6 Liters). Powered by a 4.0 kW + 1.5 kW motor, 380 Volt (explosion-proof), and a jacket volume of 96 Liters. It operates at a maximum temperature of 165°C and has a 150mm (6") bottom outlet. Manufactured in 1995, the dryer is mounted on a frame, includes switchgear, and is ATEX compatible. Dimensions are 2.0m x 2.0m (6.6' x 6.6') with a total height of 3.5m (11.5'), weighing 2650 KG. Serial Number 7005/742904/3.
