Valve, Rotary, Airlock, 10" Diameter, Stainless Rotor , 1 HP #5674438
![Used Valve, Rotary, Airlock, 10", Carbon Steel, 1HP #5674438](https://i.machineryhost.com/ccd45007df44dd0f12098f486e7e8a0f/98d0d33fec2f7107e8f0339071e7cd79/large-used-valve-rotary-airlock-10-carbon-steel-1-hp-5674438.jpg)
Images
Videos
Valve, Rotary, Airlock, 10" Diameter, Stainless Rotor , 1 HP #5674438
Location:San Dimas, CA
Available quantity:1
Description

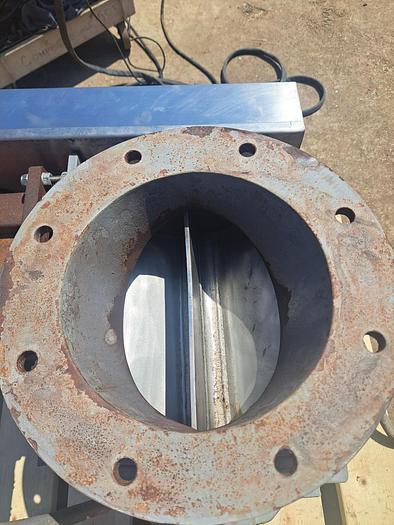

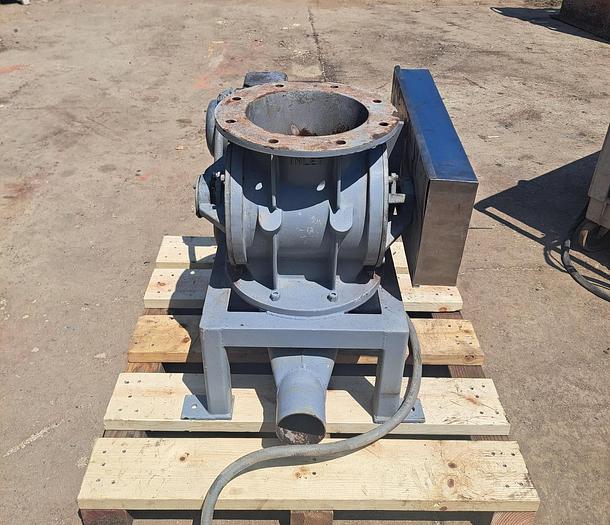

Rotary airlock valve, convey-thru style, 10" diameter, stainless steel rotor with carbon steel housing. Measures 10" diameter and 12" in length. The unit has a 10" diameter inlet, and two 4" diameter side bottom discharge outlets. Driven by 1 HP motor operating at 230/460V and 1730 RPM, the airlock has a final RPM of 30 through a gear reducer with a ratio of 57.66:1.
Specifications
Stock Number | 5674438 |

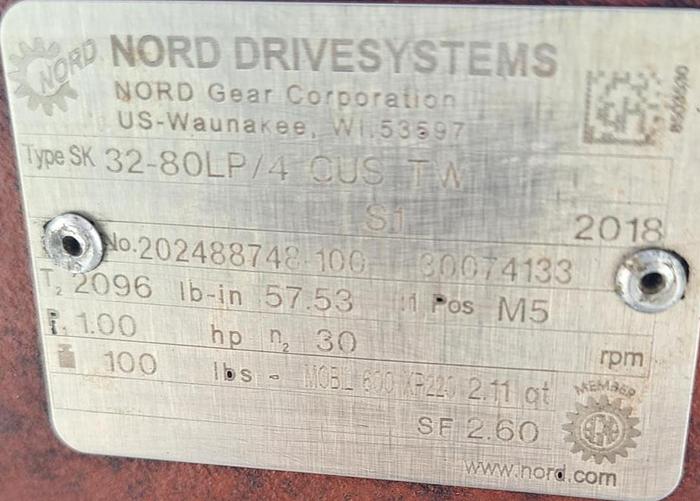

Manufacturer | Nord Gear Corporation |
Model | SK 32-80LP/4 |
Year | 2018 |
Serial Number | 202488748-100 |
Diameter | 10" |
HP | 1 |
Materials of Construction | Stainless Steel Rotor |
Inlet and Outlet | (2) 4" diameter side bottom |
Basis | FOB |
