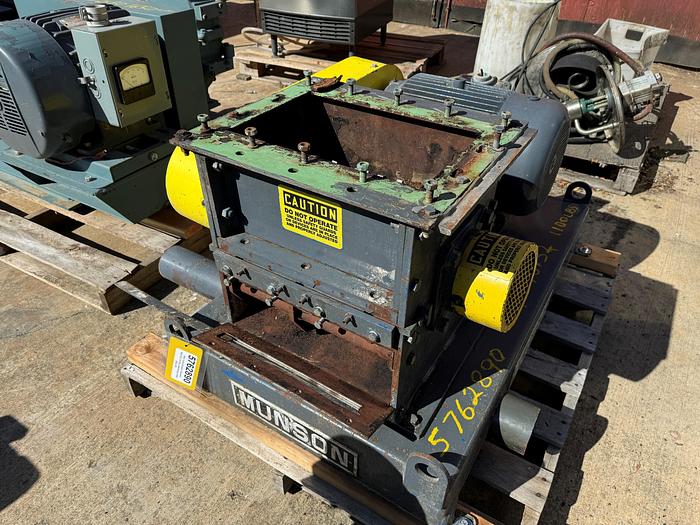

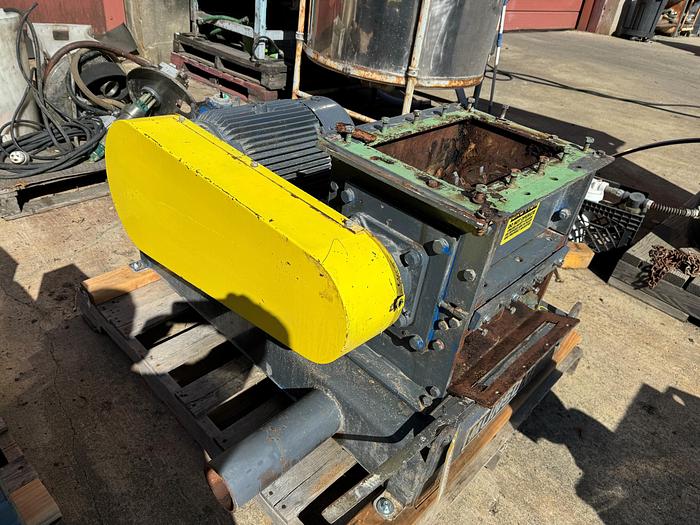

Mill, Cutter, Munson, Mdl SCC-15-MS, Classifying Cutter, #5762890

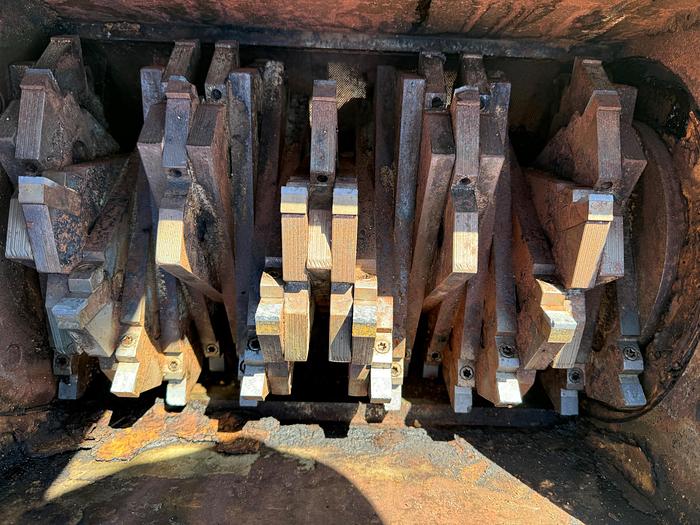

Munson Model SCC-15-MS Screen Classifying Cutter, includes 15" long X 11" diameter rotor, driven by 20 HP motor, rated for 230/460V, 3/60Hz. The cutter's 11 in. (279 mm) wide infeed throat houses a 10.5 in. (267 mm) diameter solid-mass rotor comprised of "interconnected parallelograms" each of which holds two, half-inch wide (12.7 mm wide) cutter tips that shear materials against twin, stationary bed knives at lower rotor speeds, and additionally impart high impact at higher RPM. Serial number 9020. Designed to reduce friable, semi-friable, fibrous, semi-hard and hard materials into controlled particle sizes at high rates down to 20 mesh or less with minimum fines. Last used in the production of vitamins.
