Mill, Attrition, 24", Munson, Mdl K9V-24, 25 HP, #5762897
![Used Mill, Attrition, 24", Munson, Mdl K9V-24, 25 HP, #5762897](https://i.machineryhost.com/ccd45007df44dd0f12098f486e7e8a0f/4db5a6ca60c95001fcf0db7bd7cb5dd6/large-used-mill-attrition-24-munson-mdl-k9-v-24-25-hp-5762897.jpg)
Mill, Attrition, 24", Munson, Mdl K9V-24, 25 HP, #5762897
Location:Brisbane, CA
Available quantity:1
Description

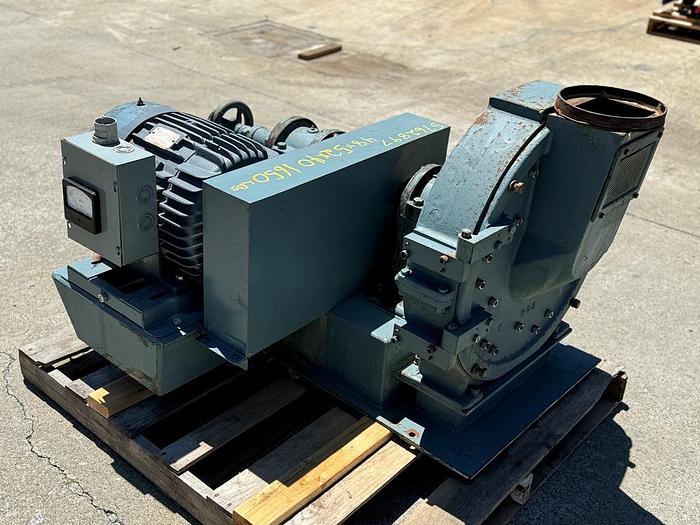

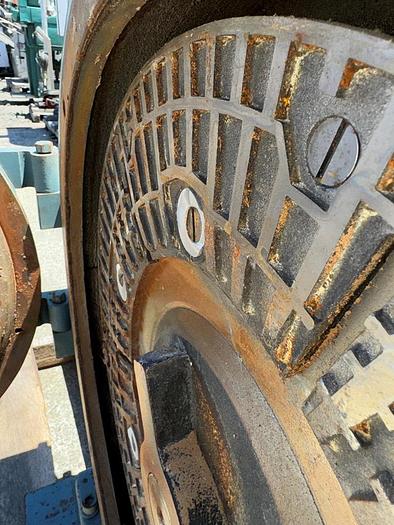

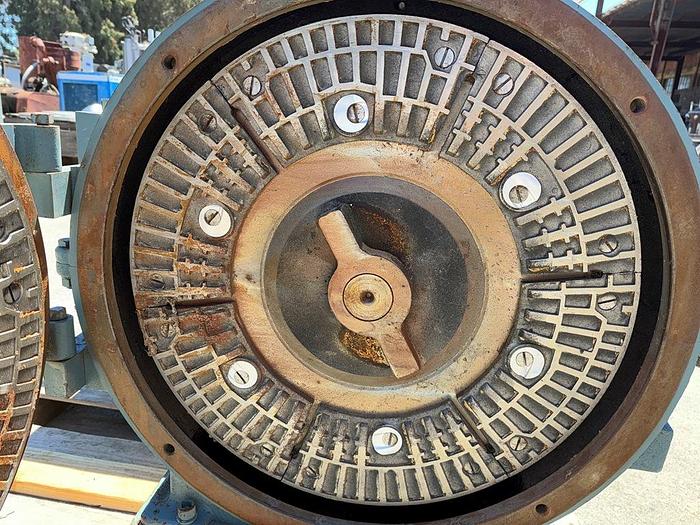

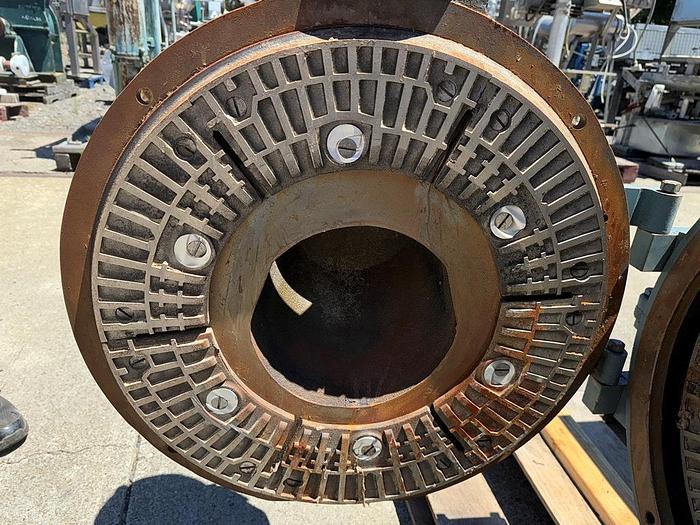

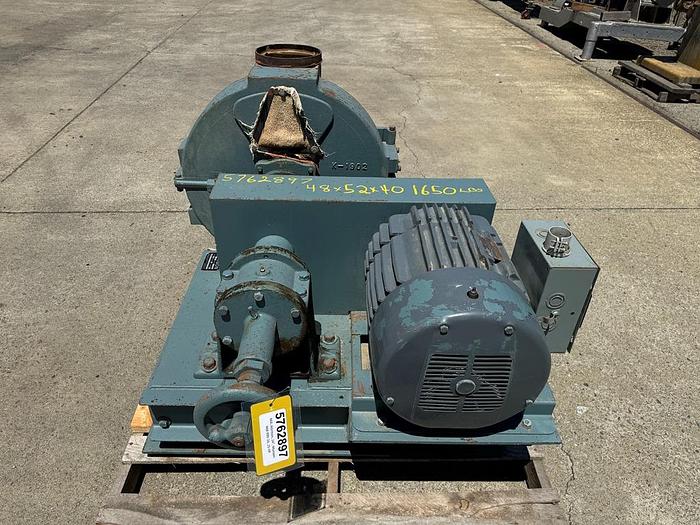

Munson Model K9V-24 attrition mill, 24" diameter disc diameter, driven by 25 HP, 3600 RPM, 230/460V, 3/60Hz motor. Includes pipe feed into milling chamber. Mill and drive are unitized on frame and include manual adjustment for disc spacing to control fineness of product. Attrition Mills from Munson Machinery are ideally suited for reducing fibrous and friable materials within a relatively narrow particle size range from coarse down to 100 mesh. Previously used to grind bran.
Specifications
Stock Number | 5762897 |
Manufacturer | Munson |
Model | K9V-24 |
Serial Number | FM-1878M |
Chamber Dimensions | 15" x 11" |
Type | Screen Classifying Cutter |
HP | 15 (Estimate) |
Previous Use | Grinding Bran |
Basis | FOB |
Additional Information
Typical applications include materials that cannot be reduced by impact (hammer mills or pin mills) or by screen classification (screen classifying cutters) including: seeds, grains, spices, tobacco, roots, cellulose, fibers, minerals, metal powders and other products.
