Mill, Pin, 160 mm, Frewitt, PM-Lab, Stainless Steel, #5880226
![Used Mill, Pin, 160 mm, Frewitt, PM-Lab, Stainless Steel, #5880226](https://i.machineryhost.com/ccd45007df44dd0f12098f486e7e8a0f/1d2322b2808d293f1ea120071ab98ec8/large-used-mill-pin-160-mm-frewitt-pm-lab-stainless-steel-5880226.jpg)
Mill, Pin, 160 mm, Frewitt, PM-Lab, Stainless Steel, #5880226
Location:Brisbane, CA
Available quantity:1
Description

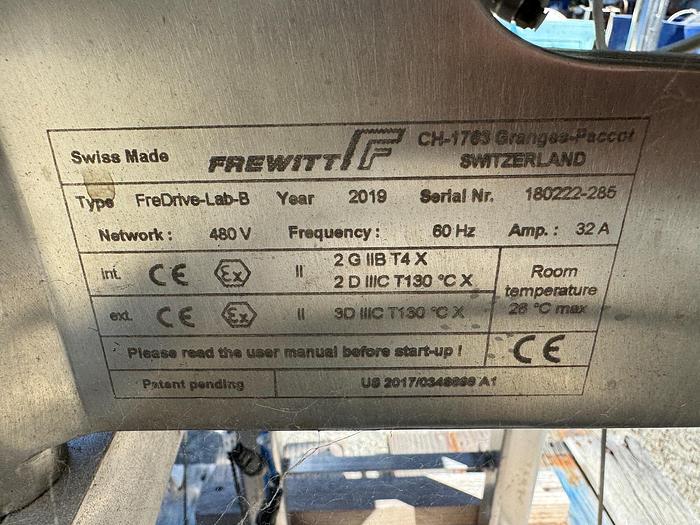

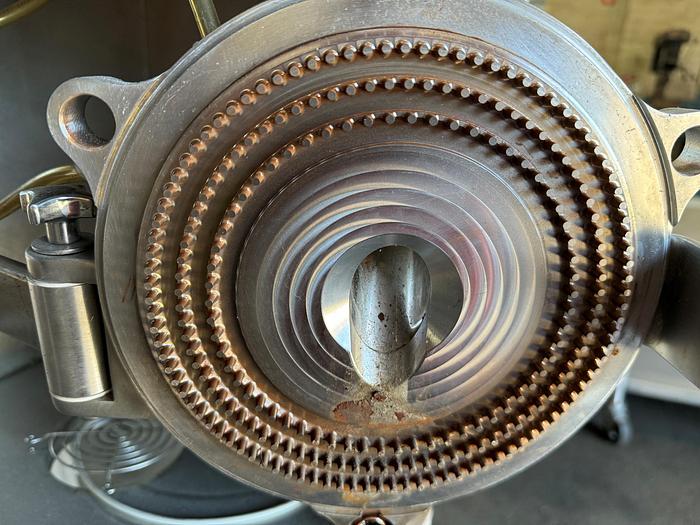

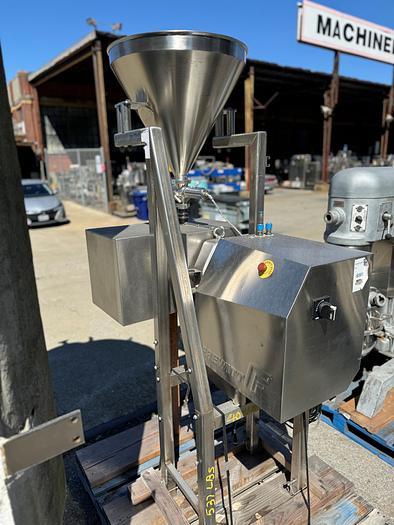

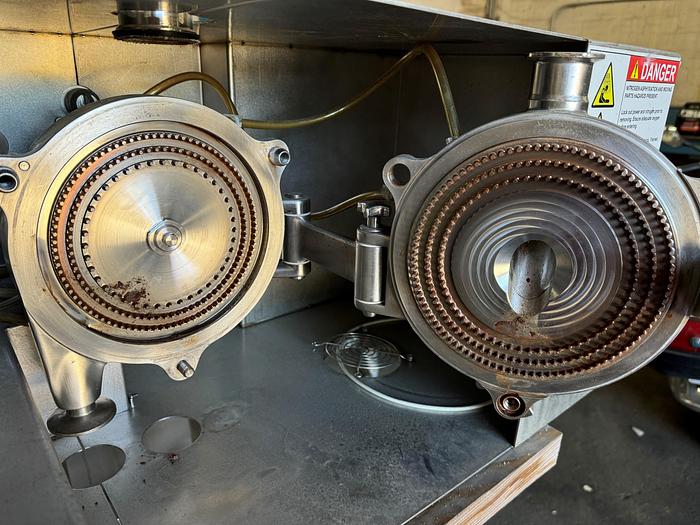

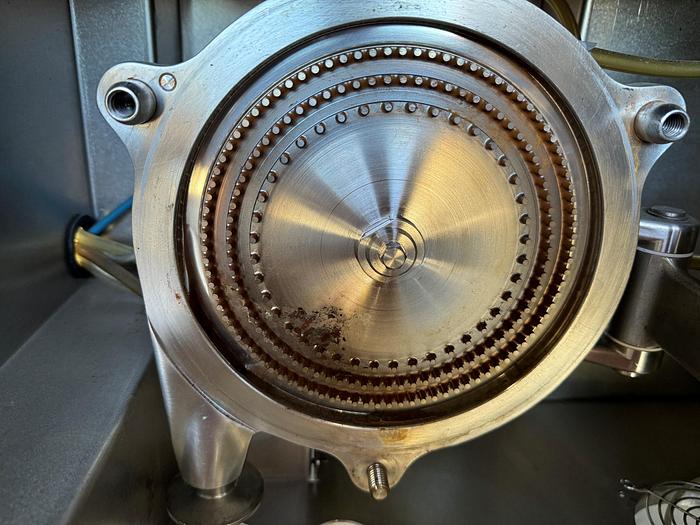

Frewitt PM-Lab Pin Mill, includes stainless steel feed hopper with 20" diameter top and 60º cone bottom, leading to 2-1/2" diameter discharge, feeding into milling chamber. Front cover includes port for nitrogen feed. Product discharges through 3/4" diameter outlet. Capable of up to 7 Nm torque capacity. Manufactured by Frewitt, type MA-FreDrive-PM-Lab, project number PRO-18-0222, serial number 491963. Mounted on stainless steel stand.
Specifications
Stock Number | 5880226 |
Manufacturer | Frewitt |
Model | PM-Lab |
Serial Number | 491963 |
Diameter | 6.3" (160 mm) |
Materials of Construction | Stainless Steel |
Previous Use | Nano materials |
Discharge Size | Down to 10 microns |
Basis | FOB |
Additional Information
Manufacturer specifications (based on FlexMill-Lab PM-160): The FlexMill-Lab PM-160 is a high-performance pin mill designed for pulverizing hard or crystalline products to a particle size down to D90 of 10 μm. Ideal for processing small-scale laboratory batches of 50 g to 2 kg, it can also be used for pilot-scale production with a capacity of 30–150 kg/h.
