Pump, Positive, Alfa Laval, Mdl SX 47046, 2 HP, 2" In/Out, #5880229
![Used Pump, Positive, Alfa Laval, Mdl SX 47046, 2 HP, 2" In/Out, #5880229](https://i.machineryhost.com/ccd45007df44dd0f12098f486e7e8a0f/bb1c6d67b14519f374647a17260057ac/large-used-pump-positive-alfa-laval-mdl-sx-47046-2-hp-2-in-out-5880229.jpg)
Pump, Positive, Alfa Laval, Mdl SX 47046, 2 HP, 2" In/Out, #5880229
Location:Brisbane, CA
Available quantity:1
Description

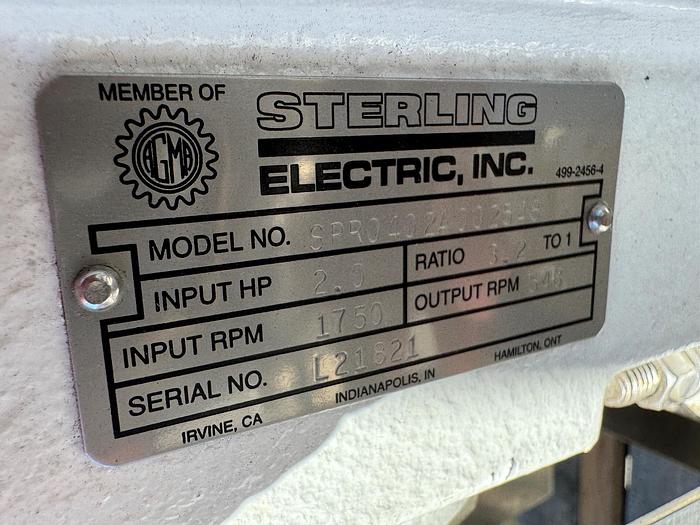

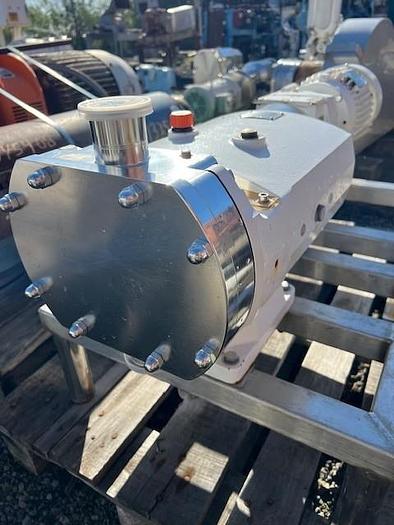

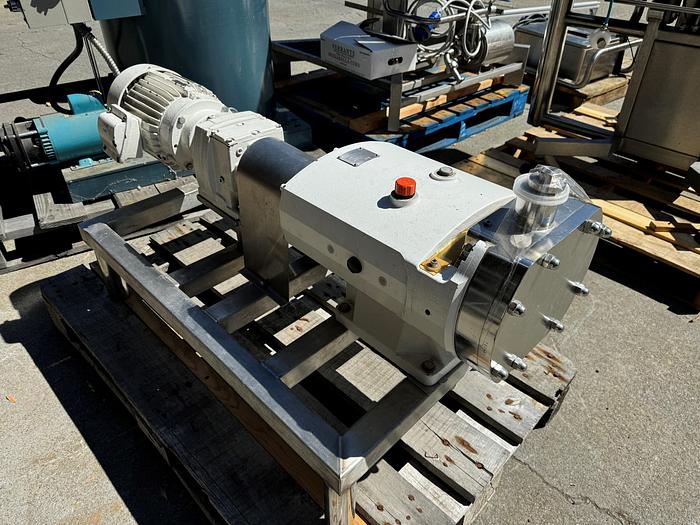

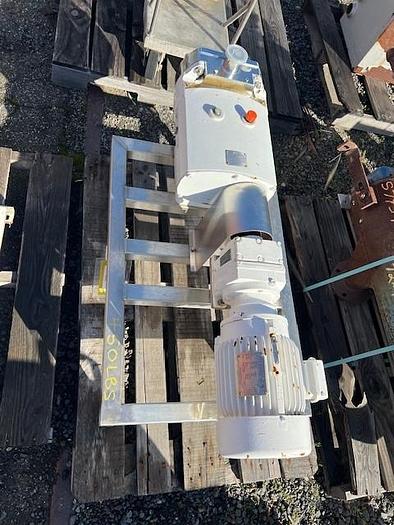

Alfa Laval Type SX 47046 positive displacement pump with top feed and bottom discharge, all stainless steel contacts, 3A dairy grade, serial number 436702 FCX. Lobes are driven by 2 HP motor, 230/460V, 1715 RPM, 3/60Hz, thru Sterling gearbox with 3.2:1 ratio, 548 output RPM to pump head. Product is fed through 2" diameter inlet located at the top of the pump head and 2" diameter discharge at the bottom of pump. Inlet/outlet include tri-clamp connections. Last used in production of cheese. Unitized on stainless steel stand.
Specifications
Stock Number | 5880229 |
Manufacturer | Alfa Laval |
Model | SX 47046 |

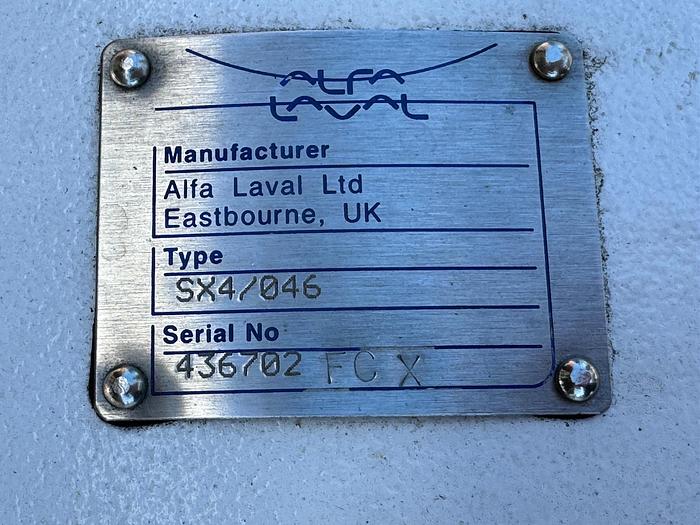

Serial Number | 436702 FCX |
Inlet and Outlet | 2" Diameter |
HP | 2 |
Materials of Construction | Stainless Steel (3A dairy grade) |
Previous Use | Dairy Processing |
Basis | FOB |
