Mill, Attritor, Lab Size, HDDM-01, 1 HP, Portable, #5990942
Mill, Attritor, Lab Size, HDDM-01, 1 HP, Portable, #5990942
Location:Brisbane, CA
Available quantity:1
Description

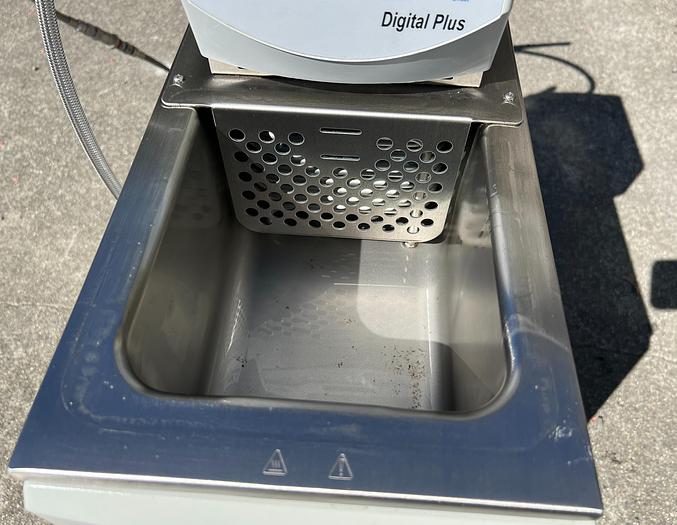

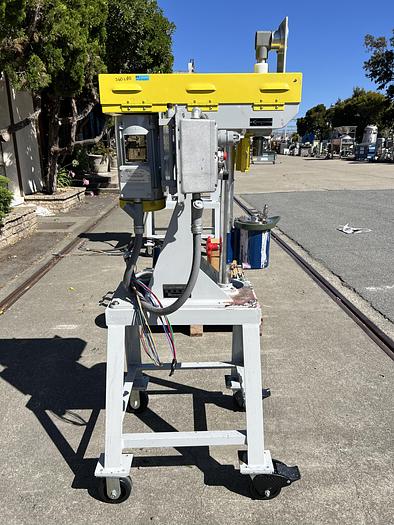

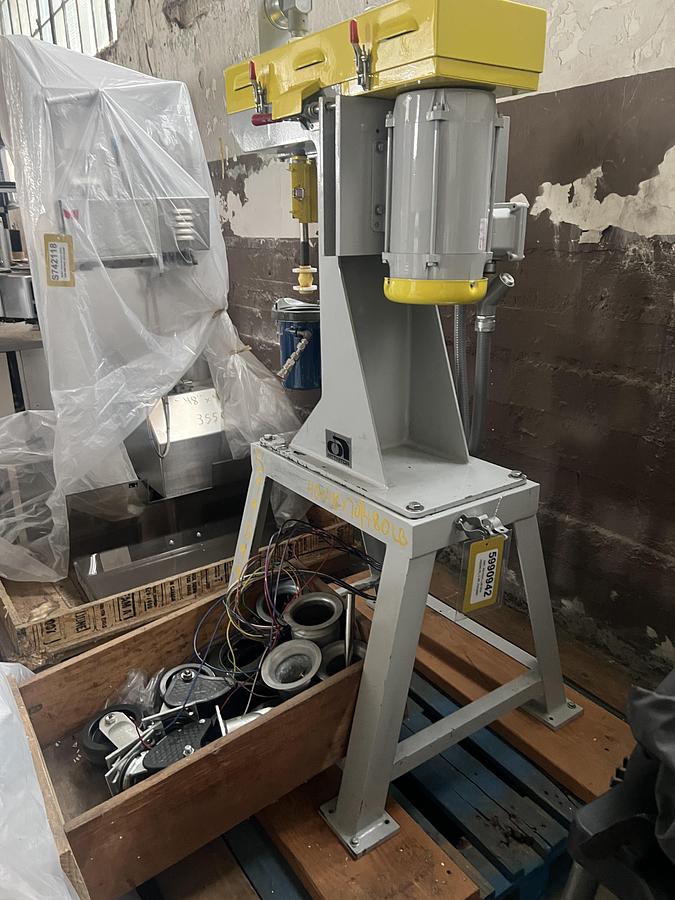

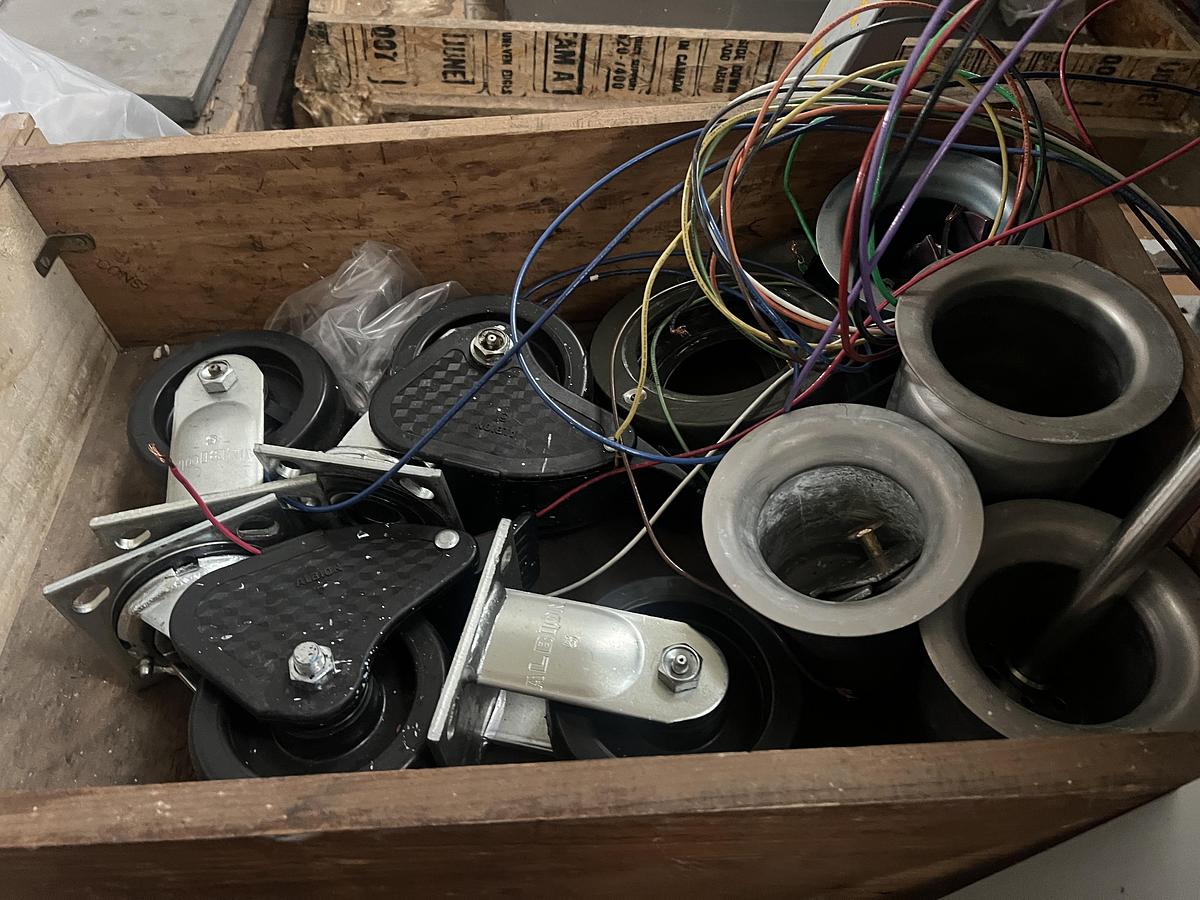

Union Process Attritor Mill, Szegvari attritor system laboratory grinding mill, model 01HD/DM, type B. Driven by 1 HP motor, 208-230V, 60Hz, UL Listed. Serial no. 100604. Includes Thermo Fisher Neslab RTE7 recirculating chiller. Mounted on portable frame with heavy duty casters. Includes some spare parts.
Specifications
| Stock Number | 5990942 |
| Manufacturer | Union Process |
| Model | HDDM-01 |
| Serial Number | 100604 |
| HP | 1 |
| Jacketed Can? | Yes |
| Basis | FOB |
Additional Information
RESEARCH ATTRITOR
The 01 Series Attritors offer users great flexibility as all models share the same column and interchangeable tank design. All models have water cooled jackets for cooling (or heating) and quick water disconnects for removing the tank. These mills are great research tools for formulating, testing, feasibility studies, quality control, and basic research when quantities are small. Results are repeatable. 01 Series Attritors are easy to clean and require no shaft seals.
The HD-01 and 01 Models are designed for media from 1/8" to 1/4". They have shafts with arms and run at RPMs from 100 to 650 and can be used for wet or dry grinding. nThe Model HDDM-01 is designed for small media ranging from 0.25mm (or smaller) to n2mm. These models have shafts with special discs and typically run at RPMs from 500 to 2,500. The HDDM-01 features a special one-piece cover with charging port and media deflector. This mill is recommended for wet grinding only.
