Mill, Attrition, Lab Size, Batch, Model S-1, 3 HP, Portable #5990944
Mill, Attrition, Lab Size, Batch, Model S-1, 3 HP, Portable #5990944
Location:Brisbane, CA
Available quantity:1
Description

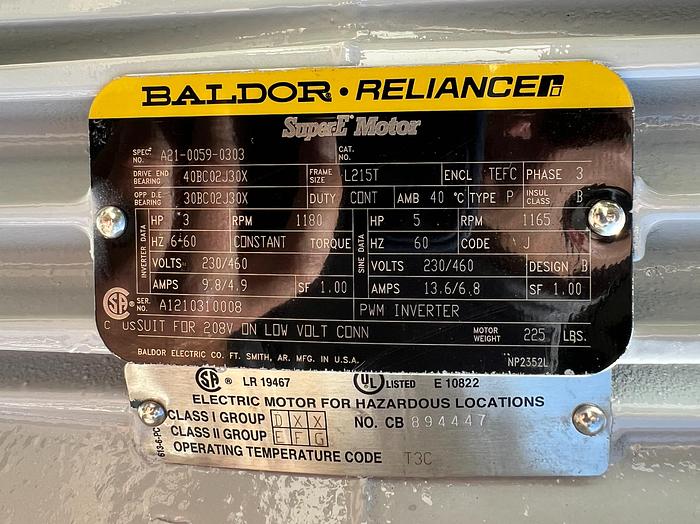

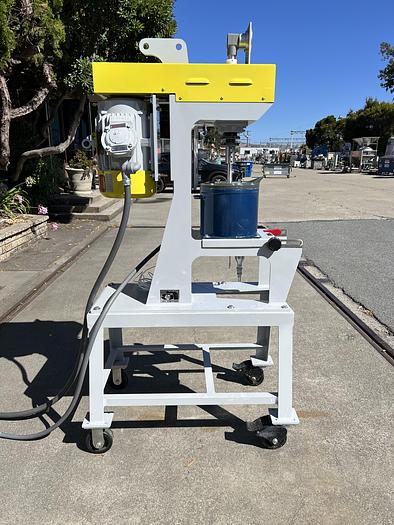

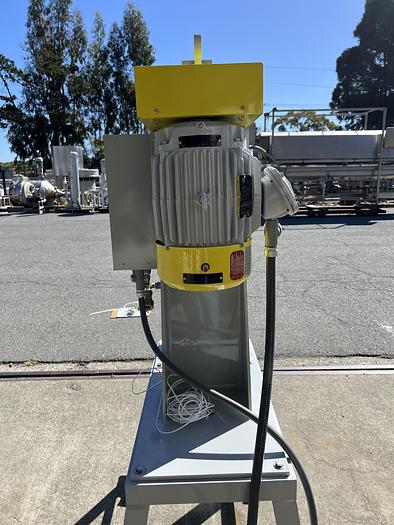

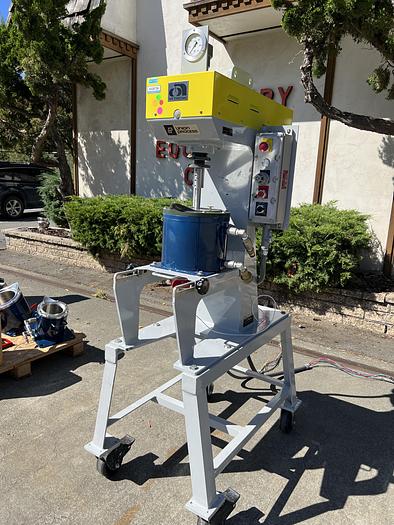

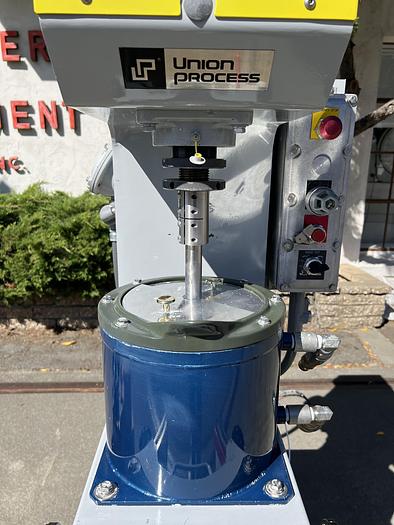

Union Process Attritor Mill, model 1S Szegvari Attritor System, Batch size. Driven by 3 HP motor, 230/460V, 60Hz, UL Listed. Mounted on frame with heavy duty casters. Includes some spare parts. Serial no.121205.
Specifications
| Stock Number | 5990944 |
| Manufacturer | Union Process |
| Model | S-1 |
| Serial Number | 121205 |
| HP | 3 |
| Jacketed Can? | Yes |
| Vacuum Can? | Yes |
| Basis | FOB, Brisbane, CA |
Additional Information
The S-1 Batch Attritor is a versatile, reliable, rugged laboratory-size machine designed to meet virtually all lab grinding and dispersing needs — either wet or dry. It allows easy and precise scale-up to production size equipment with reproducible results from batch to batch. It is also suitable for small production or pilot plant work.

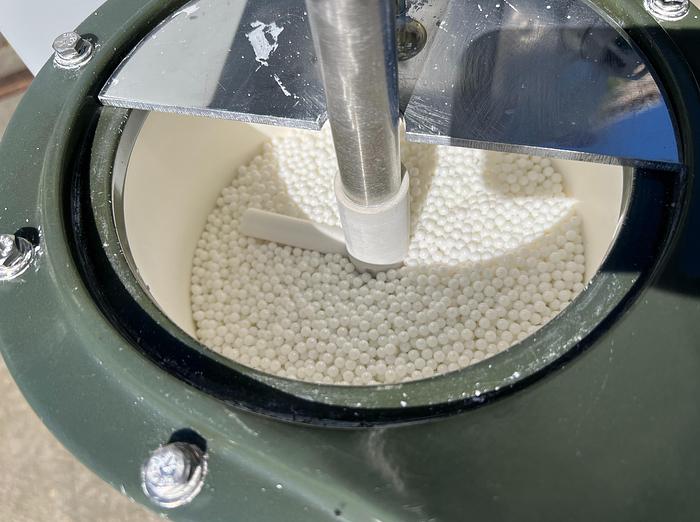

Model S-1, are designed for media ranging from 1/8" to 3/8" and run at RPMs of 100 to 500. With a different shaft/arm configuration, media up to 1” can be used. All share the following features:

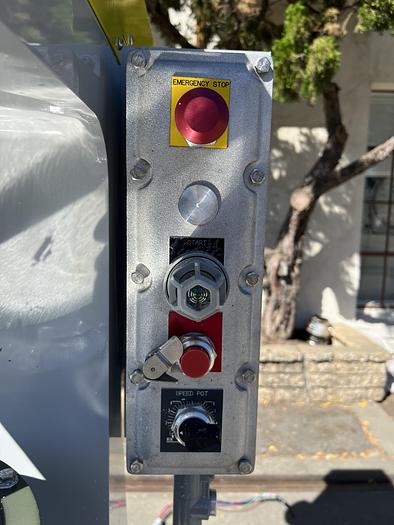

■ Variable shaft RPM.
■ Adjustable agitator shaft height to accommodate different size grinding media
■ Bottom discharge grid with valve for easy sampling and discharge
■ Tank rotates or slides forward and tips 90° for media discharge and fast cleaning.
■ Jacketed for cooling (or heating).
■ Quick disconnects for cooling water.
