Tank, 1,700 Gallon, 316 Stainless Steel, Double Agitation, Feldmeier, #5990996

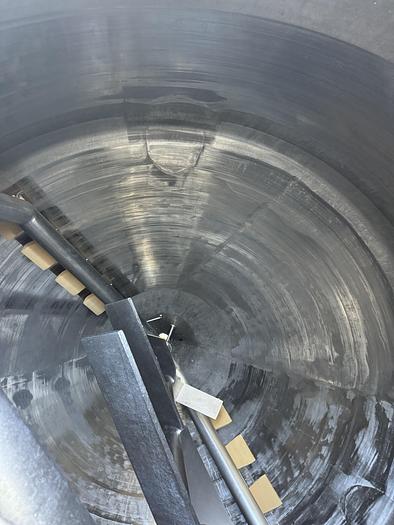

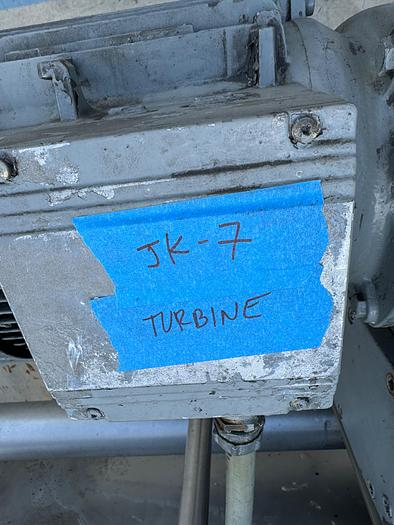

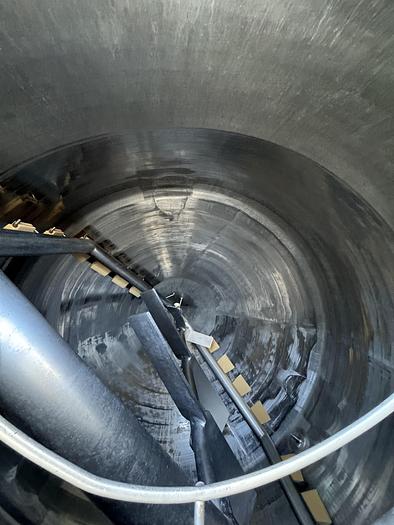

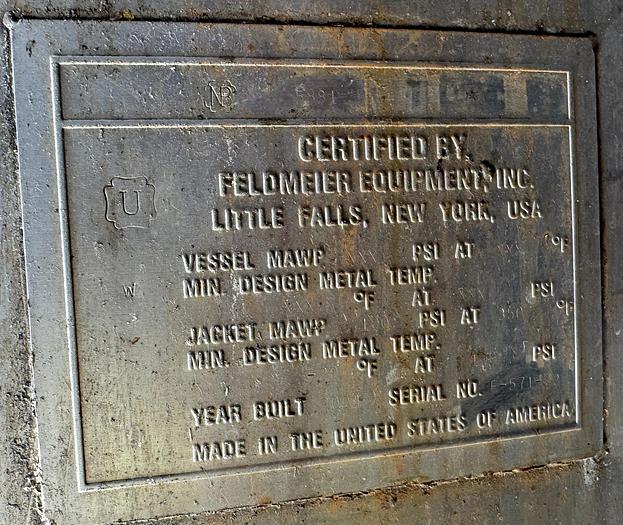

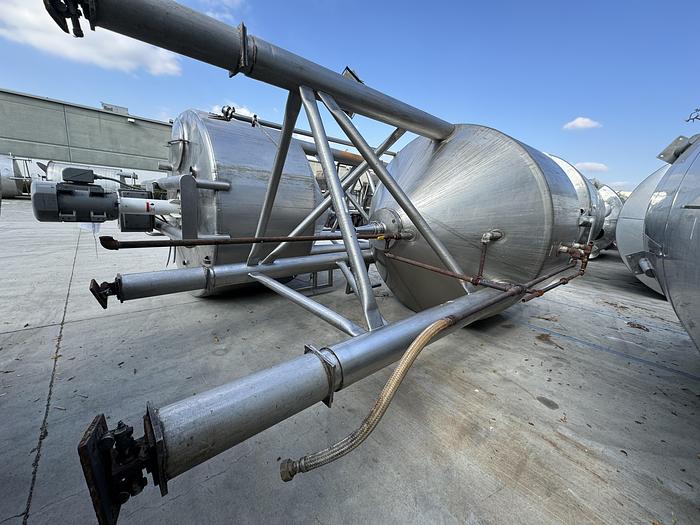

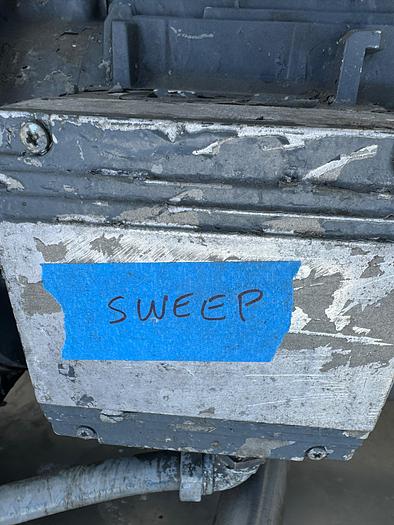

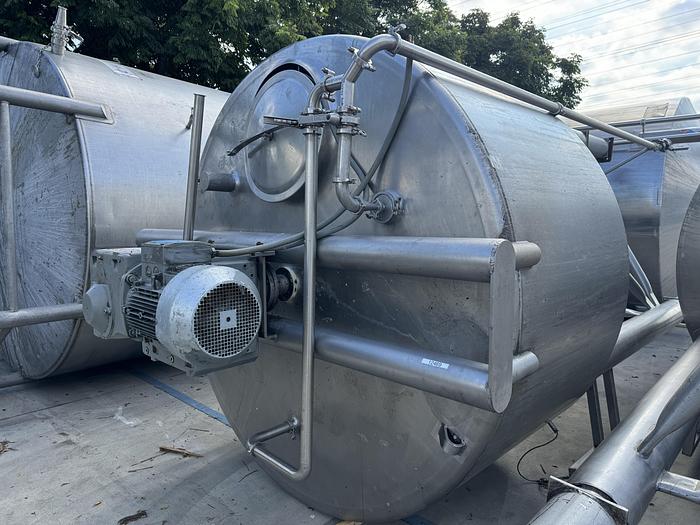

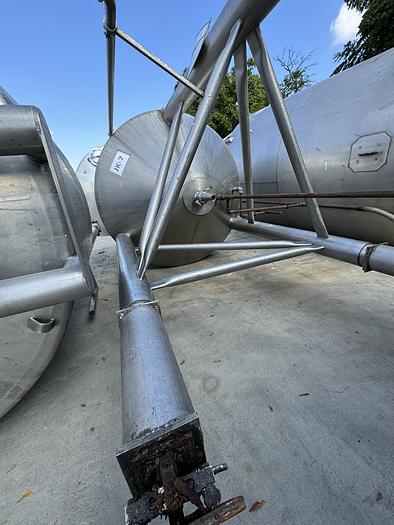

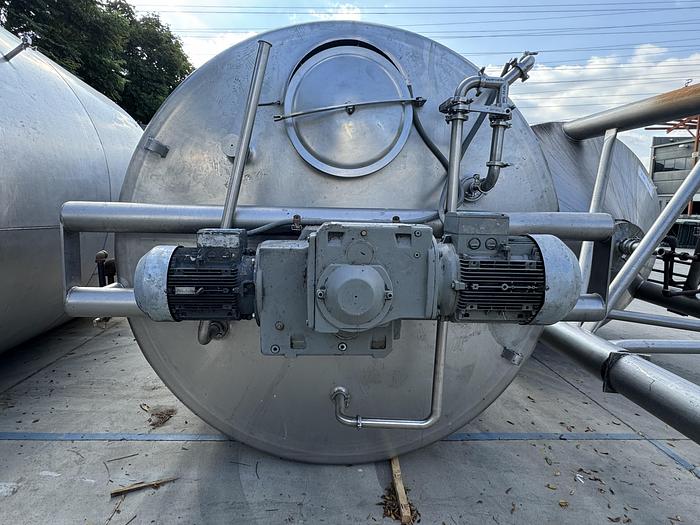

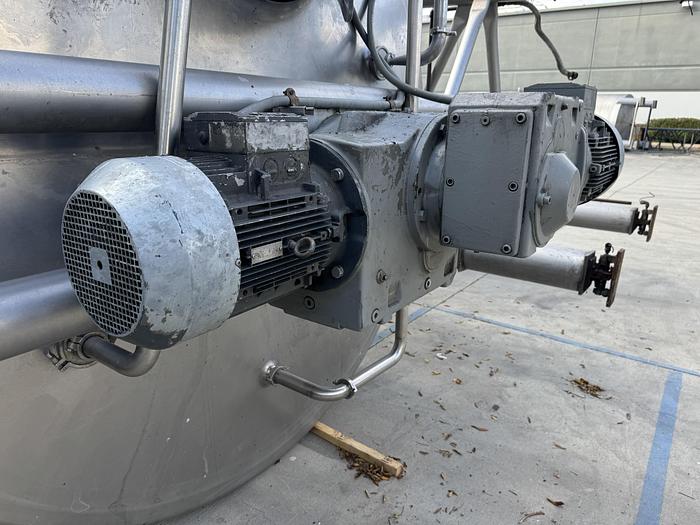

Feldmeier 1,700 Gallon Jacketed tank with double motion scraper agitation, measures 8' diameter X 4' straight side with approximate 45 degree cone bottom with 4" center bottom outlet, tapered to 2" with manual butterfly valve. Jacket is rated for 100 PSI @ 350 degrees Fahrenheit, ASME code, National Board # 5881, serial number E-571-03. Top head includes 24" manway with cover, (2) 4" top openings tapered to to 2" and (1) 2" opening. Mounted on (3) 9" diameter pipe legs, approximate 5-1/2' discharge height. Tank is offered with dual motion agitation, driven by (2) 15 HP motors thru heavy duty gearbox for scraper agitation and turbine agitation. Previously used in cosmetics industry.
