Filter, Reverse Osmosis, RO/DI, Evoqua, Stainless Steel, High-Purity, #5991264

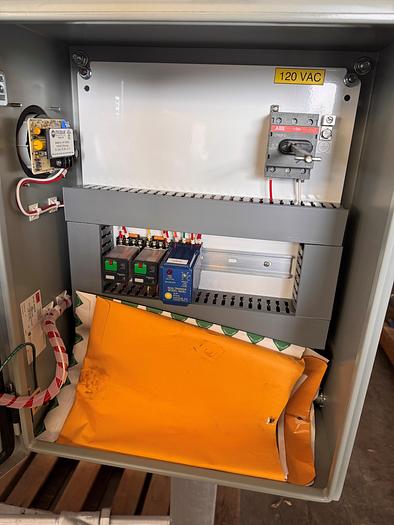

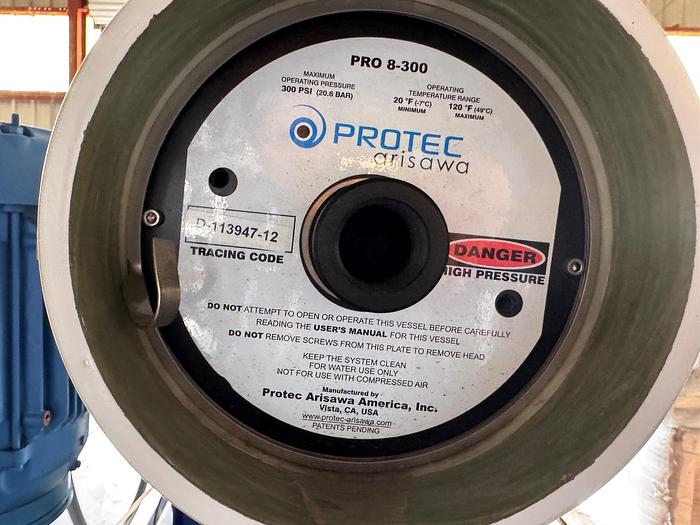

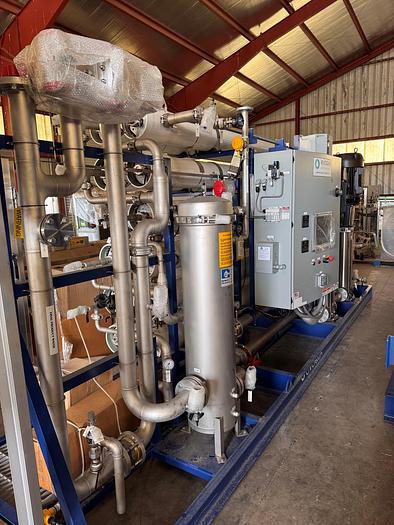

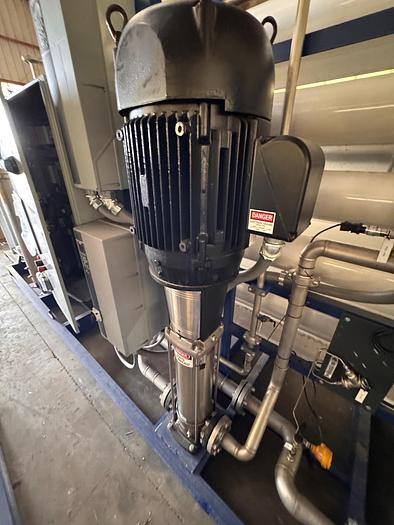

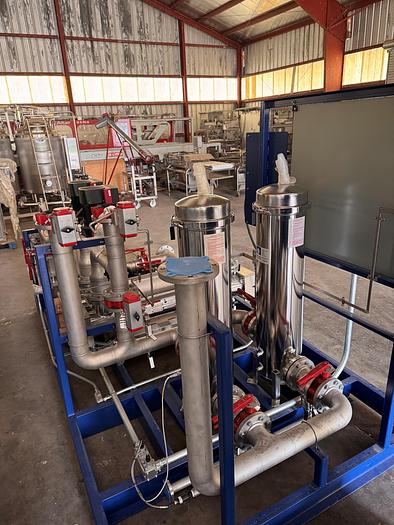

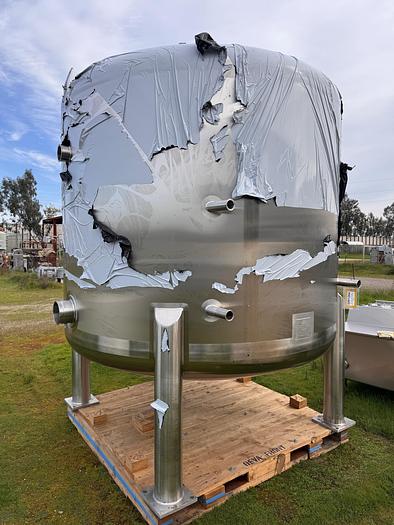

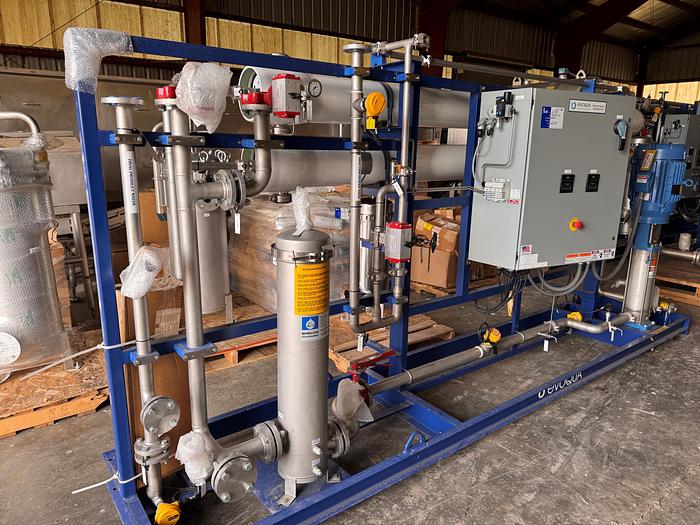

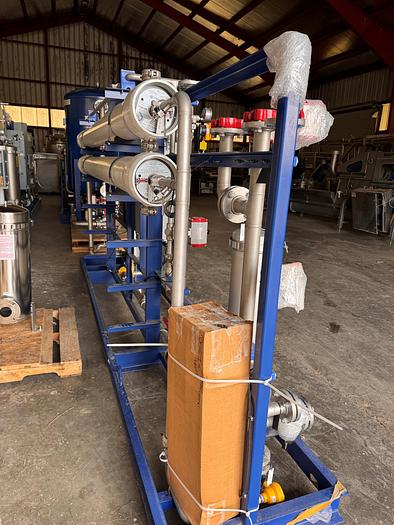

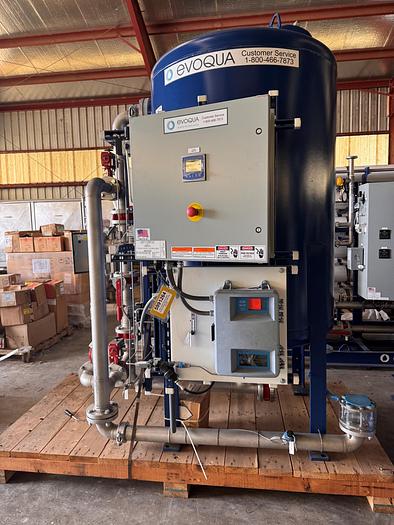

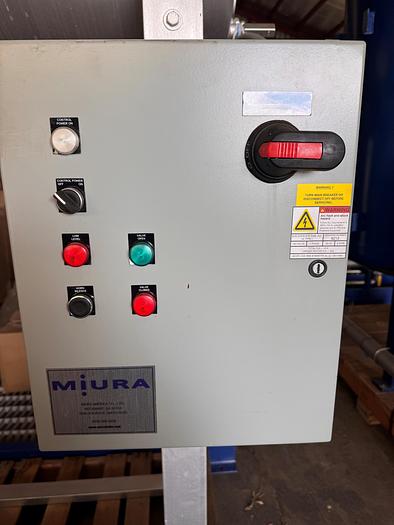

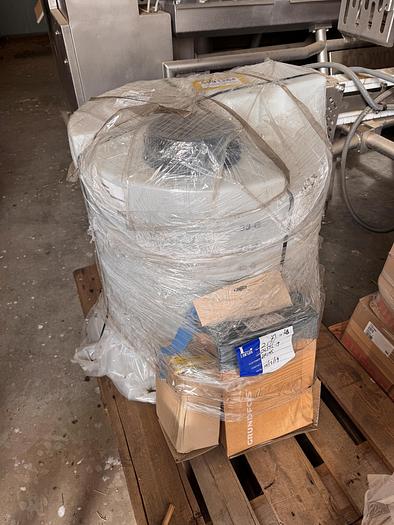

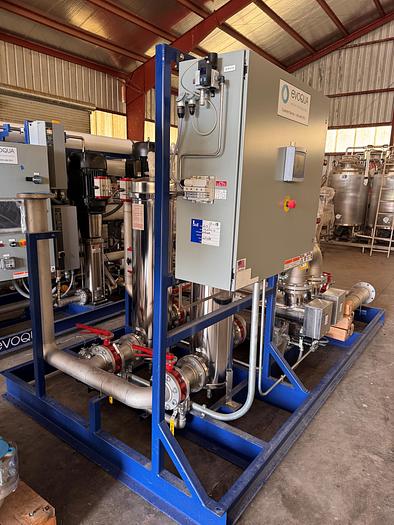

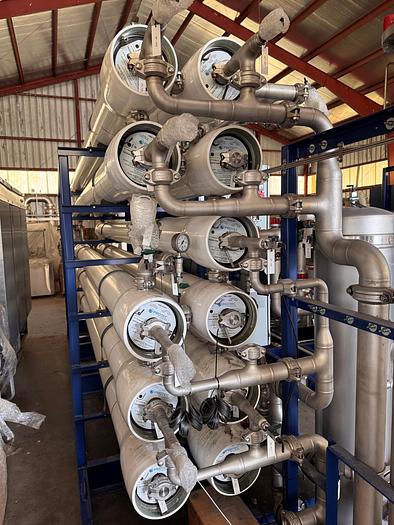

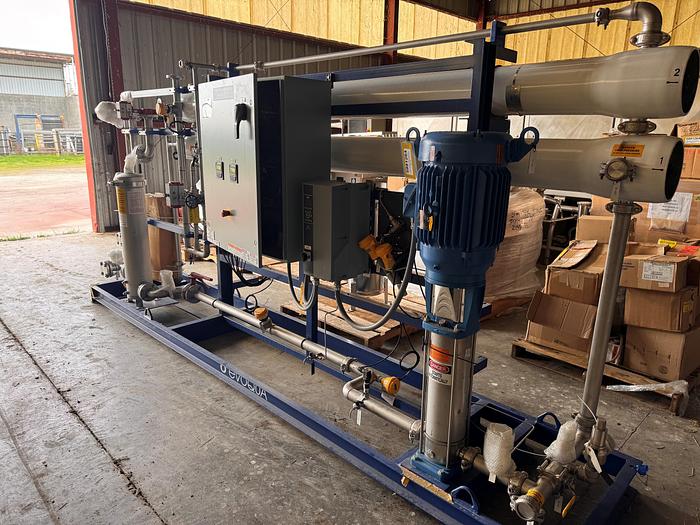

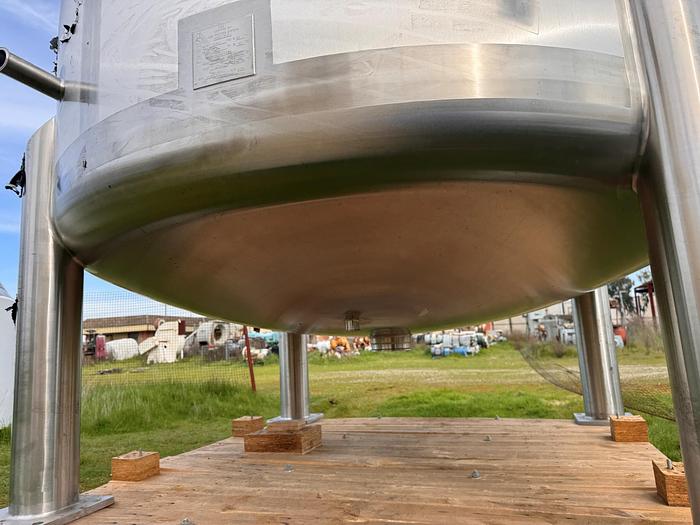

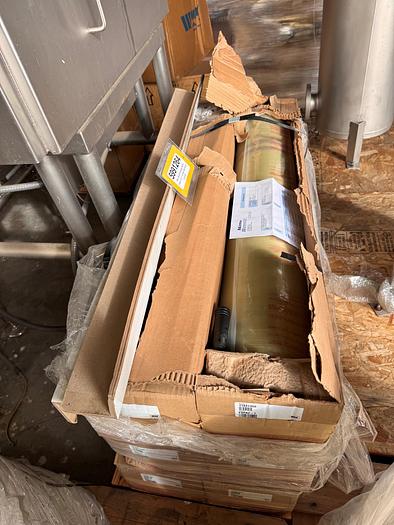

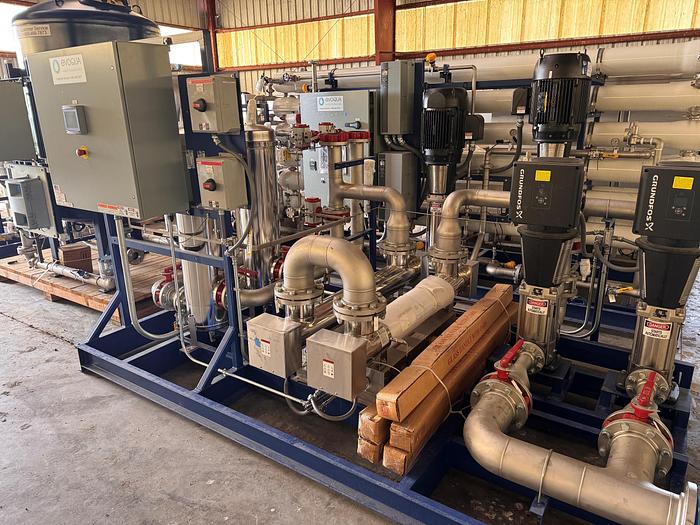

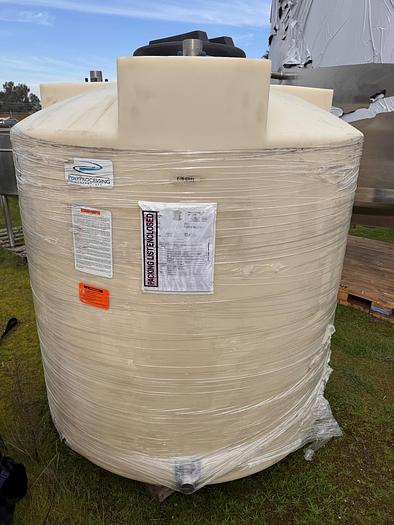

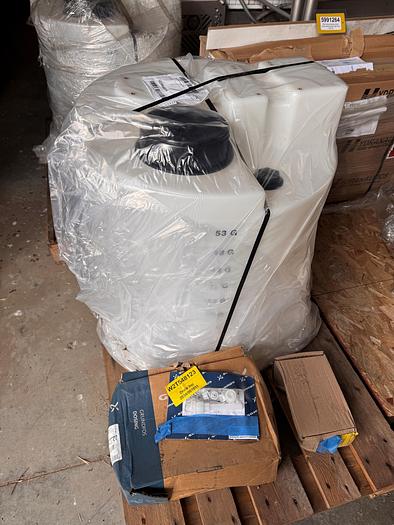

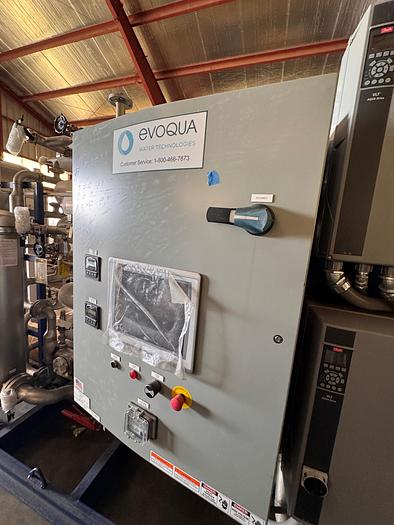

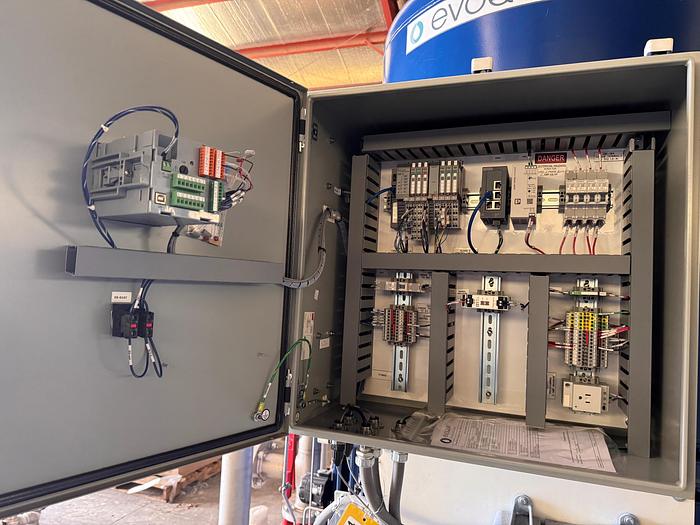

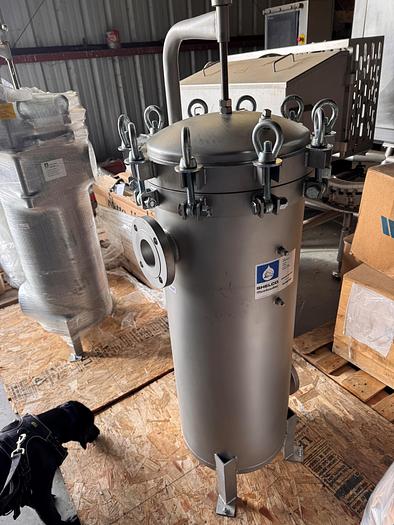

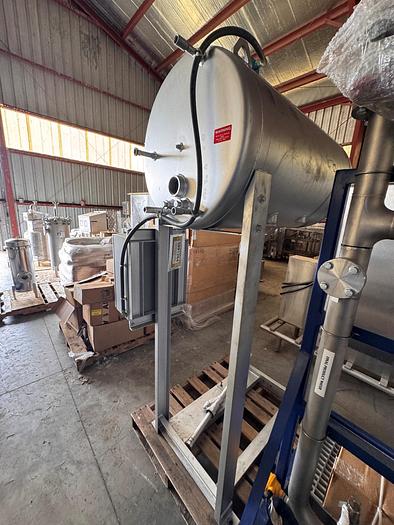

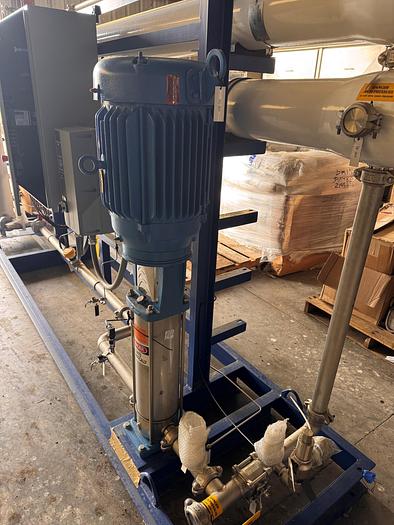

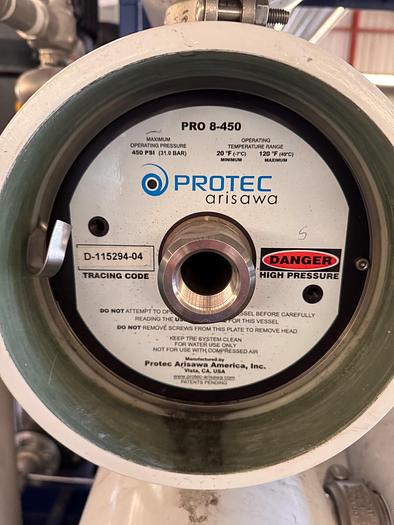

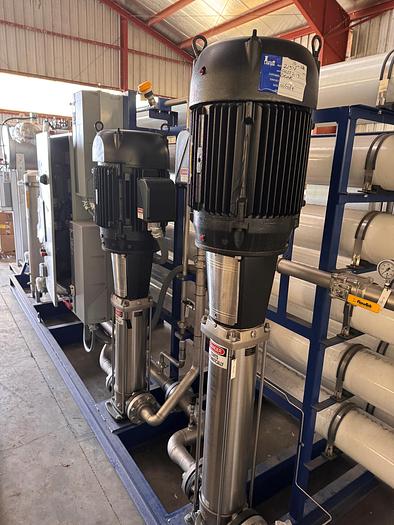

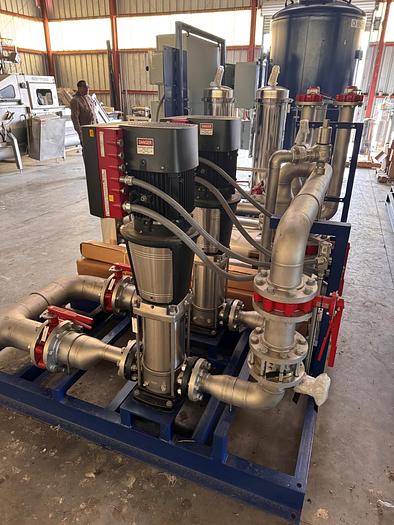

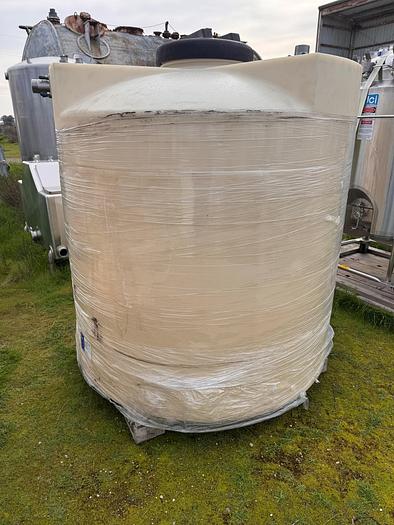

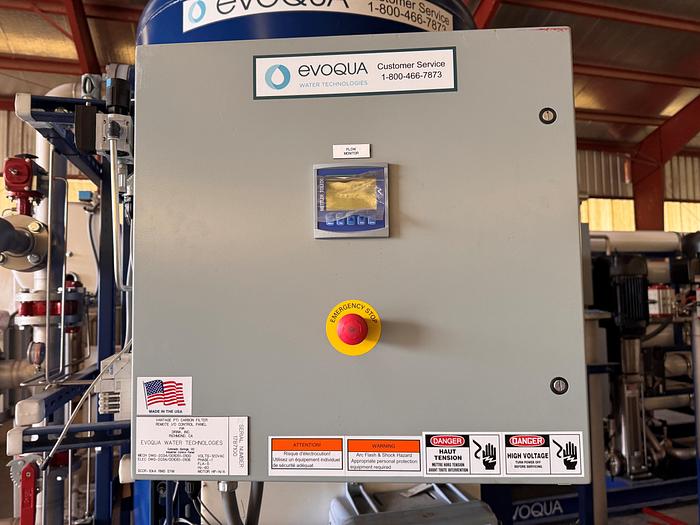

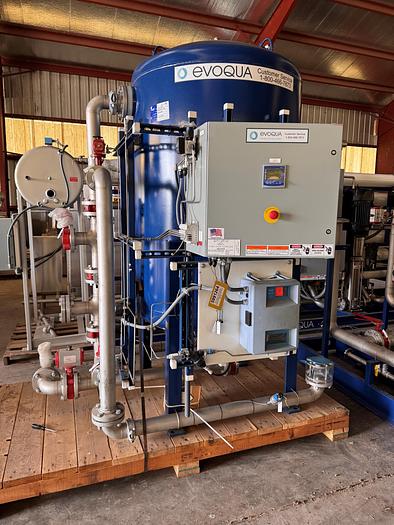

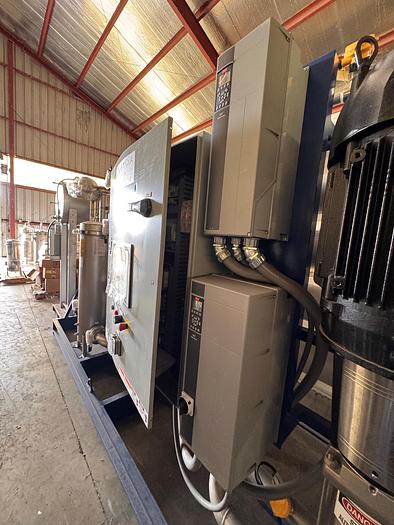

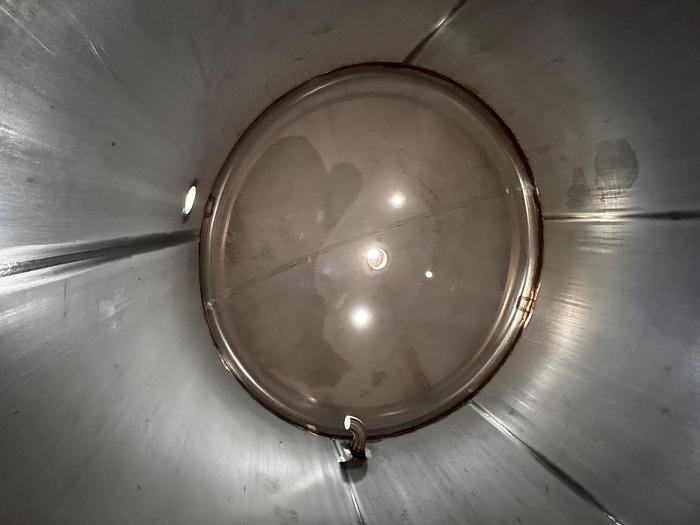

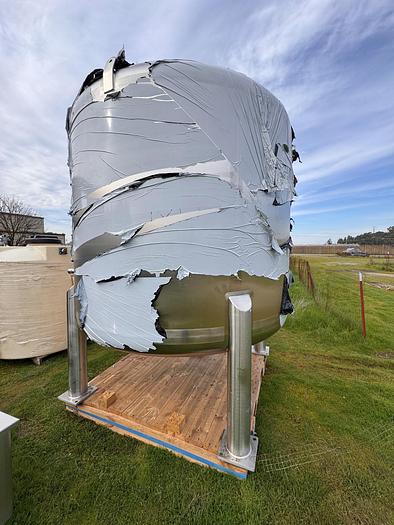

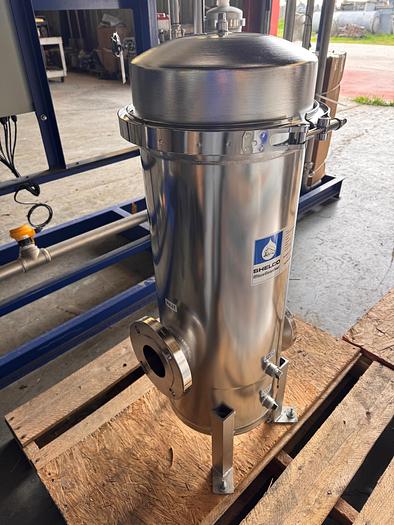

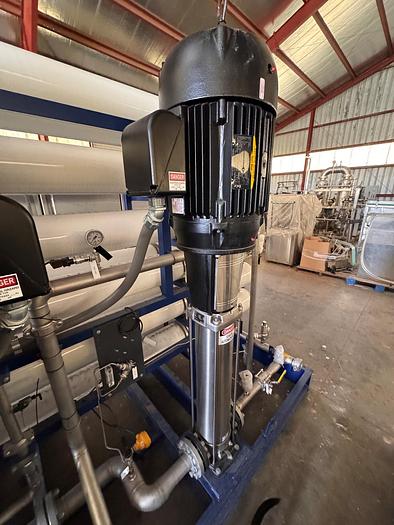

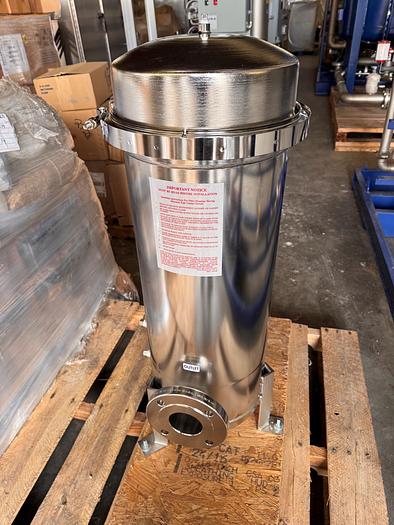

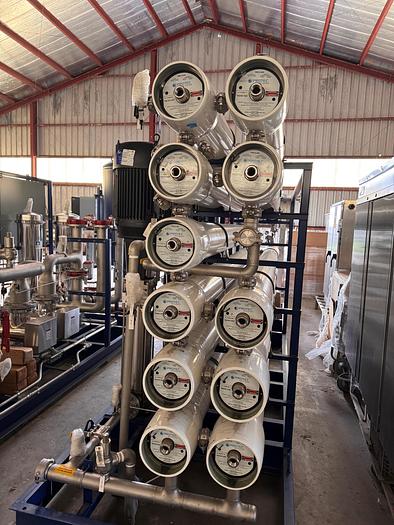

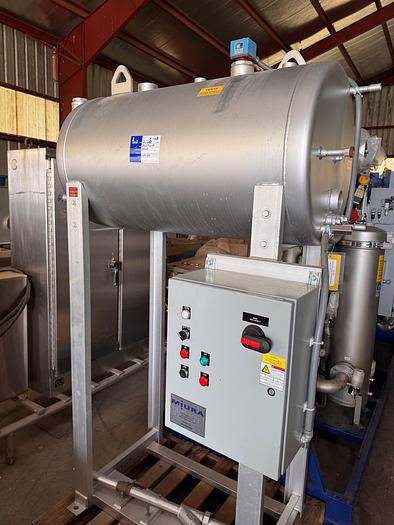

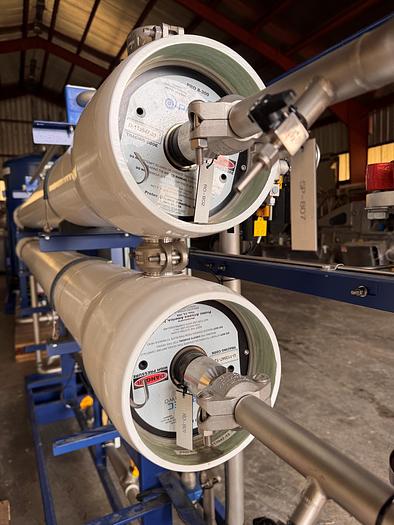

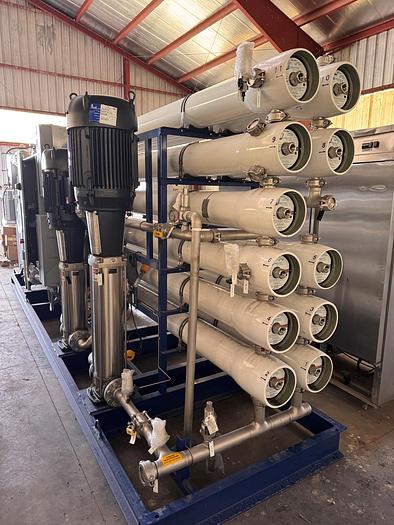

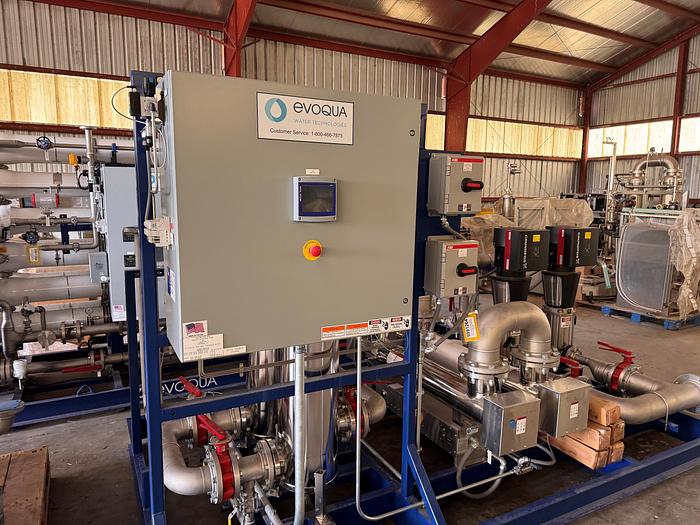

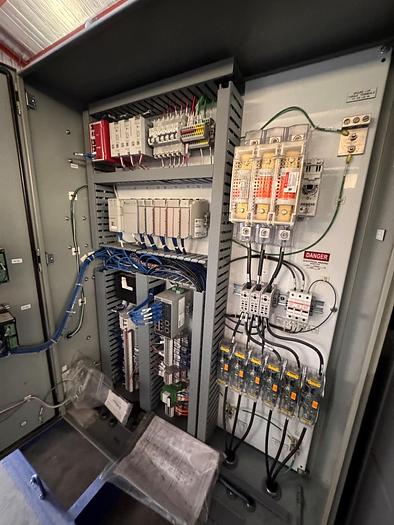

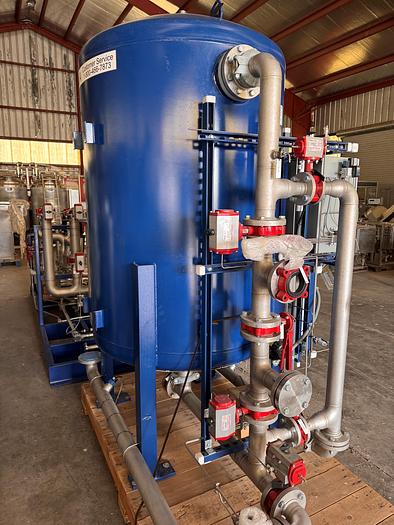

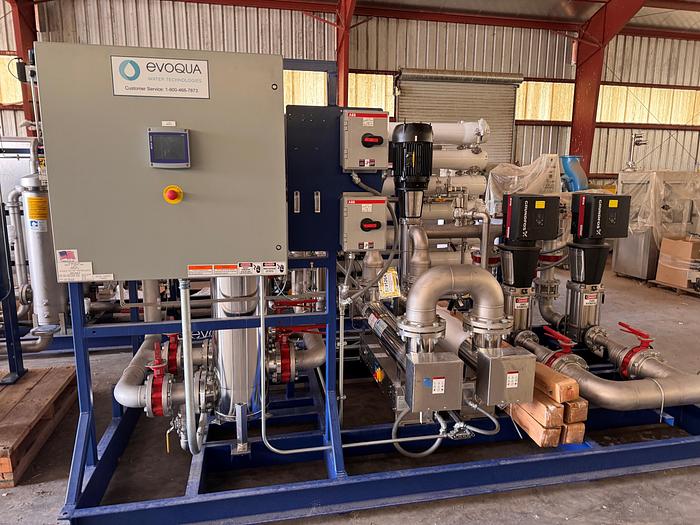

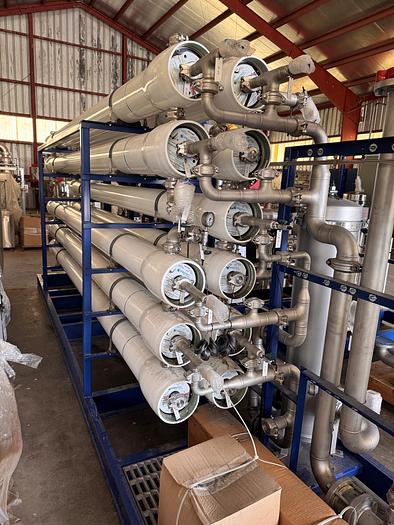

Unused Evoqua water treatment system includes a skid-mounted 2-Pass reverse osmosis (RO) unit with a 48-60 GPM flow rate, expandable to 96-115 GPM, and 8" diameter x 4M FRP pressure vessels rated at 450 PSIG ASME. The RO system features 5.0-micron nominal prefilters, Grundfos CRNE booster pumps with integrated variable frequency drives (VFDs), and a fully automated NEMA 12 control panel for precise operation. The DI system includes three 42" diameter mixed-bed deionization vessels constructed of 316SS, each with a 421 ft³ capacity, utilizing Evoqua-certified resins for ultrapure water production. The distribution system operates at 190 GPM and includes dual Grundfos 316LSS vertical centrifugal pumps, with flow monitored and controlled via Thornton conductivity and temperature sensors, Rosemount Vortex flow transmitters, and IFM Efector pressure transmitters. Additional components include anti-scalant injection equipment with Grundfos DDS pumps and a 50-gallon chemical tank for scaling prevention, a 2,000-gallon DI water storage tank constructed of 316SS product contact surfaces, rated for 30 PSI, ozone generation and destruction systems with Ampco recirculation pumps, and UV sterilizers for polishing. System was never put into service and is Unused.
