Dryer, Spray, Complete Spray Drying Plant , Bowen #5991351

Dryer, Spray, Complete Spray Drying Plant , Bowen #5991351

Location:Southern USA

Available quantity:1

or
Call +1 (415) 467-3400

Description

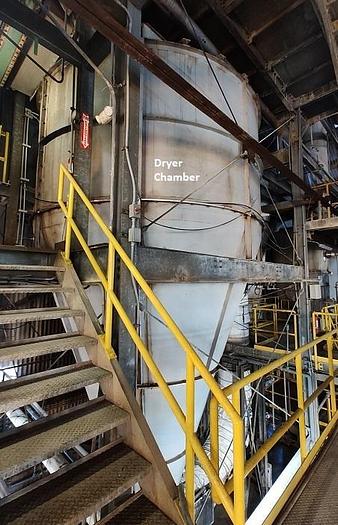

Complete Spray Drying Plant (2009) is a high-efficiency system featuring a Bowen 16' Spray Dryer, designed for processing feed at 3,400 lbs/hr with 50% solids. Operating at 430°F inlet and 305°F outlet temperatures, it has an evaporation rate of 1,575 lbs/hr and delivers a final powder output of 1,800 lbs/hr with 5% moisture content. The plant runs on 7.0 MM Btu/hr of fuel and consumes 225 kW of power.


Specifications

Stock Number5991351
ManufacturerBowen
Year2009
Operating Temperature 430°F inlet and 305°F outlet
Materials of ConstructionStainless Steel
Heat Source7.0 MM Btu/hr of fuel
BasisAs Is, Where Is

Additional Information

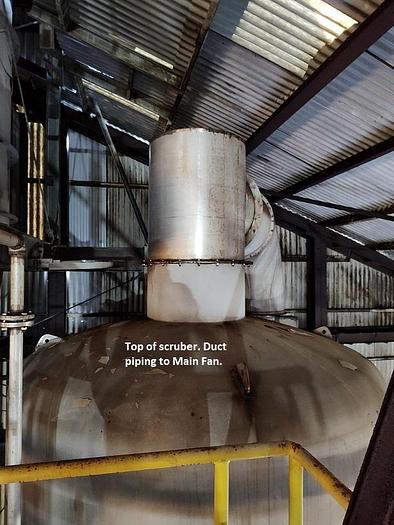

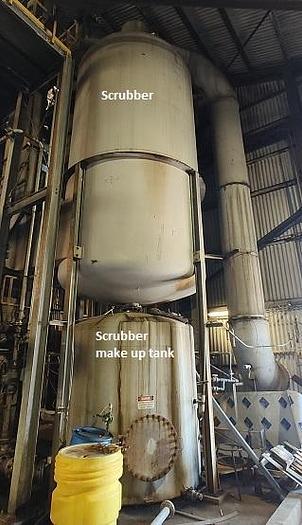

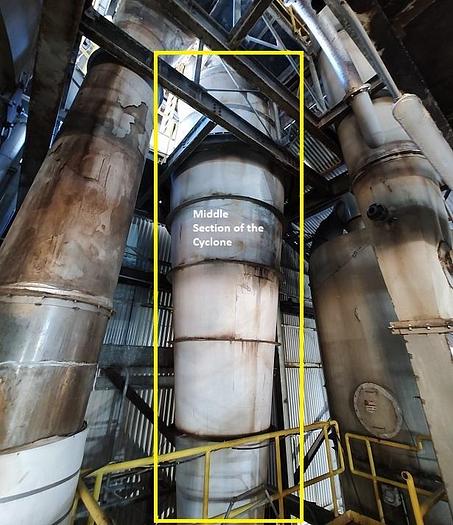

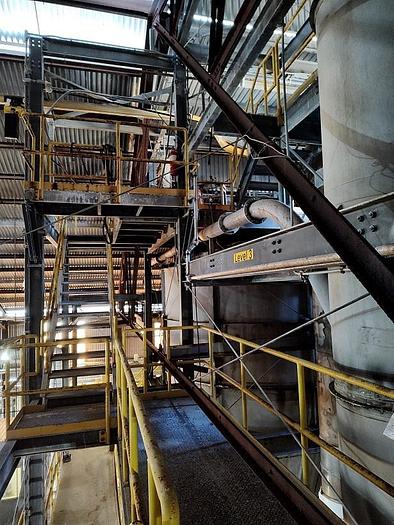

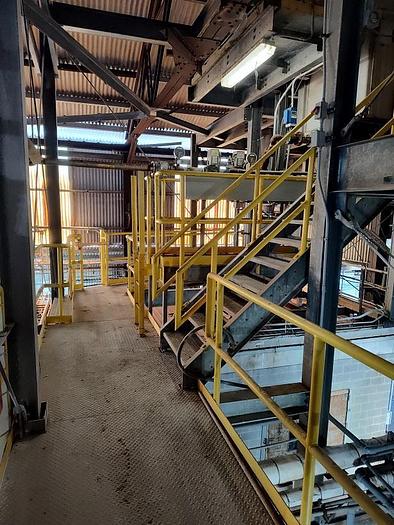

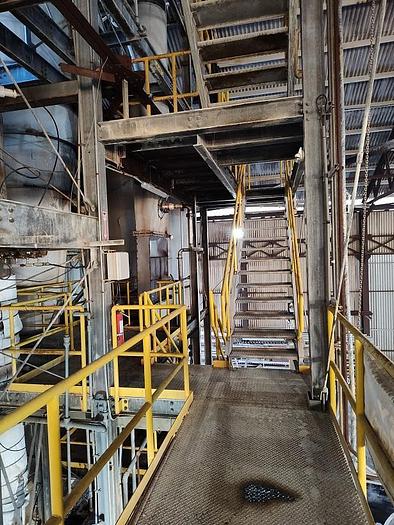

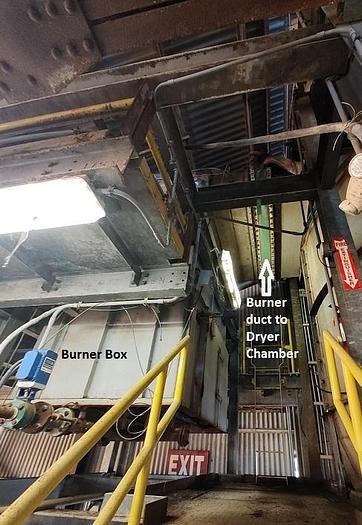

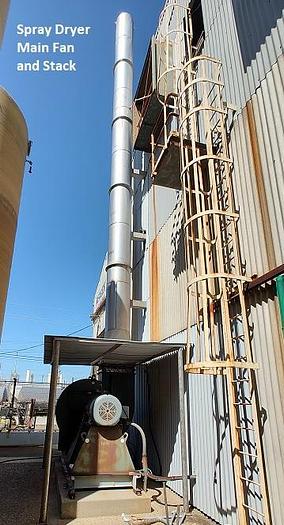

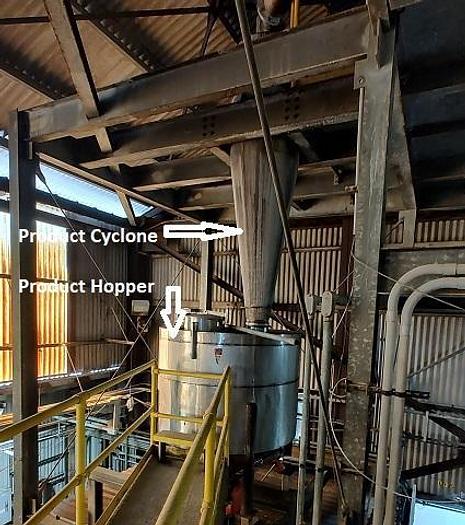

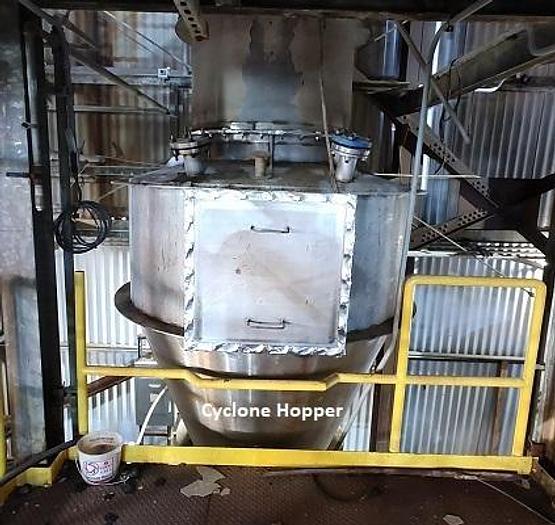

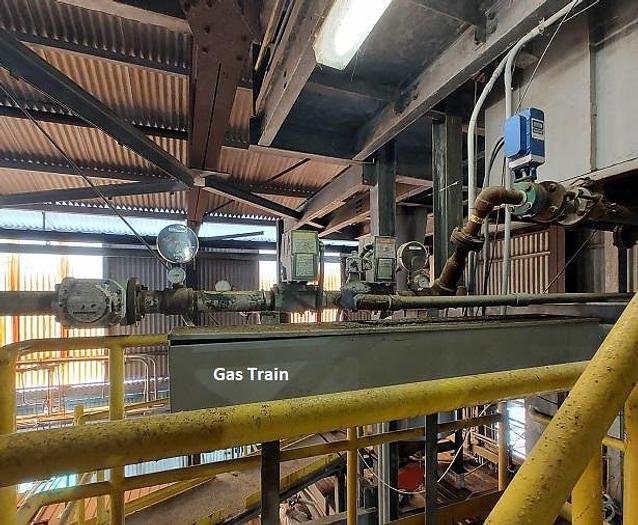

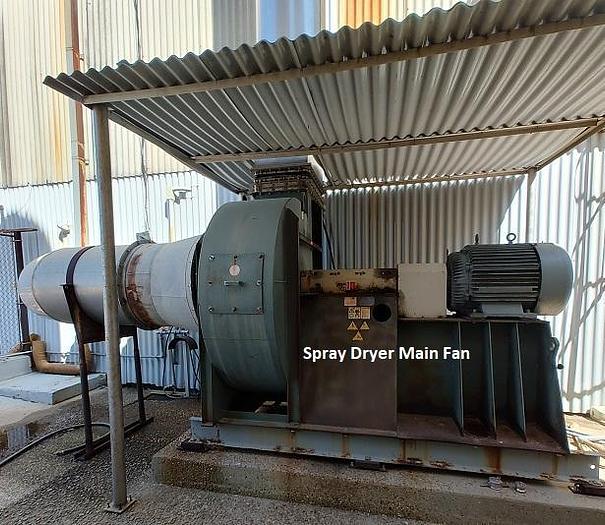

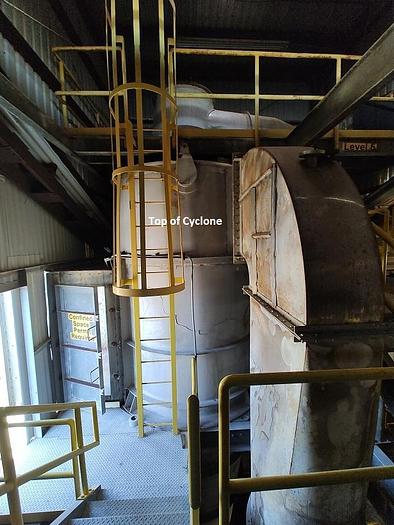

Key components include a burner, cyclones, rotary valves, a venturi, a wet scrubber, fans, a feed pump, a recirculation tank, and a duplex strainer. It also includes comprehensive ducting and explosion relief panels for safety. Multiple access platforms at varying elevations facilitate maintenance and operation. Built for sea-level installation, the system ensures efficient spray drying performance. The plant also features FRP scrubbers and tanks.
