Mixer, Ribbon, 90 CF, 316L Stainless Steel, Austin Mac Inc, 50 HP, #5991352
Mixer, Ribbon, 90 CF, 316L Stainless Steel, Austin Mac Inc, 50 HP, #5991352
Location:Idaho
Available quantity:1
Description

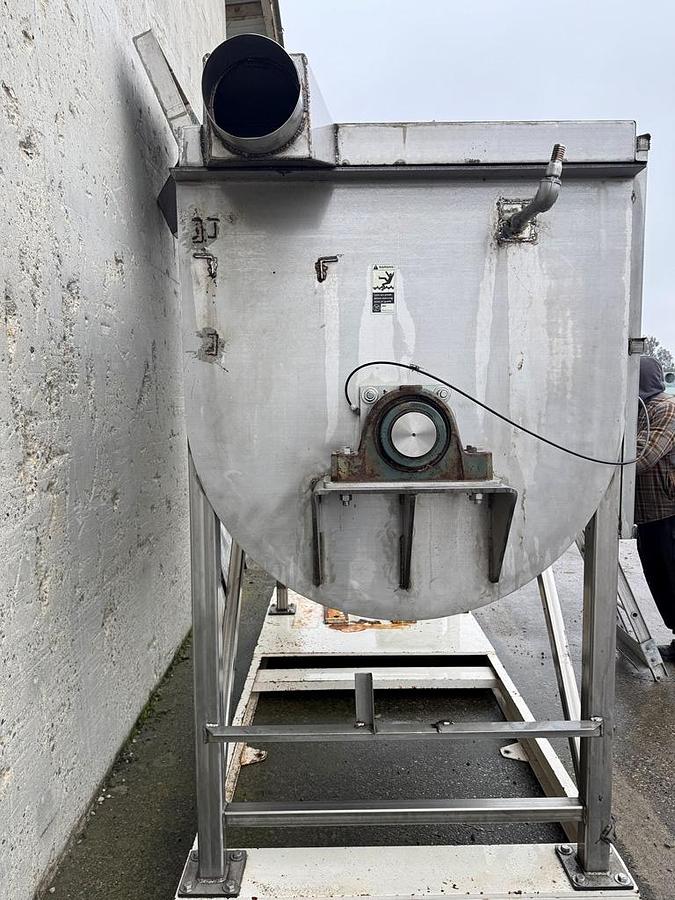

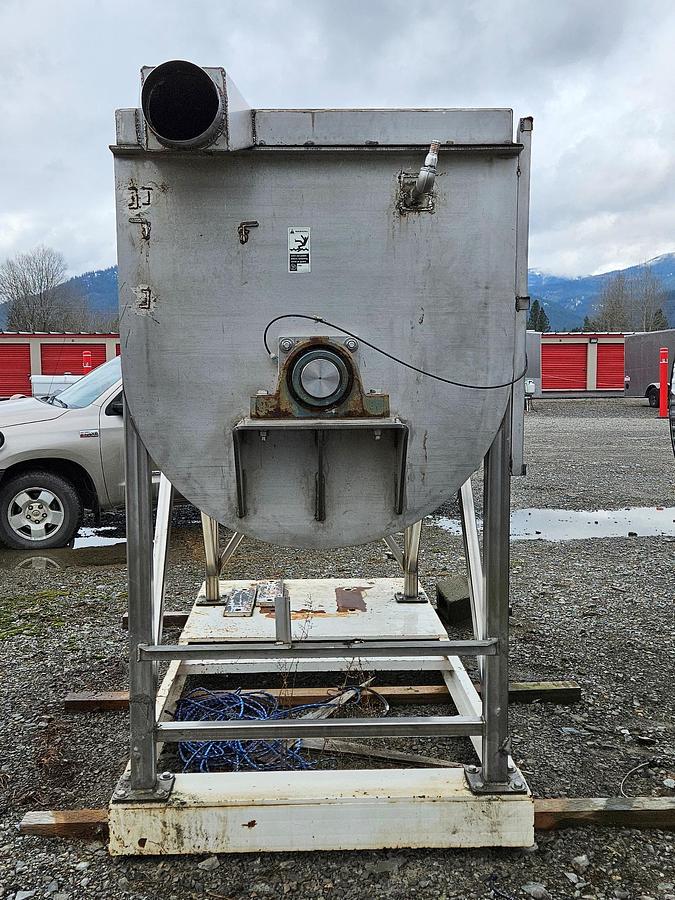

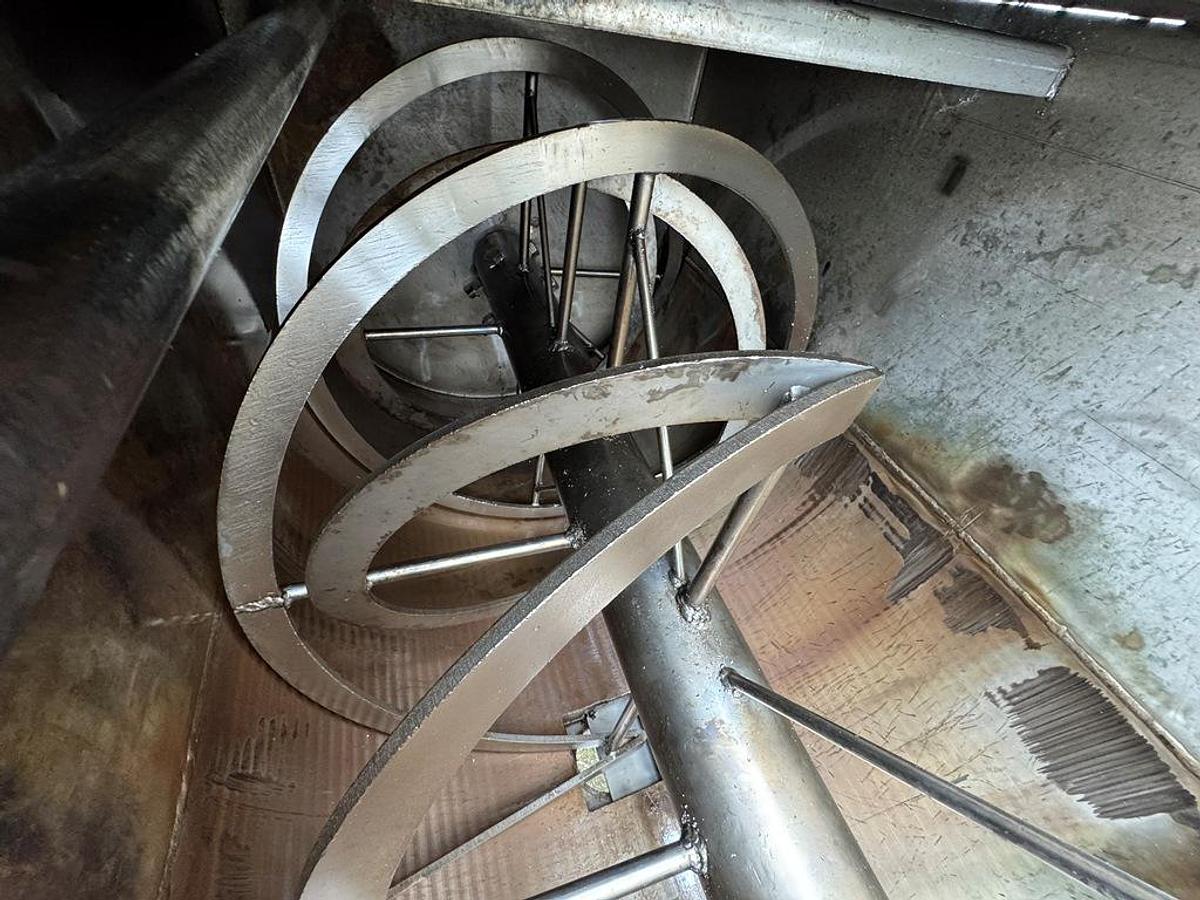

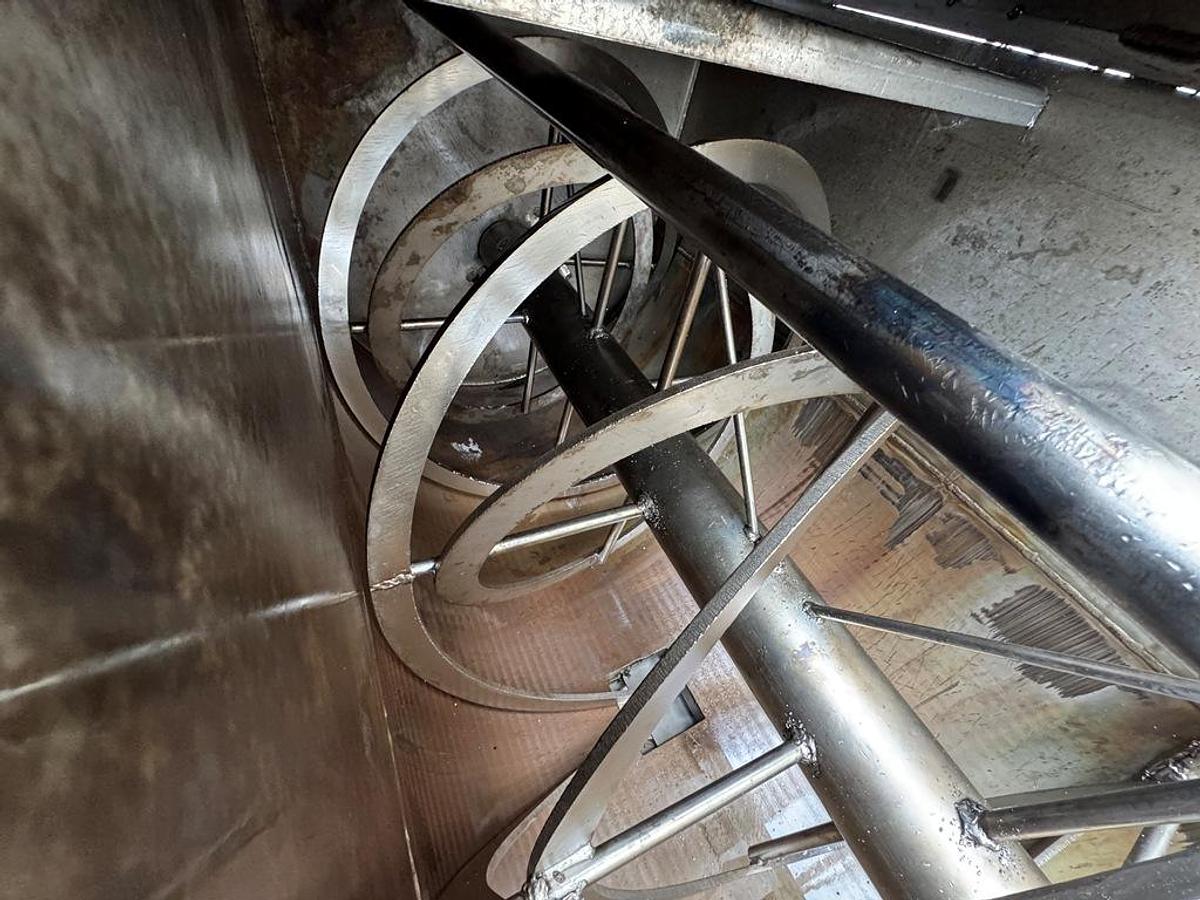

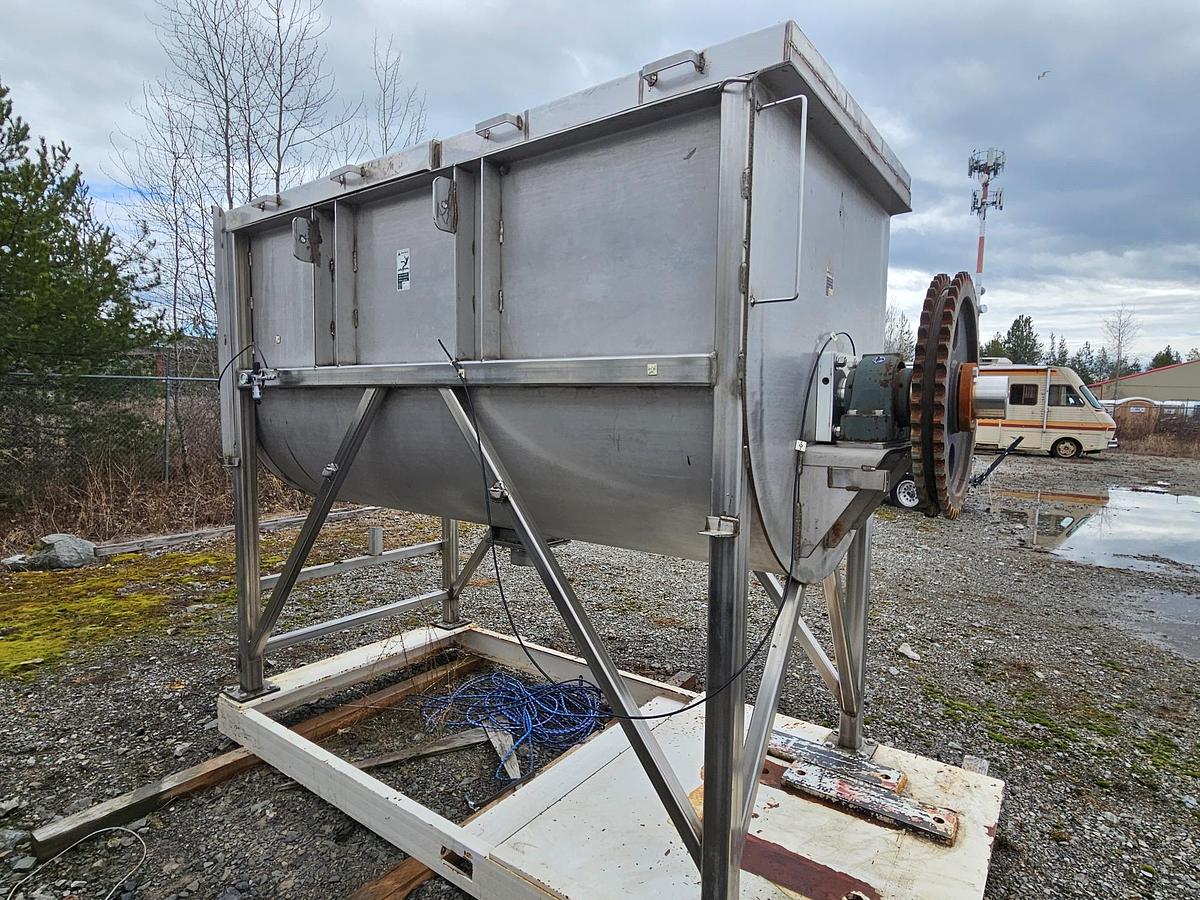

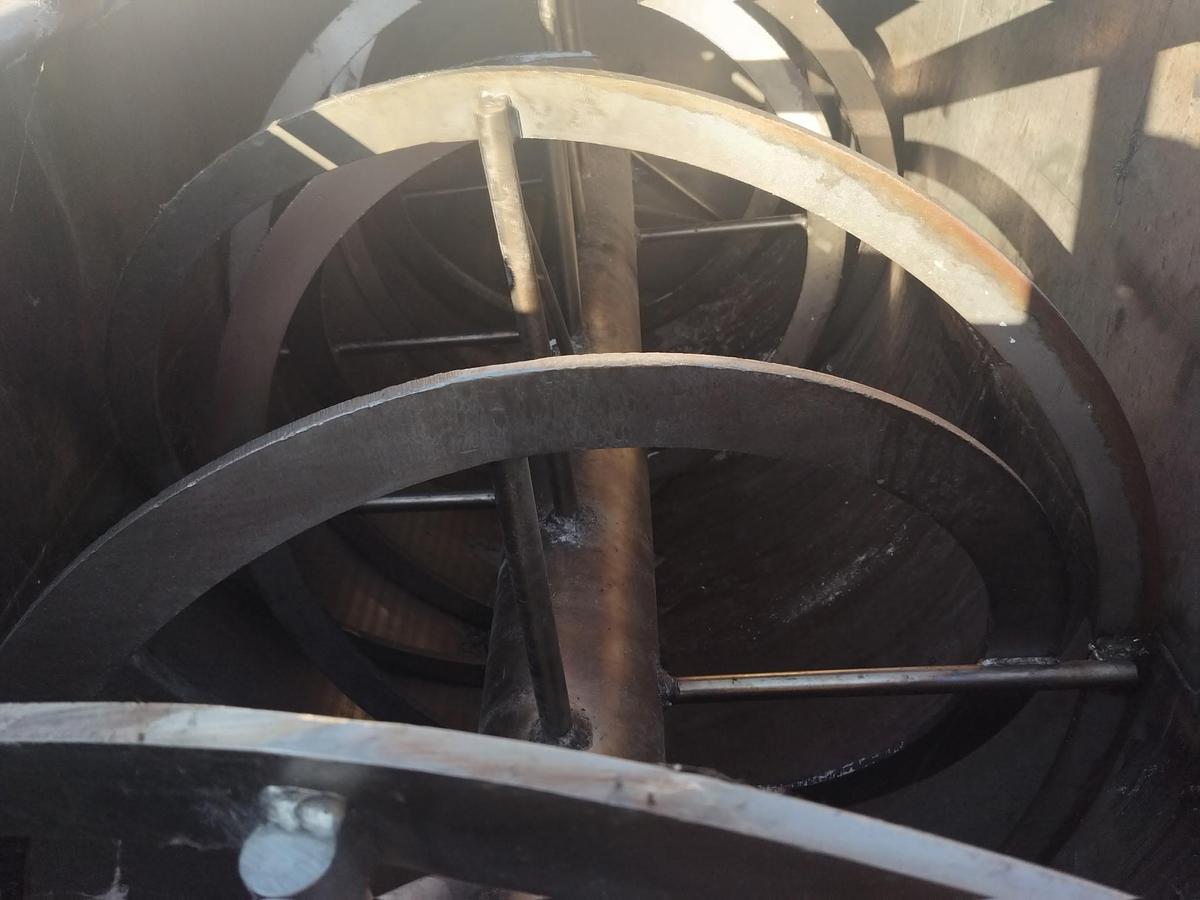

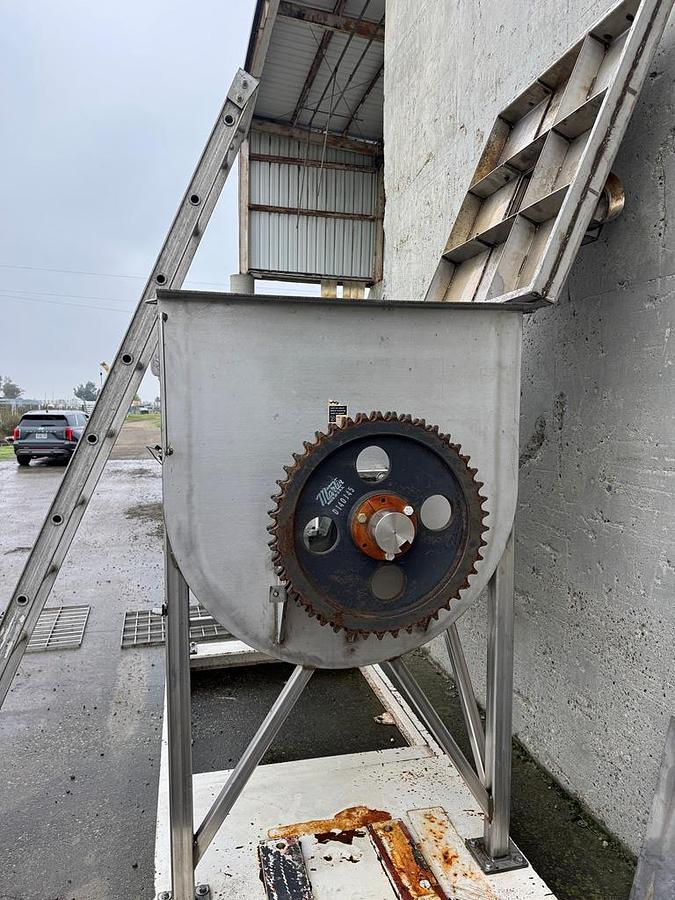

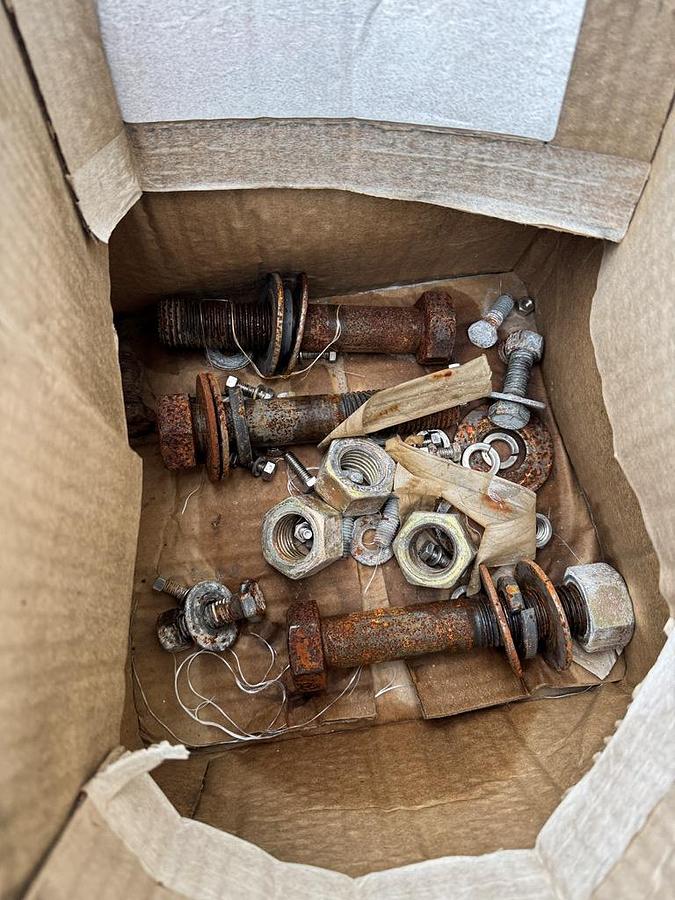

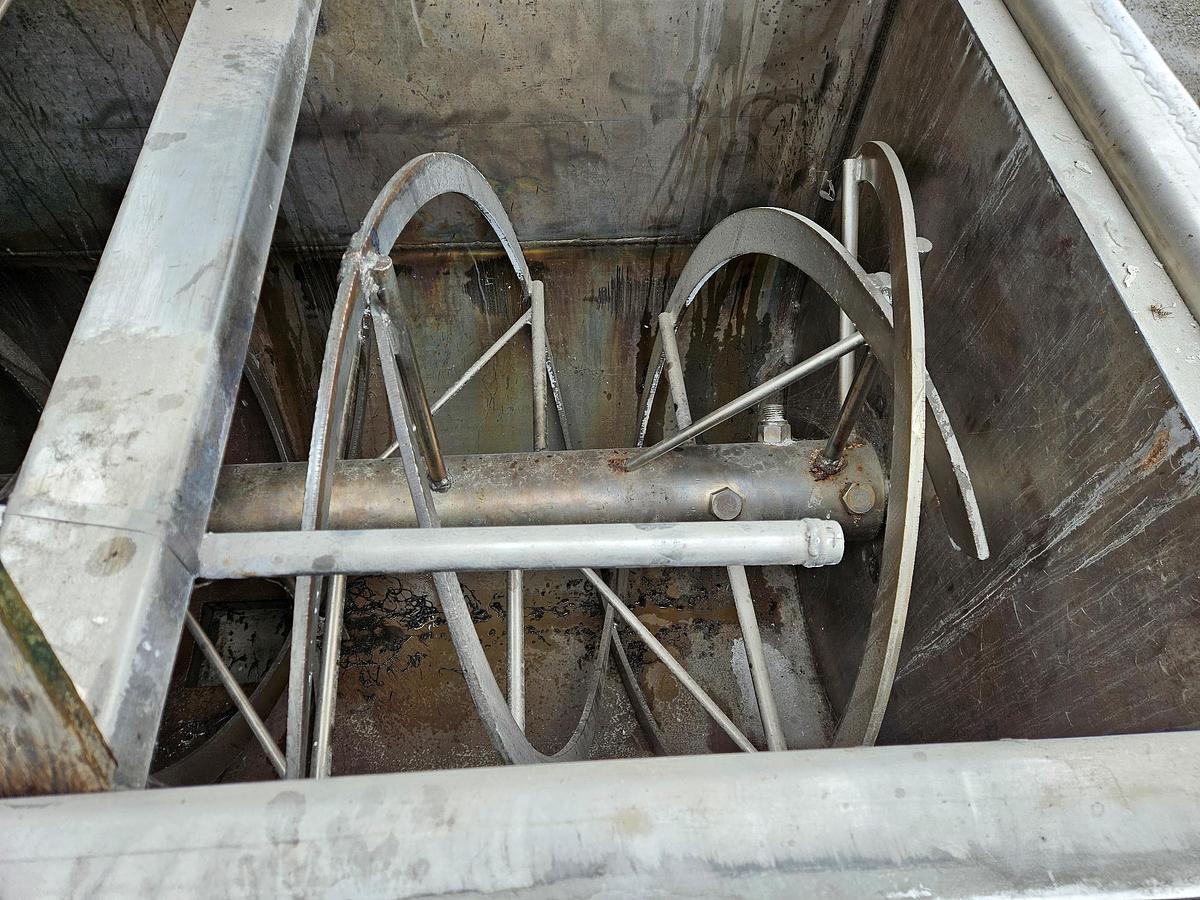

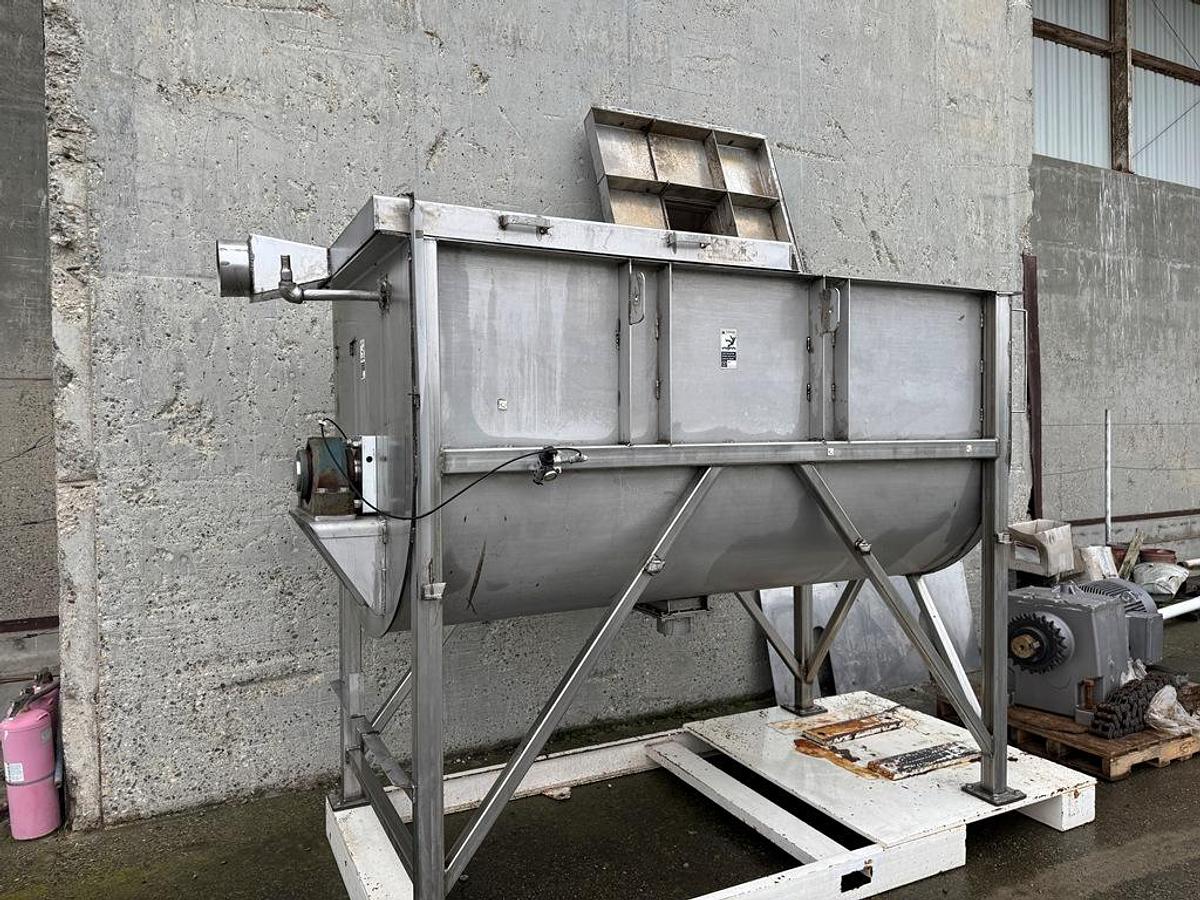

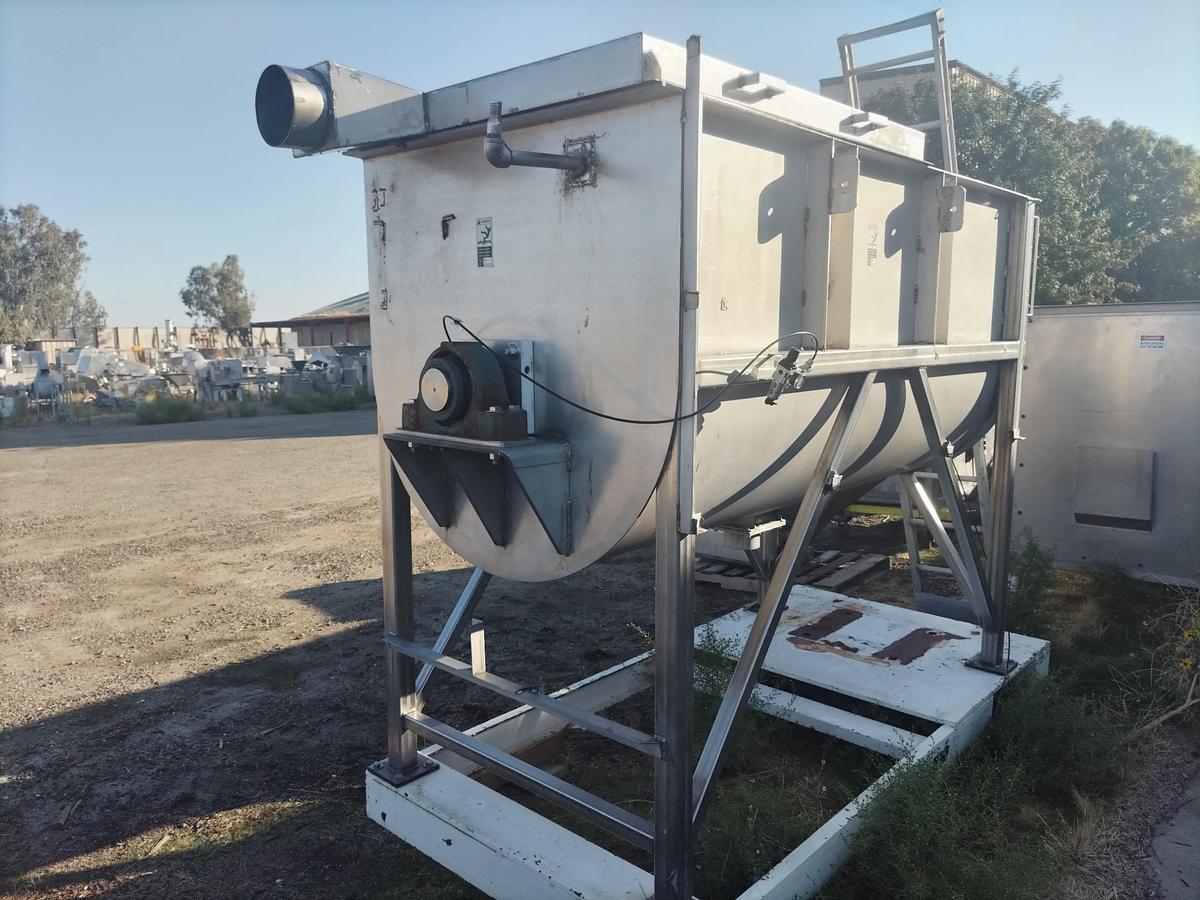

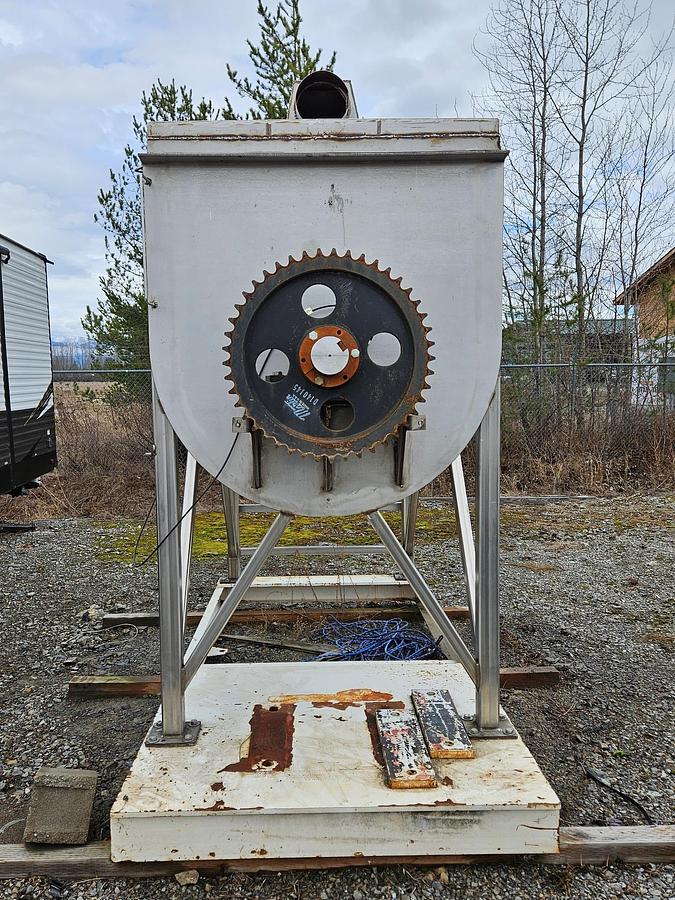

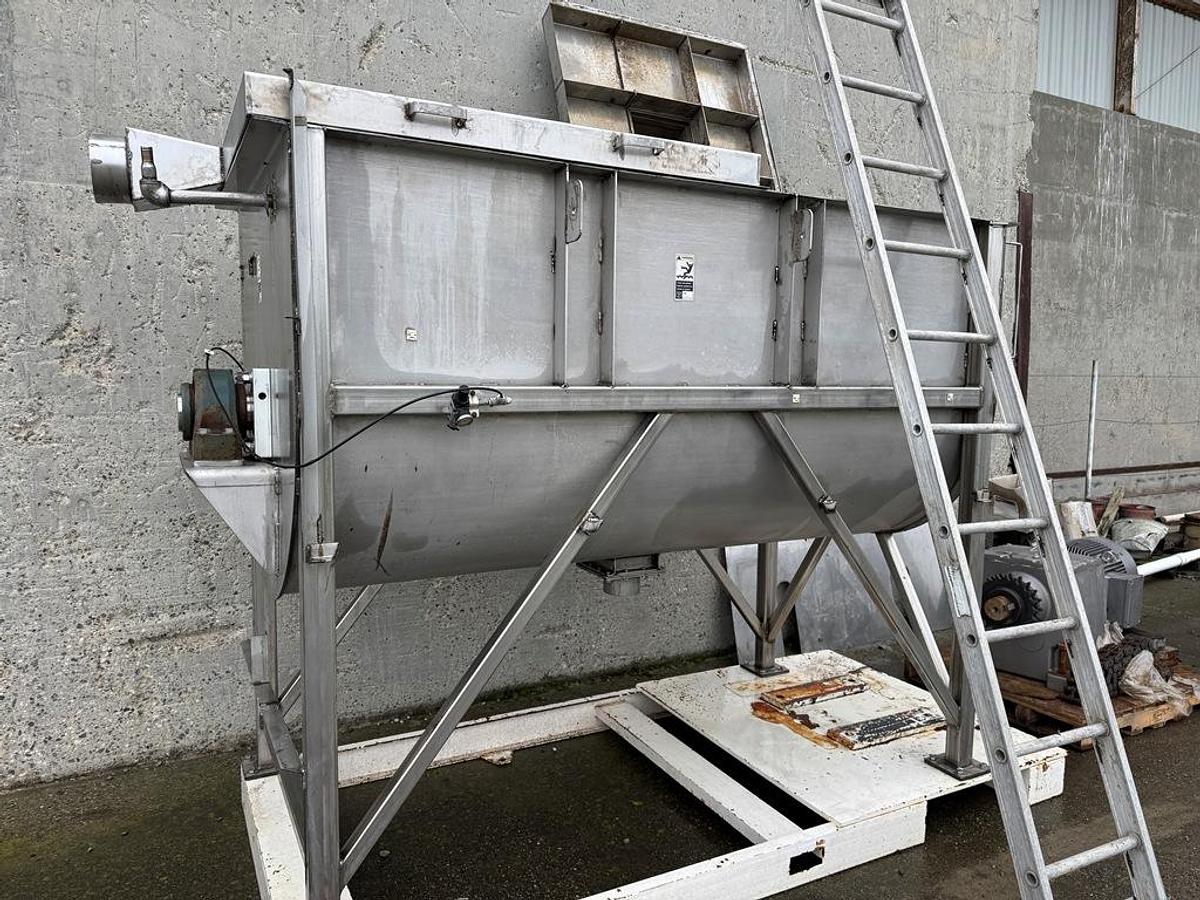

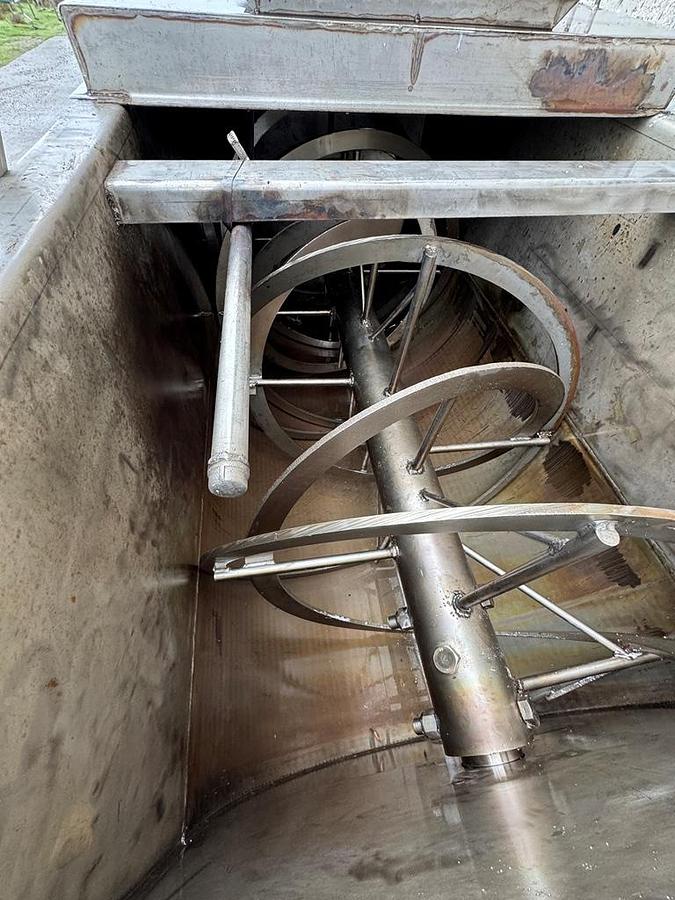

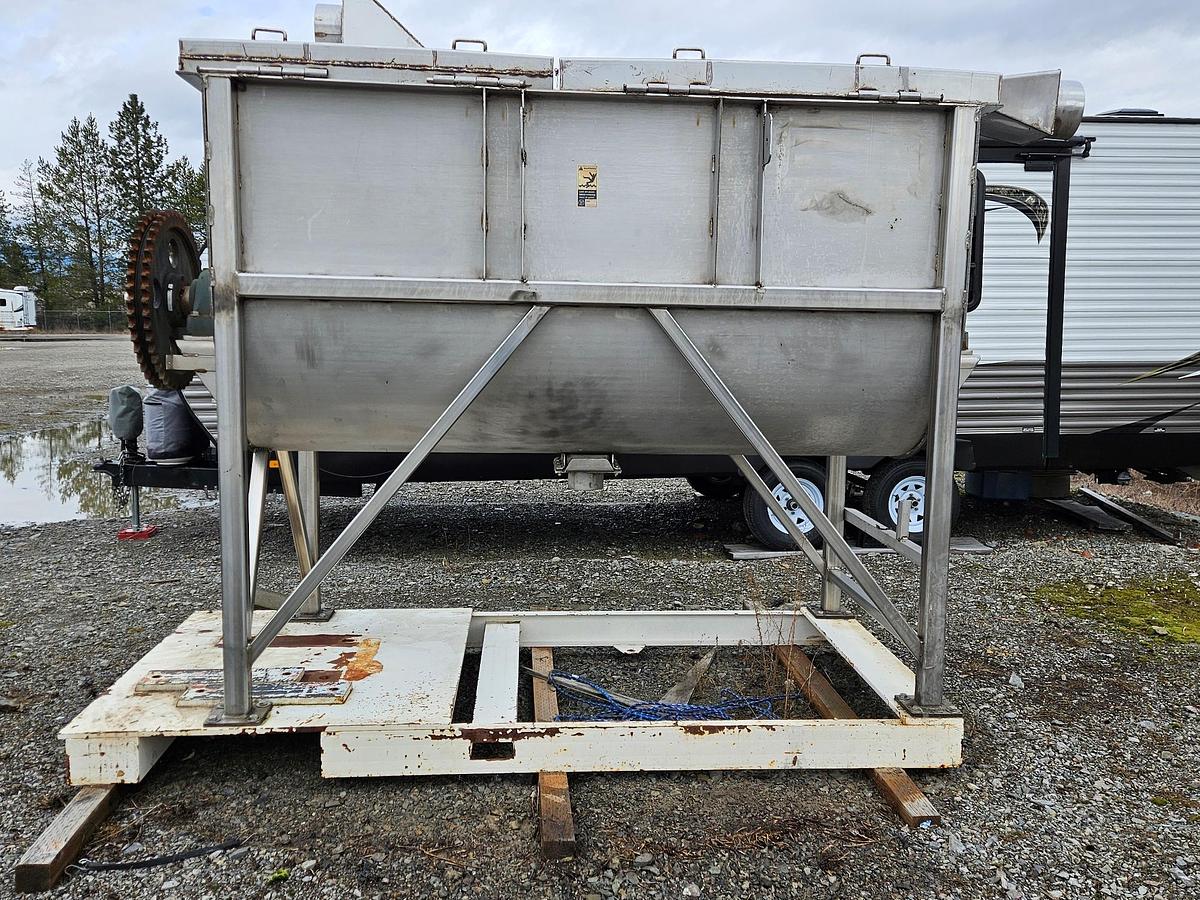

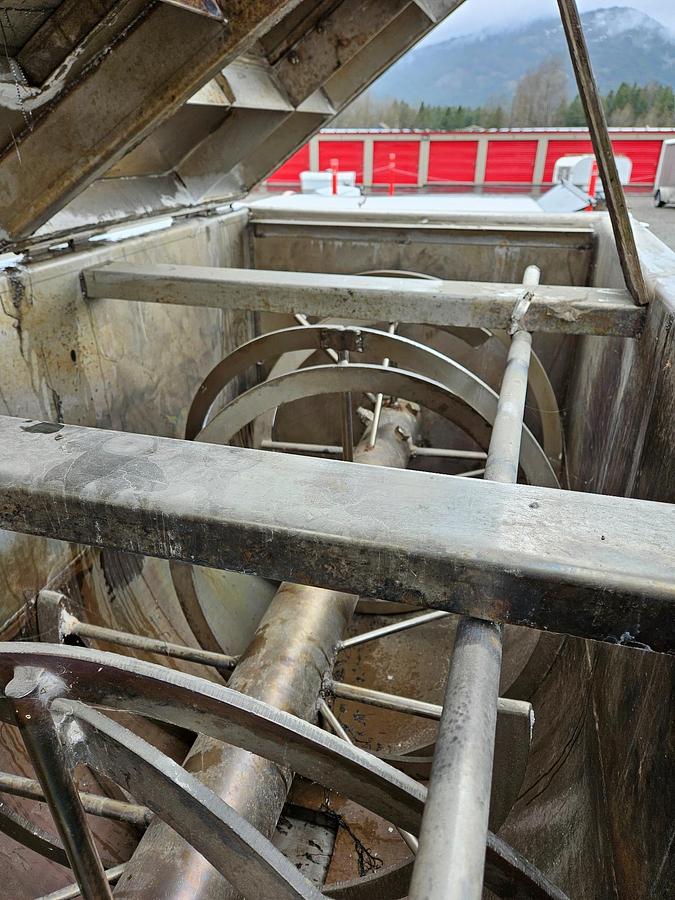

316 Stainless Steel 90 cubic foot ribbon mixer, manufactured by Austin Mac Inc in 2005. Fabricated from 1/4" 316L stainless steel with 3/8" stainless end plates and a 96" long trough. Features a double ribbon agitator mounted on a 6" SCH 80 316L SS pipe, with 42" OD x 24" pitch outer ribbon flights and 35" OD x 24" pitch inner flights. Equipped with 3" diameter 316 SS shafts, turned to 2-15/16" through 3 15/16" expansion and non-expansion pillow block bearings. Includes a 6" center discharge with hand-operated slide gate. Frame is constructed from 3" x 3" x 7-gauge square tubing with 7" x 7" x 1/2" thick support pads. Mixer drive and cover to be supplied by customer. All fasteners are stainless steel. Designed for dry blending applications such as granular fertilizer, powders, or similar bulk solids.
Specifications
| Stock Number | 5991352 |
| Manufacturer | Austin Mac Inc |
| Model | 90CF |
| Year | 2005 |
| Cubic Feet | 90 |
| Trough Dimensions | 3 1/2' wide x 96" long |

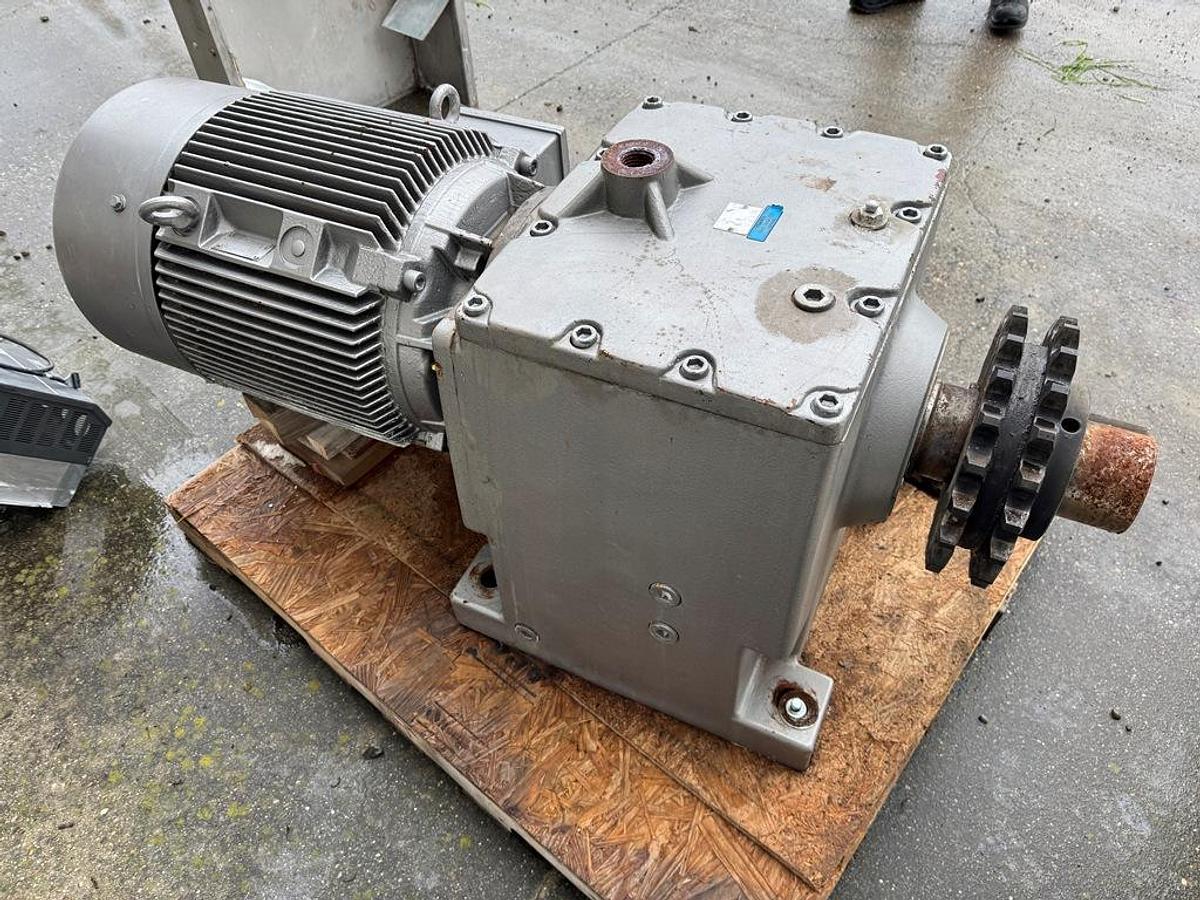

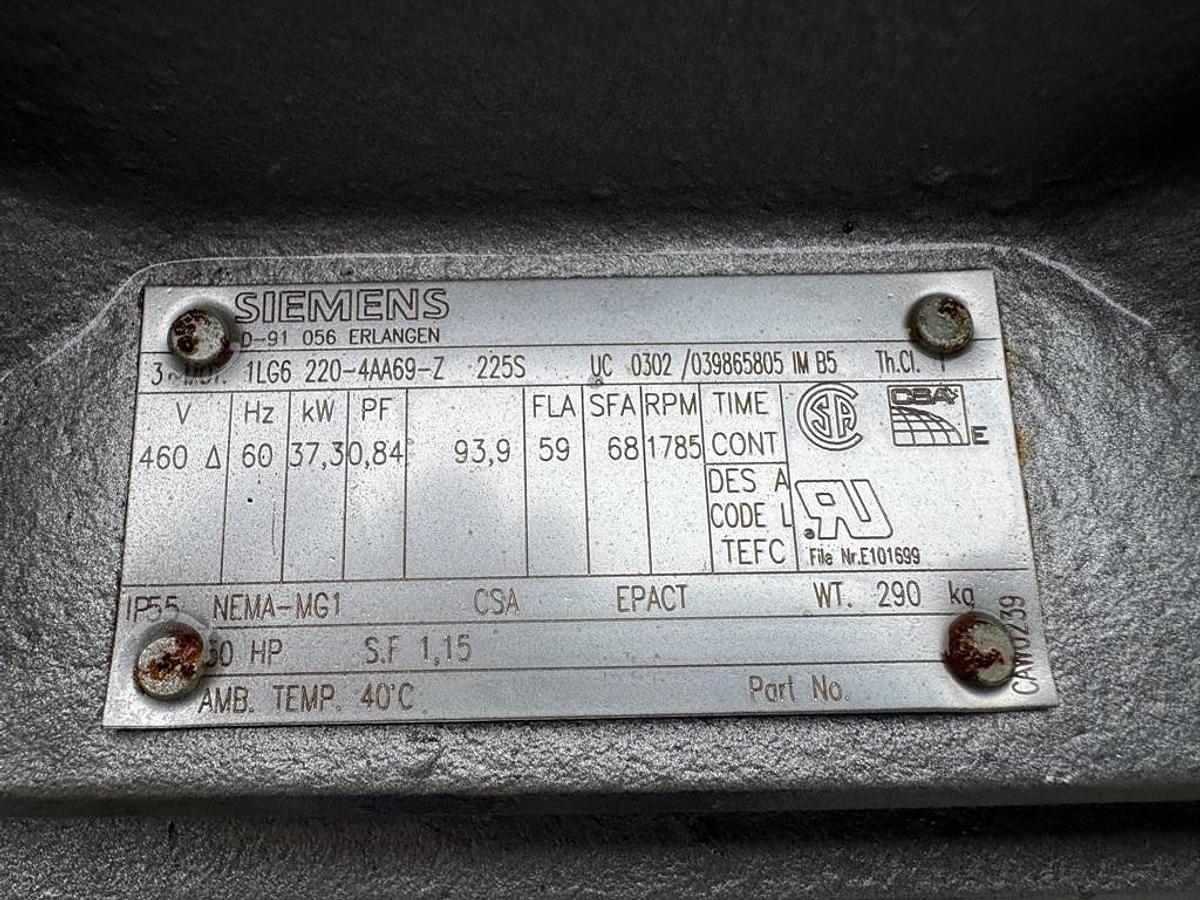

| HP | 50 HP (37 kW) |
| Agitator Type | Double Ribbon |
| Shaft Pipe | 6" SCH 80, 316L Stainless Steel |

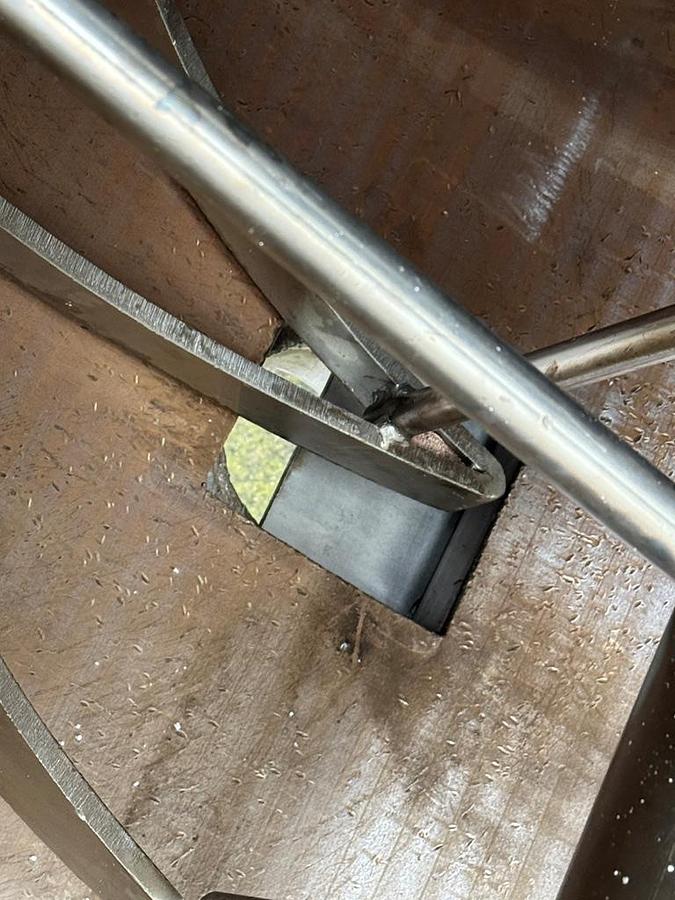

| Discharge | 6" center with slide gate |
| Basis | FOB |
Additional Information
Fabricated by Austin Mac Inc., this 90 CF stainless steel ribbon mixer is engineered for thorough blending of dry bulk materials including granular fertilizer, powders, and chemical products. Constructed entirely of 316L stainless steel, it features dual ribbon agitators designed for uniform mixing and durability in abrasive environments. The center discharge with slide gate allows for controlled unloading, and the robust frame provides stability for industrial use. Commonly used in food, chemical, agricultural, and general industrial processing applications. Mixer is supplied without a motor or cover, allowing the end user to integrate it into custom systems.
