Filter, Carbon Bed, 196 CF, 75 PSI, Carbon Steel, Tetrasolv, #5991354
Filter, Carbon Bed, 196 CF, 75 PSI, Carbon Steel, Tetrasolv, #5991354
Location:Canada
Available quantity:1
Description

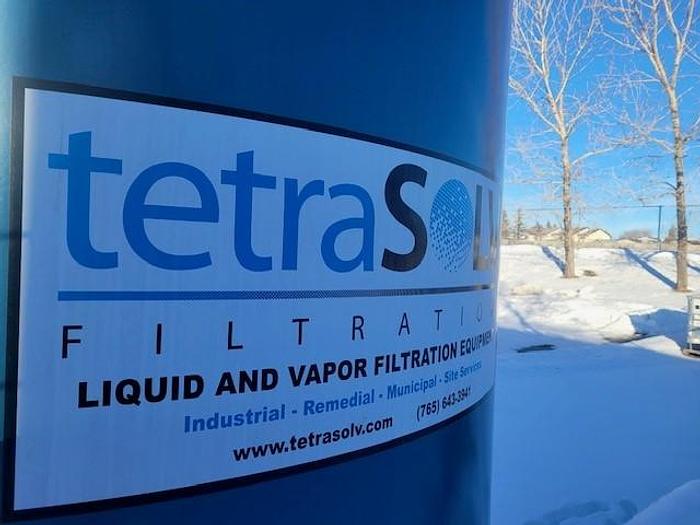

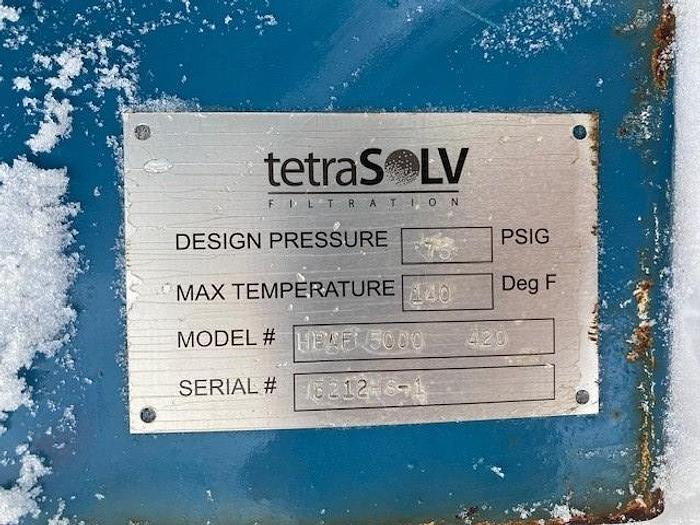

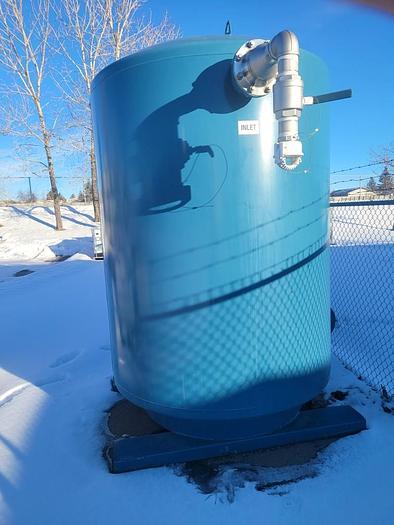

Tetrasolv Model HPAF-5000 aqueous phase filter system with a total media volume of 196 cubic feet (≈1,465 gallons). Constructed of carbon steel and internally lined with Sherplate 600 (NSF Approved) for chemical resistance. Features 304 stainless steel bottom underdrain and upper distributor header, 14" x 18" top manway, neoprene gaskets, and 4" service inlet/outlet laterals. Designed for use with up to 5,000 pounds of activated carbon and capable of flow rates up to 165 GPM. Rated for operation up to 75 PSI and 150°F. Operating weight approx. 17,900 lbs.
Specifications
| Stock Number | 5991354 |
| Manufacturer | Tetrasolv |
| Model | 5212-S-1 |
| Serial Number | 5212-S-1 |
| Capacity | 196 Cubic Feet |
| Media Capacity | 5,000 lbs. Activated Carbon |
| Lining | Sherplate 600 (NSF Approved) |
| Flowrate | 165 GPM |
| Maximum Pressure | 75 PSI |
| Previous Use | Water Treatment |
| Basis | FOB |
Additional Information
Manufactured by Tetrasolv, a U.S.-based specialist in engineered filtration systems. The HPAF-5000 single-bed filter is ideal for treating contaminated groundwater or wastewater with high flow requirements. NSF-rated internal liner ensures safe handling of potable and process water, while the dual stainless steel distributor system ensures even media flow. Designed for long-term industrial service with activated carbon or ion exchange resins in municipal, chemical, or environmental remediation sectors.
