Conveyor, Belt, 12" X 27', Flour Handling System TestConveyor, Belt, 12" X 27', Flour Handling System Test #S227440

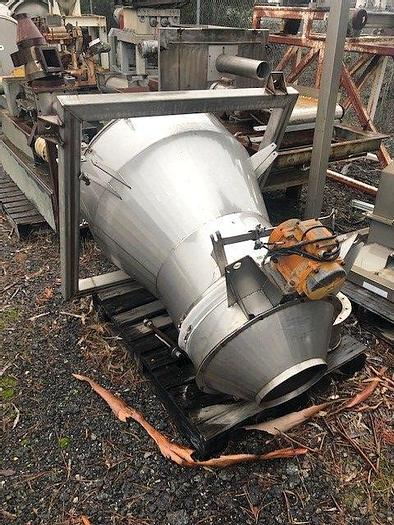

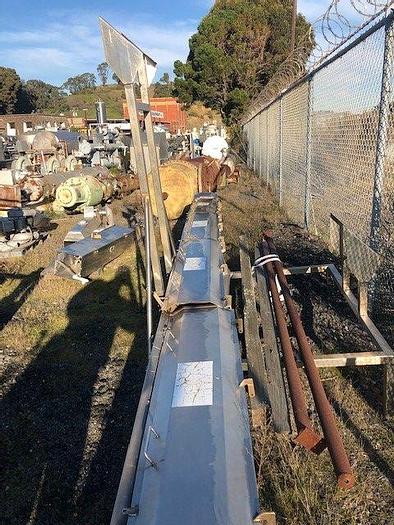

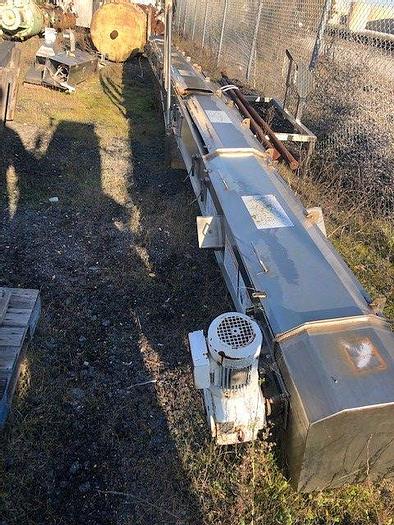

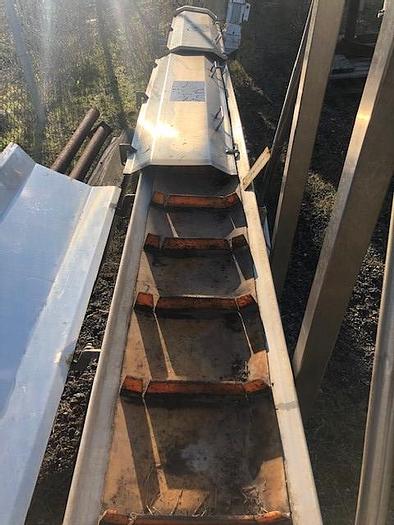

Flour handling system, Peabody with 20 cubic feet Spiroflow feed bin with (4) pneumatic rams (1" diameter x 10" travel) with 4" x 20" paddles to position and empty flour bags. Feed bin on (4) 7' tall legs. Feed bin feeds 12" wide x 27' long American Process Systems cleated belt conveyor. Conveyor driven by 3/4 Hp gearhead motor. Conveyor has 3" high cleats. Conveyor feeds 40 cubic feet solids flow live bottom discharge bin with 24" diameter live bottom with weigh cell. All sanitary stainless steel construction Test
