Dust Collector, Baghouse, 975 SF, 8,000 CFM, MikroPul, XP,Dust Collector, Baghouse, 975 SF, 8,000 CFM, MikroPul, XP, #S742031

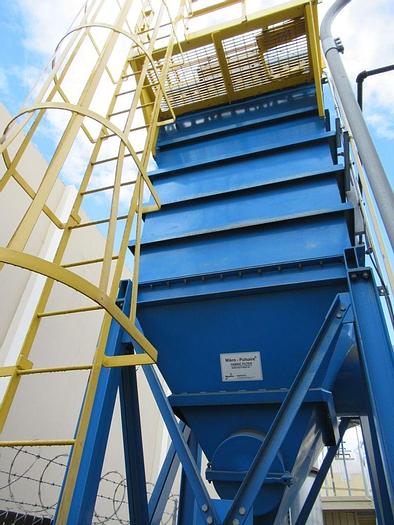

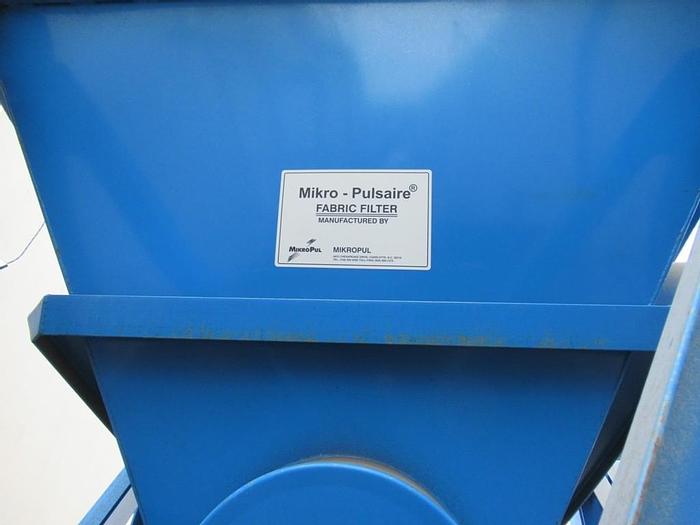

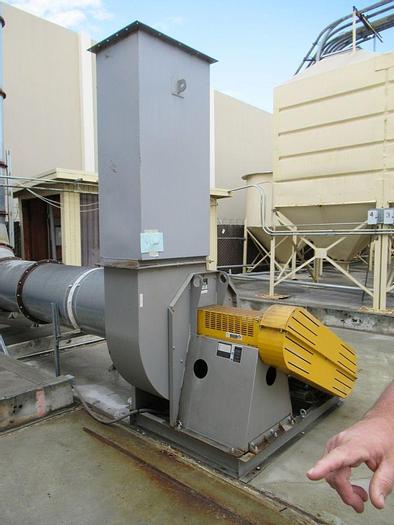

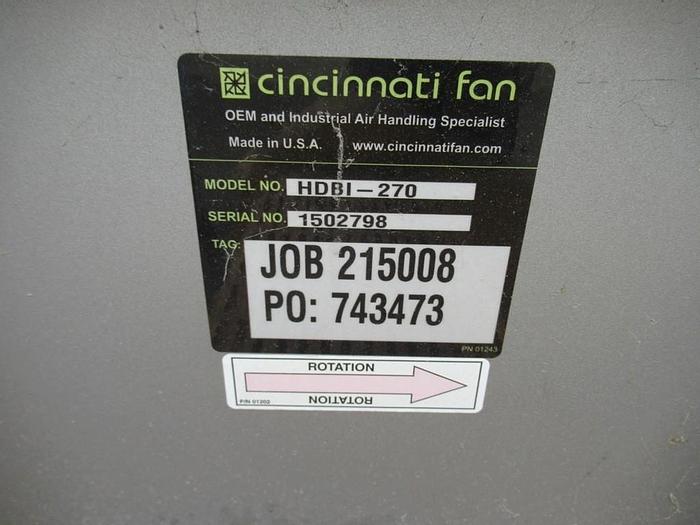

Mikro-Pulsaire baghouse dust collector, Fabric Filter, model number 100S-8-20 TR, rated for 975 sq. ft. surface area 8,000 CFM design air flow, previously used on whole wheat flour. Baghouse includes explosion protection system with (2) Fike 24" x 36" explosion vents and Nederman Type CARZ ATEX EIF 20" FL explosion isolation valve. Includes (100) 4.5" x 8' long polyester felt bags with steel cages. Offered with Cincinnati model HDBI-270 fan package, serial number 1502798, driven by 40 HP, 230/460V, 1775 RPM, 6/60Hz motor. Baghouse includes 8" diameter rotary airlock valve at discharge, automatic self cleaning pulse jet system and MikroPulse 100T 10-position continuous timer control. Structural design is Zone 2A Seismic (UBC), 90 MPH Wind, 40 PSF Snow Load (IBC). Complete with OSHA compliant ladder from bottom of legs to service area. Spare bags and cages included. Serial# 215008H1. New in 2015. Very good condition.
